In this research, multiple commercially available copper (Cu) nanoparticle conductive inks have been investigated, both as received and in modified form, for future flexible printed electronic device fabrication and its applications. This work reports the characterization and fabrication of the inkjet printed flexible Cu electrodes. Different fluid properties such as viscosity, surface tension, particle size measurement, and pH values were investigated along with their temperature dependance. Three commercial formulations, Ink 1: DM-CUI-5002 (Dycotec Materials Ltd. UK), Ink 2: Metalon® CI-004 (NovaCentrix, USA), Ink 3: Metalon® CI-005 (NovaCentrix, USA), and a fourth custom diluted version of the Dycotec ink (Ink 4) were investigated. The mean particle sizes of the different Cu nanoparticle inks are 56.2 nm for Ink 1/ Ink 4, 8.62 nm for Ink 2, and 11.5 nm for Ink 3. The viscosities at 25°C for Inks 1 through 4 are 17.14, 31.30, 13.52, and 15.02 cPs, respectively. The resistivity obtained for each nanoparticle ink (Ink 1-4) varied from 1.01× Ω/cm to 2.31× Ω/cm. Different fluid properties of the nanoparticle inks have been investigated and optimized for inkjet printing using Fujifilm Dimatix Materials Printer - DMP 2850. All the jetting recipes are developed based on both legacy printheads and recently launched (2021) Samba G3L printheads. This new printhead requires a lower ink viscosity which potentially renders all commercially available Cu inks unsuitable for use without modification. Hence, the optimized diluted Dycotec Cu ink has been modified with diethylene glycol monoethyl ether (5:1) to achieve the viscosity within the range of Samba G3L operating parameters. Inkjet printing parameters varied based on different printheads and formulations of inks i.e. platen temperature for both printheads were chosen as 35°C, cartridge temperature varied from 40 - 50°C, jetting voltage ranged from 28 to 35 V, jetting frequency and meniscus set point for legacy and Samba printheads were chosen as 5 kHz and 0.5 as well as 3.5 kHz and 5 respectively. The drop spacing used for printing different patterns with both print heads and all the types of Cu inks was chosen as 15 mm (1693.3 DPI) to ensure 70% overlapping of the two adjacent ink droplets. Polyimide has been chosen as a printing substrate as it offers excellent adhesion characteristic, mechanical stability, and flexibility over a wide range of temperature i.e., -269 °C to 400 °C. The optimization of the sintering process has also been investigated thoroughly. The required temperature to sinter the printed Cu films was settled at 300-400 °C. To remove oxidation 3% hydrogen gas in 97% argon was flowed in the vacuum chamber with ~4 Torr. Electrochemical impedance spectroscopy (EIS) measurement was performed for the inkjet printed Cu electrodes to evaluate their performance in terms of impedance. This process was performed using phosphate buffer saline with pH 7.43. The EIS was performed for two different designs (plain and interdigitated electrodes) for the chosen (based on their compatibility with Samba G3L printheads – DMP 2850) ink solutions (Ink 2 – plain: 575 Ω &amp; interdigitated: 400 Ω and Ink 4 – plain: 418 Ω &amp; interdigitated: 380 Ω). Based on our experiments/investigation (fluid properties) and reported optimized inkjet printing parameters (waveforms, platen temperature, and cartridge temperature), this research indicates the potential viability of utilizing commercially available Cu ink – Ink 3 for printing flexible electronics with both legacy and newly commercialized Samba G3L printheads. However, Ink 4 showed excellent performance with the lowest impedance (resistivity and EIS) making it a promising formulation for flexible inkjet printed Cu electronics. Honeywell Federal Manufacturing and Technologies, LLC operates the Kansas City National Security Campus for the United States Department of Energy / National Nuclear Security Administration under Contract Number DE-NA0002839.

EMC 2023

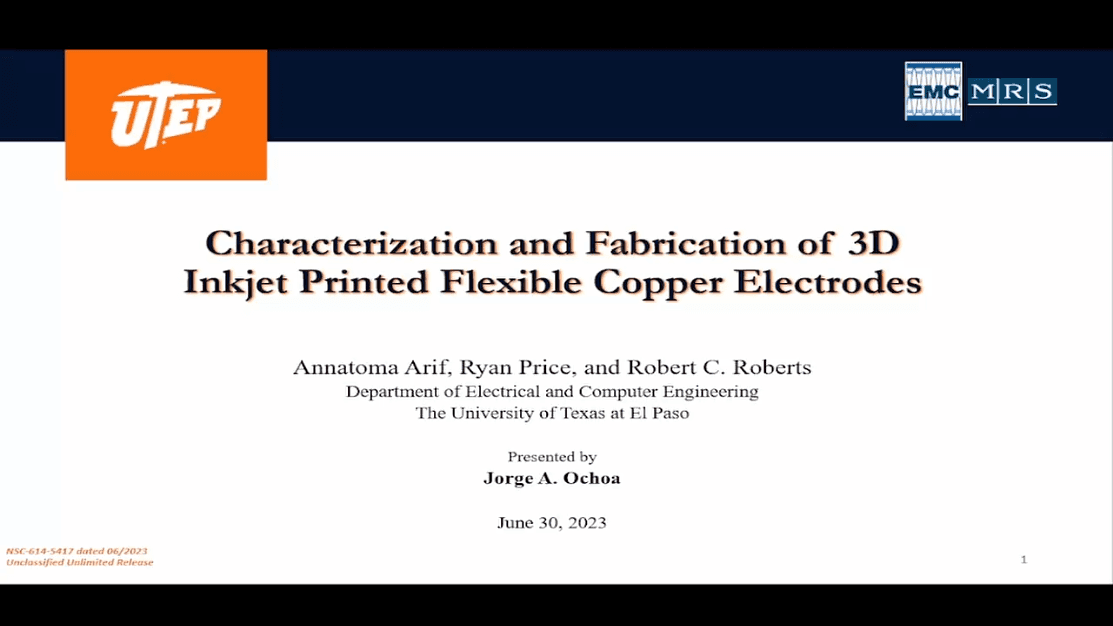

Characterization and Fabrication of 3D Inkjet Printed Flexible Copper Electrodes
