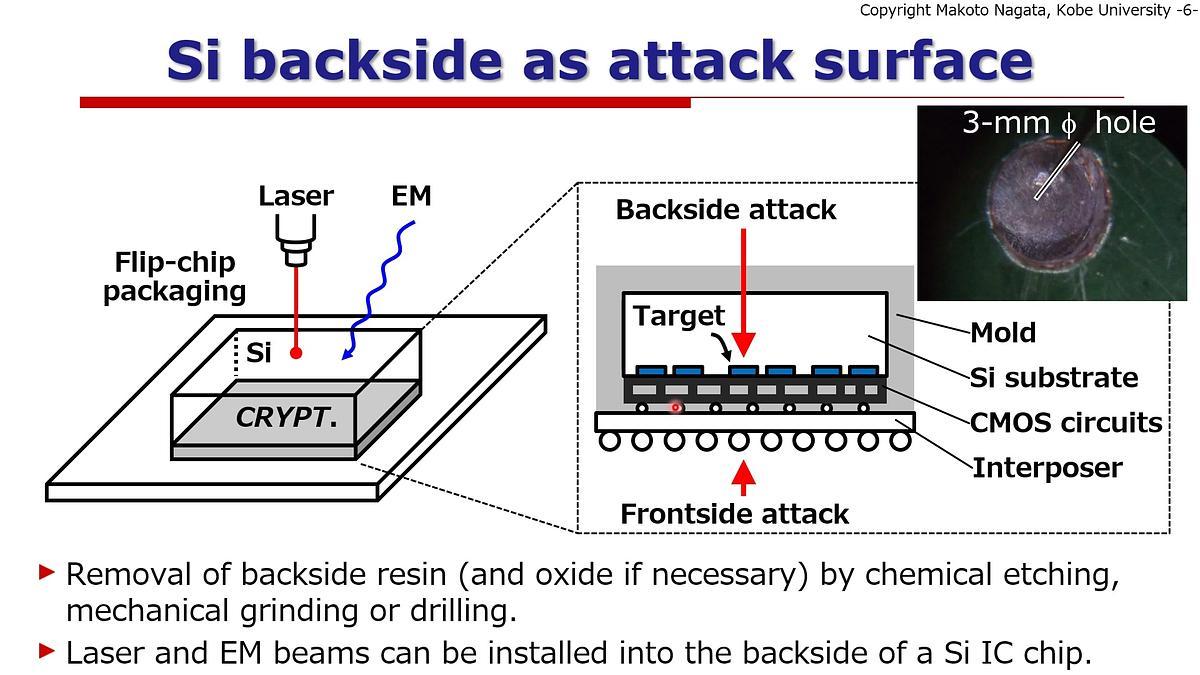

Fault injections and attacks on an integrated circuit (IC) chip using a variety of physical measures are reviewed. Laser fault injection (LFI) is highlighted for the essential vulnerability on the backside of an IC chip in flip-chip packaging. On-chip voltage waveform monitoring characterizes the voltage peaks induced by LFI and establishes the detection scheme against LFI attacks. The backside buried metal (BBM) technique is deployed by preventive measures for shielding from laser exposure, for avoidance and also waring of invasive laser attacks. The alleviation of backside LFI is proven by Si experiments with on-chip waveform monitoring.

IRPS 2022 Main Conference

Exploring Fault Injection Attack Resilience of Secure IC Chips

tamper detection

ring-oscillator

integrated circuit reliability

hot carrier injection (hci)

bias temperature instabilities (bti)

array chip

#### Welcome to the 60th IEEE International Reliability Physics Symposium (IRPS)!

[![](https://assets.underline.io/uploads/markdown_image/1/image/f6b8cf9ecca2209dd3e0fcebe80a2915.png)](https://underline.io/events/282/reception) [![](https://assets.underline.io/uploads/markdown_image/1/image/e787ff477f8d2b687fb0b54d83d35e11.png)](https://drive.google.com/drive/folders/1GAycr7pPrZG2ZzZP-geUL8vGWswjCB1N?usp=sharing) [![](https://assets.underline.io/uploads/markdown_image/1/image/7492fafcc0c623afe96fe15207855ed9.png)](https://www.irps.org/)


**General Chair Welcome Message**

Welcome to IRPS 2022! When the IRPS Management Committee began making plans for Dallas, we recognized the strong desire by the reliability physics community to return to a face-to-face symposium that we last had in Monterey in 2019. But as time progressed, we recognized that travel restrictions were not being lifted as rapidly as we anticipated. Rather than leave out those of you who could not attend in person, we adopted a hybrid format allowing for both remote attendance and remote presentations. This is a first for IRPS and I am confident it will be a success for all.

With this new hybrid format, the symposium will return to the original five-day format with Tutorials and Year in Review on the first two days. The Technical Program, Keynote Talks, Workshops and Poster session will be held on the following three days. All of these (except Workshops and Posters) will be available via real-time streaming in the US Central Time zone with virtual attendees having Q&A access to the presenters. For those virtual attendees who cannot watch the live presentations, the material will be available on demand to all attendees for a month after the symposium with the ability to communicate with the authors.

In 2020, we were planning on co-hosting the International ESD Workshop (IEW) ESD workshop when the COVID-19 pandemic hit. For 2022, IEW will be seamlessly embedded into the IRPS Program and will sponsor three tutorials, an invited talk, two technical sessions and two evening workshops focused on ESD and latch-up. And we continue our
collaboration with our sister conference, European Symposium on Reliability of Electron Devices Failure Physics and Analysis (ESREF) by hosting their Best Paper and the International Integrated Reliability Workshop (IIRW) by hosting their Best Student Paper.

Our primary objective is to maintain the symposium’s leadership role in the reliability physics of microelectronic devices by attracting leading researchers to present their work and providing attendees the best place to access this information. With all the buzz in the media about whether Moore’s Law has hit its limit, IRPS has been promoting expertise developed in silicon-based reliability over the past sixty years and expanding into new material areas. This year, eight of the technical sessions are devoted to reliability in topics outside of traditional silicon, including wide bandgap GaN/SiC, emerging memory and neuromorphic computing. I hope our ability to draw these communities together will accelerate the cross-fertilization of ideas.

The Technical Program consists of four keynote speakers, twenty-three invited speakers and eighty-seven oral presentations organized in thirty technical sessions on eighteen reliability topics. Over two evenings, there will be ten Workshops and sixty-six Poster presentations that are designed to allow in person attendees and experts to interact
with one another. With eighteen tutorials covering topics ranging from fundamental transistor and memory reliability all the way up to automotive and complex system-level reliability, this year’s symposium provides an excellent learning opportunity for engineers and scientists new to reliability as well as experienced individuals wanting to explore new
areas. The Year in Review, which serves as a summary of research in the past year, will cover 3D packaging, emerging memory and aging aware circuit designs.

Finally, I would like to express my extreme gratitude to our patrons and exhibitors, whose support makes IRPS possible.
And to all of you, our in person and virtual attendees, for supporting this symposium for sixty years!

**Charles W. Slayman, General Chair**
**of 2022 IRPS Management Committee**

**About IRPS**

The IEEE International Reliability Physics Symposium (IRPS) is the premiere conference for engineers and scientists to present new and original work in the area of microelectronics reliability. Drawing participants from the United States, Europe, Asia, and all parts of the world, IRPS seeks to understand the reliability of semiconductor devices, integrated circuits, and microelectronic assemblies through an improved understanding of both the physics of failure as well as the application environment. IRPS provides numerous opportunities for attendees to increase their knowledge and understanding of all aspects of microelectronics reliability, and to meet and network with reliability colleagues from around the world.

Please log in to explore this event. You need to log in with the email address you registered with. Access credentials have been sent to your email.

Please log in to explore this event.

Registration for this conference has now closed. We appreciate your interest and hope to welcome you at a future event. If you’d like to hear about similar upcoming events, please check our website or join our mailing list.

Registration for this conference has now closed.

IRPS provides numerous opportunities for attendees to increase their knowledge and understanding of all aspects of microelectronics reliability. It is also an outstanding chance to meet and network with reliability colleagues from around the world.

technical paper

We propose a novel method of predicting electron and hole lateral diffusion in a charge trapping layer of 3D TLC NAND by which we can estimate the long-term lateral migration (LM) behavior in a short time. By monitoring the threshold voltage change (△Vth) of the select cell under various bias and temperature conditions, we observe that electron and hole lateral diffusivity matches well with the Poole-Frenkel (PF) model. The lateral diffusivity is extracted by measuring △Vth when the electrons and holes of neighboring cells reach the selected cell.

Electric Field Impact on Lateral Charge Diffusivity in Charge Trapping 3D NAND Flash Memory

Temperature-accelerated methods are generally used for lifetime evaluations in Flash memories products. However, in this article, an anomalous negative temperature dependence of erase-state threshold voltage (Vt) retention gain in post program/erase (P/E) cycled 3-D NAND Flash memories is reported for the first time, which would lead to a methodological problem of the conventional temperature-accelerated life-test approach. Based on our experiment results, the phenomenon is realized due to the combination of two physical mechanisms. Erase Vt gain at lower temperatures is mainly attributed to silicon nitride (SiN) trapped hole vertical loss via oxide trapped charges created by high P/E cycling stress. At higher bake temperatures, the influence of oxide trapped electron detrapping process is enhanced and Vt gain is therefore reduced. By performing a special experiment, the activation energy of the trapped electron detrapping process is extracted.

An Abnormal Negative Temperature Dependence of Erase-state Vt Retention Shift in 3-D NAND Flash Memories

New multi-layer ALD HfO2/Al2O3/HfO2
laminate film with a capacitance density 8.3 fF/um2 is evaluated in a MIM capacitor, in 65nm node process, for emerging applications in the automotive space which require higher use voltage and temperature than CMOS logic and DRAM applications. Apart from the typical considerations such as leakage current, capacitance linearity etc. the dielectric relaxation current behavior is also studied. We have performed a thorough reliability study on these films and demonstrate that they meet the stringent requirements for automotive safety applications.

High-k MIM dielectric reliability study in 65nm node

Simulations based on first-principle modeling of material structural features determining electrical properties of a CNT memory cell allow to identify a range of operation conditions delivering desirable device characteristics. This approach designates the path for optimization of the CNT memory device structure to meet the performance requirements.

Combining measurements and modeling/simulations analysis to assess carbon nanotube memory cell characteristics

This paper studies the use of 1-selector-1-resistor (1S1R) devices as the cross-point components in a crossbar array for deep neural network (DNN) training. Two training algorithms—minibatch gradient descent (MBGD) and a low-rank approximation to MBGD—are evaluated with compact models of ovonic threshold switching (OTS) selectors considering several reliability issues, and resistive random-access memory (ReRAM), a type of emerging non-volatile memory (NVM) device. We explore various reliability concerns of the OTS selectors including the low on-state conductance, threshold voltage variation, and internal voltage offset, etc. and propose corresponding techniques to overcome the reliability challenges.

Effect of OTS Selector Reliabilities on NVM Crossbar-based Neuromorphic Training

In this paper, the long term data retention characteristics consisting of three main charge loss mechanisms, detrap, trap-assisted tunneling (TAT), and lateral migration (LM), are investigated in charge trap (CT) 3D NAND flash memory. Three mechanisms were completely separated through experiment design, and each activation energy (Ea) was extracted with Arrhenius model well. The detrap mechanism shows the largest Ea, followed by LM and TAT mechanisms. It is interesting that the contribution rate (CR) of each mechanism is related to time-constant (t) in the early part of bake time, and depends on the final charge loss in the latter part of bake time. It is inferred that the retention bottleneck is low program level state at high temperature and is high program level state at low temperature. TAT mechanism dominates the final charge loss regardless of temperature region and program level state. In addition, an effective method is proposed to suppress the LM effect.



Investigation of Retention Characteristics in a Triple-level Charge Trap 3D NAND Flash Memory

This work shows that the complex dynamic-RON characteristics observed for highly scaled HEMT devices results from the similar capture/emission activation energies of the defects present in different epitaxial layers. This work also (i) presents an optimized experimental scheme for a detailed analysis of the different charge-trapping mechanisms in GaN-on-Si HEMTs, (ii) describes the charge-trapping kinetics over a wide range of temperatures using capture/emission time (CET) maps, and (iii) models the defect energy distribution in the AlGaN barrier by analytically deriving the 2D potential profile in the access region and combining it with the results from CET maps.

Interpretation and modelling of dynamic-RON kinetics in GaN-on-Si HEMTs for mmWave applications

Scaled (LG = 0.1 μm) GaN HEMT technology is currently pursued for high-frequency applications (such as 5G), requiring high current/speed and blocking capability. However, traps introduced with intentional Fe doping yield time-dependent breakdown voltage (VBR), seriously affecting reliability. Here, we investigate the role of Fe traps by pulsed I-V characterization performed at different pulse durations (TOFF). A TOFF-dependent VBR is observed on tested devices and is ascribed to the time-dependent occupancy of deep acceptors in the buffer layer. More specifically, the decrease in VBR for short pulses is attributed to the increased leakage due to the reduced ionization of Fe-traps. This interpretation is supported by 2D numerical simulations.

Fe-Traps Influence on Time dependent Breakdown Voltage in 0.1 µm GaN HEMTs for 5G applications

Owing to its high power, high efficiency, high gain and high frequency capabilities RF-GaN technology has not only dominated satellite, aerospace and telecom industry but also been tapped as the most promising candidate for 5G technology extension to millimeter wave (MMW) applications. Excellent device performances with output power density (Pout) exceeding 3 W/mm and peak power added efficiency (PAE) above 35 % have been demonstrated by Wolfspeed's 5G-MMW capable 28 V, 150-nm gate length (V5) GaN on SiC technology. In this work we show the comprehensive DC (both on and off state) and RF reliability assessment and lifetime projection (both DC and RF) of such MMW capable 28 V rated 150-nm gate length process technology (G28V5). The on-state and off-state results coupled with the reliability without hermiticity (RWOH) capability and intrinsic reliability assessment up to 31.5 GHz demonstrate the maturity and reliability of V5 technology as a true candidate for MMW applications.

DC & RF Reliability Assessment of 5G/mmW capable GaN HEMT Process

The sub-THz spectrum between 100GHz and 300GHz is of great interest for achieving next generation 6G cellular network goals of ultra-high data rate, ultra-low latency and high sensing precision. Carrier frequencies &gt;100GHz create significant challenges, including higher losses, lower semiconductor device performance, and a smaller per element physical area that constrains circuit size, integration, power and thermal management. Semiconductor technologies with transistor performance &gt;500GHz are needed for improved efficiency, gain, noise and area at the front end of the 6G phased array radio. Advances in SiGe BiCMOS have the potential to increase silicon transistor performance while leveraging the cost and scale of mature high-volume silicon manufacturing for 6G sub-THz. Compound semiconductor technologies such as InP and GaN have the best front end performance at sub-THz. Advances in heterogeneous and monolithic integration with silicon are needed to address the cost and scale concerns of high frequency InP and GaN.  A comprehensive approach to reliability is essential in order to extract maximum performance without sacrificing reliability.
