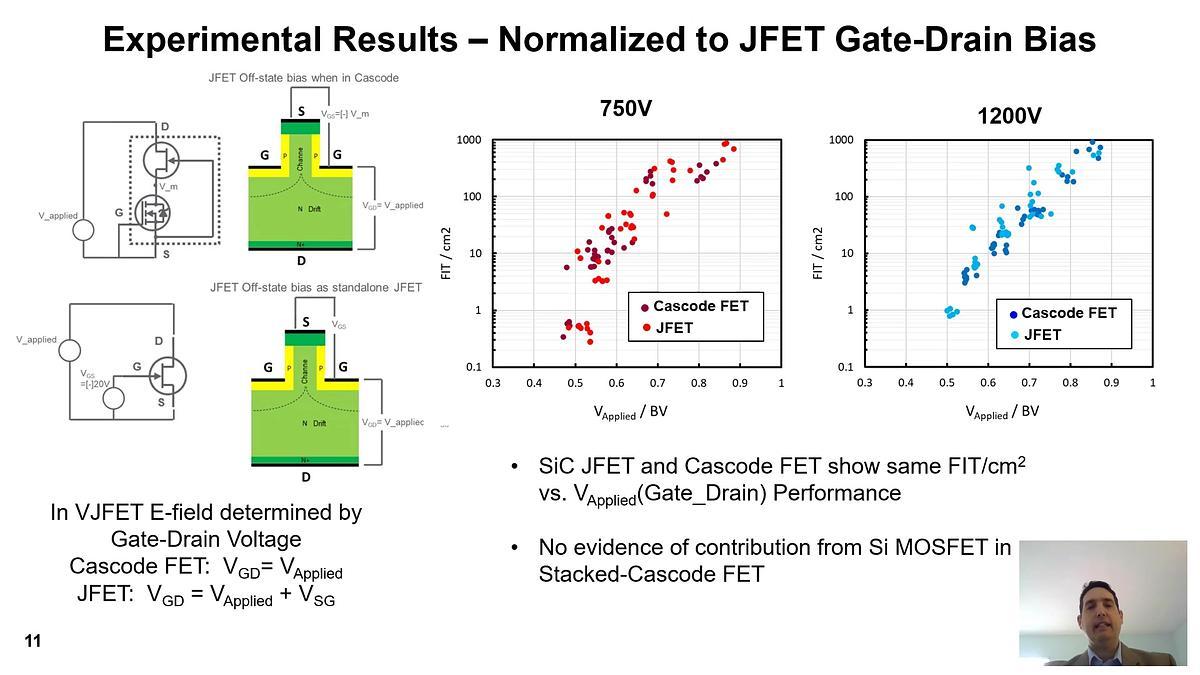

The terrestrial Neutron failure rate of SiC JFETs and JFET based Cascode FETs are investigated for the first time.  The contributions of the co-packaged low voltage Si MOSFETs within the Cascode FETs were found to be insignificant in the overall FIT of the high-voltage switches.  Meanwhile, the SiC JFET and resulting Cascode FETs were found to be comparable with the previously reported “Universal” behavior of SiC unipolar devices when analyzed as FIT/cm2 versus applied voltage when normalized to device breakdown voltage.  These results suggest that, due to their superior specific on-resistance (RDS,On x Active Area), SiC JFETs and Cascode FETs will offer lower terrestrial FIT for a given on-resistance.

IRPS 2022 Main Conference

Investigation of Terrestrial Neutron Induced Failure Rates in Silicon Carbide JFET Based Cascode FETs

terrestrial neutron

jfet
