This paper reports about 10kW-class 650V-rated GaN switches. GaN-on-Si HEMTs with maximum current of 780A and 33.2mm2 die area were fabricated by chip scaling and intrinsic device shrink which gave improved RON*A area figure of merit. Tight integration with a low-voltage Si MOSFET results in a cascode switch with a high threshold of 4V, stable dynamic on-resistance of 14 milliohms for up to 750V VDS and single-chip-like simplicity in TO-247 packages. Using a simple gate drive of 0-12V and drive current below 0.7A, the GaN FET exhibits faster switching and 2x lower switching losses than a competing SiC MOSFET. When tested in a 240V:400V half-bridge synchronous boost converter, it was possible to get 12kW output power with &gt;99% peak efficiency at 3kW.

IEEE WiPDA 2021

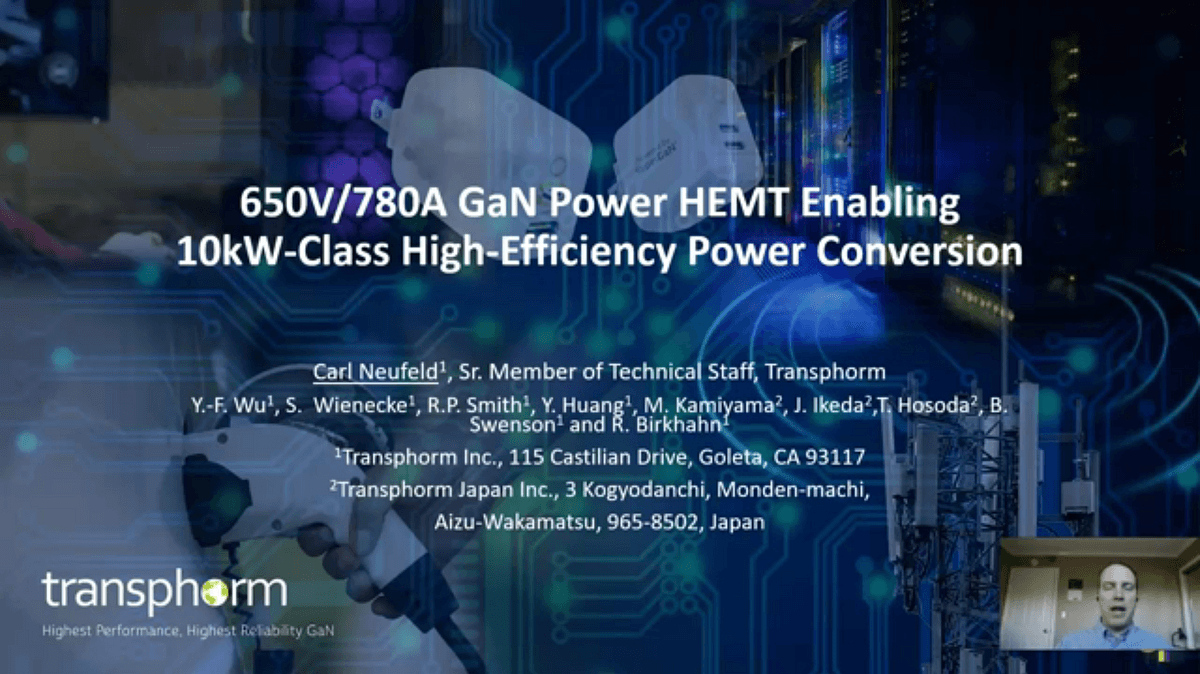

650V/780A GaN Power HEMT Enabling 10kW-Class High-efficiency Power Conversion
