The gate oxide reliability for commercial silicon carbide (SiC) power metal-oxide-semiconductor field-effect-transistors (MOSFETs) is significant for their applications. The constant-voltage time-dependent dielectric breakdown (TDDB)
measurement is commonly utilized to evaluate the dielectric failure time of the SiC power MOSFETs under normal operation. A charge-to-breakdown approach based on the oxide tunneling current behavior has been proposed recently for the projection of dielectric failure time. The method is less time-consuming but

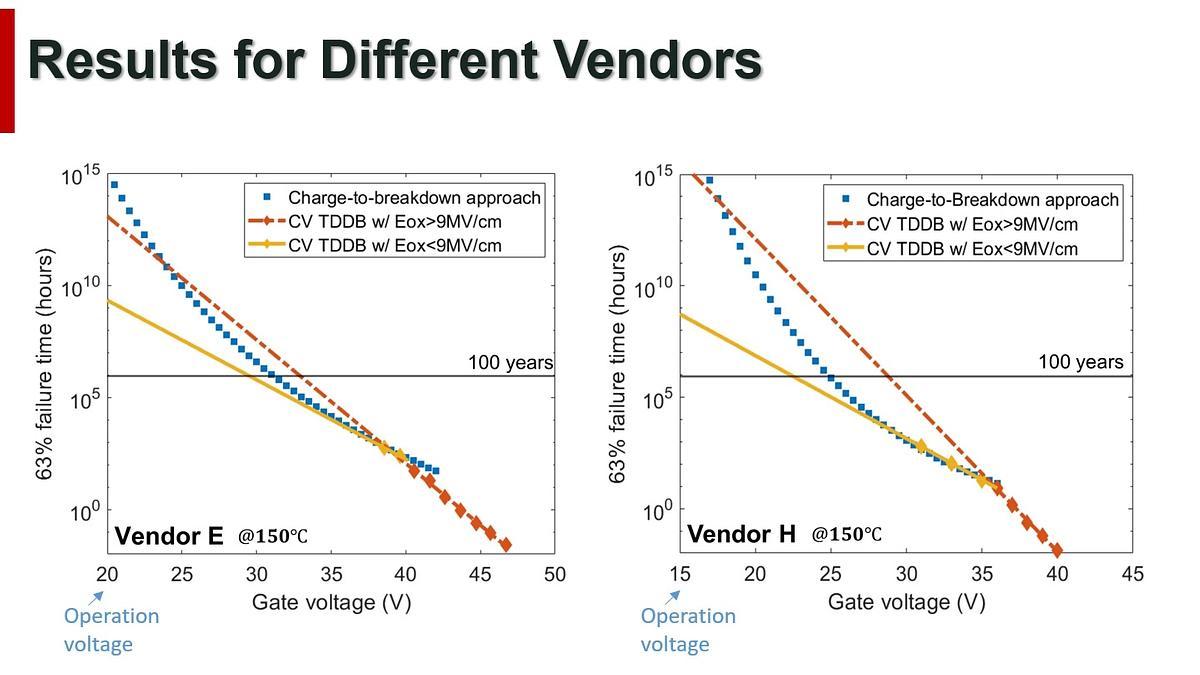

requires the oxide leakage current behavior of the devices to follow a universal envelope. This work compares the predicted failure times of commercial 1.2 kV SiC MOSFETs from the charge-to-breakdown approach and the constant-voltage TDDB
method. The results show that the constant-voltage TDDB method applied under low oxide fields (Eox &lt; 9MV/cm) produces the most conservative prediction of the device lifetime.
