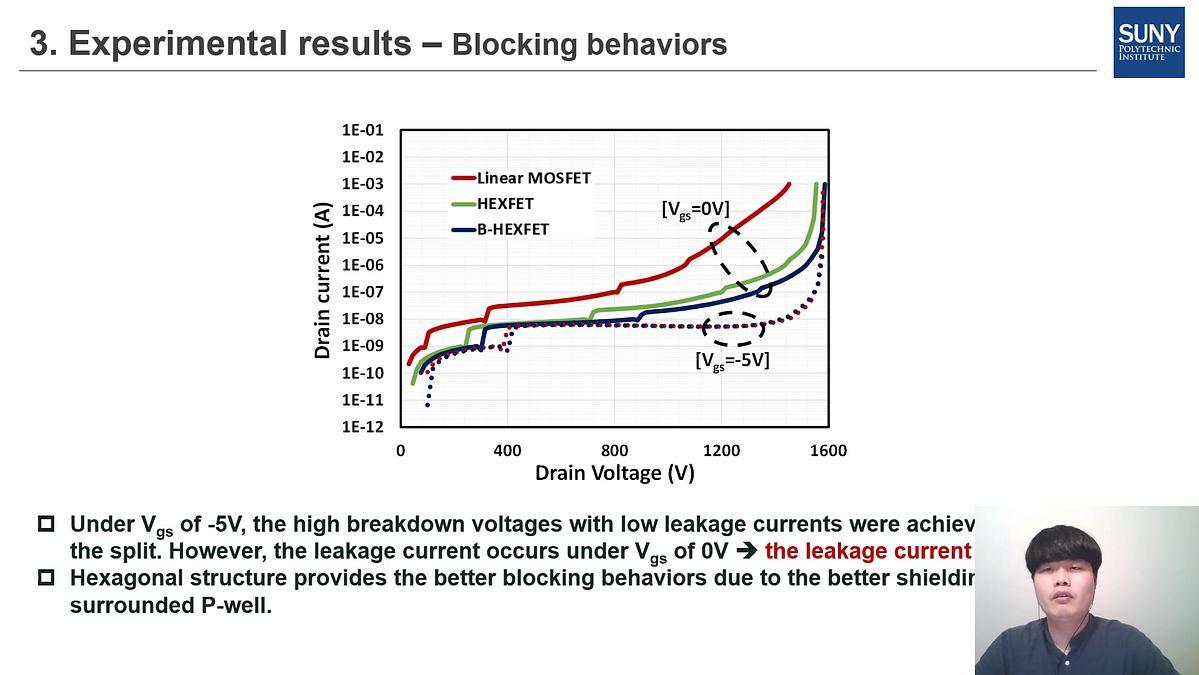

This paper reports the layout approaches and resulting static, dynamic, and short-circuit (SC) ruggedness characteristics of 1.2 kV power MOSFETs fabricated on a 6-inch 4H-SiC substrate. Different layout topologies (linear and hexagonal) and different design variations (with and without bridge of P-well) were investigated to study their effect. It was experimentally demonstrated that 1) the hexagonal layout topology enables a low specific on-resistance (Ron.sp), 2) the linear MOSFET can be utilized in high frequency applications due to fast switching speed, and 3) the hexagonal topology with bridge offers greater reliability and ruggedness.

IEEE WiPDA 2021

A Static, Switching, Short-circuit Characteristics of 1.2 kV 4H-SiC MOSFETs: Comparison between Linear and (Bridged) Hexagonal Topology
