This project focuses on robust gait development using reinforcement learning on a 18-DOF hexapod
platform. Each actuator is equipped with a control strategy that sums position, velocity, and effort PID
control to produce motor PWM output. Due to the underlying framework, low level access to the
actuators is limited and the interface for communication is in the form of position, velocity, and torque
joint commands. The goal of this project is to create a simulation environment that can be used to train
the hexapod to walk using a soft actor-critic policy with a custom reward function. Using existing joint
feedback data from an established gait, the simulation model is enhanced to include control gains,
positional joint limits, and torque limits. Once the simulation is deemed to be high-fidelity, the soft
actor-critic policy is used to train a forward-walking gait in simulation using a tuned reward function.
The model produced by this learning event can be analyzed to determine the effectiveness of this gait
based on certain criterion: forward velocity, lateral velocity error, stance height, and balance. If the
learned gait is categorized as viable based on the aforementioned criterion, the model is then tested on
the physical robot. The learned model produces joint level commands based on joint feedback received
from the actuators.
The challenge of breaking down the gap between the simulation and real environments is explored in
this presentation. The MuJoCo environment used for simulating the robot is limited in its capabilities
for modeling individual actuators. Rather than specifying function-based control schema, a user is
given the ability to modify damping, armature, friction, and joint limit parameters. Identifying the
appropriate simulation parameters required thorough analysis of the existing control scheme aboard the
physical robot and relating it to the tunable parameters within the simulation environment. This proved
difficult due to the complex dynamics of the 18-DOF system. After much trial and error, suitable
simulation environment parameters were identified and a learned model was produced that yielded a
forward gait. The current model produces a gait with forward velocity of ~0.7 m/s, but future work
includes tuning the reward function to derive a gait with lesser forward velocity due to instability found
in testing on the physical robot.

NAML 2024

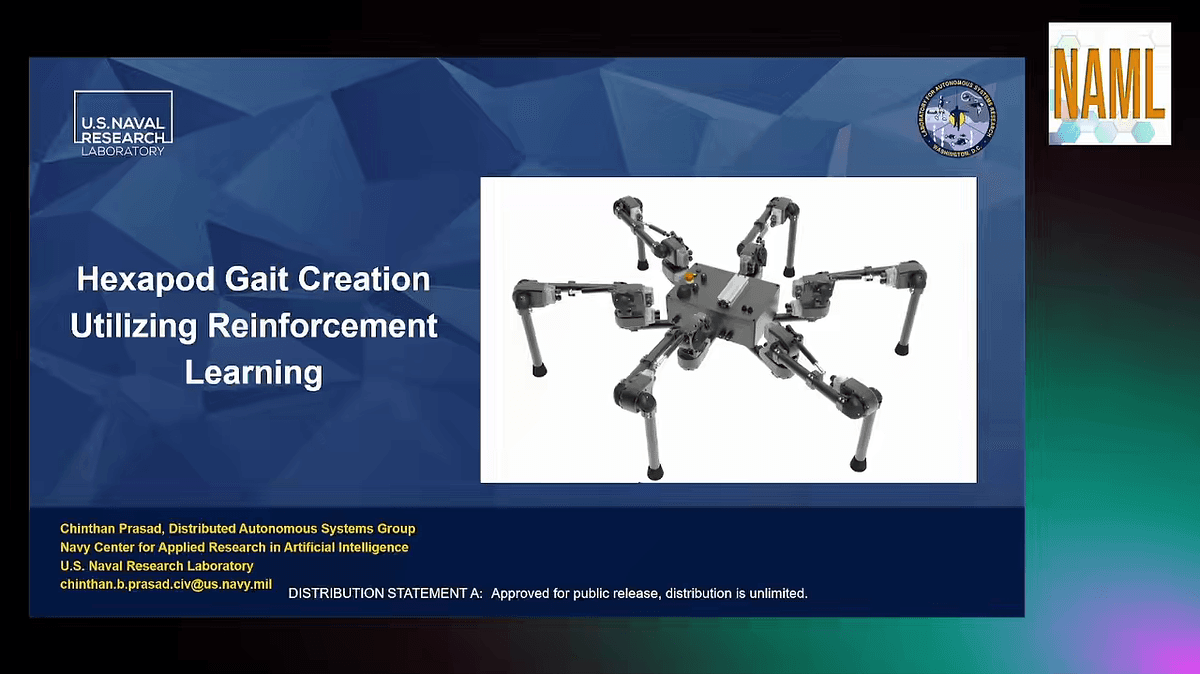

Hexapod Gait Optimization Utilizing Reinforcement Learning
