The biggest challenges for laser-based powder bed fusion of metals (PBF-LB/M) are the slow production and the high part prices combined with process and component defects. Gaussian beams with fixed beam diameters and their characteristic high peak intensities are state-of-the-art in PBF-LB/M. However, Gaussian beams can cause spatter formation, keyholing, and resulting keyhole porosity due to evaporation of the melt. Laser beam shaping has been used in various publications for laser welding and PBF-LB/M to address the challenges mentioned above. Our research at the Professorship of Laser-based Additive Manufacturing focuses on developing beam-shaping technologies to improve the production speed and process quality in PBF-LB/M. The different beam shaping strategies we are evaluating are based on spatial light modulators (= change in wavefront due to local change in refractive index by tilting liquid crystals), acousto-optic deflectors (= ultra-fast deflection of the laser radiation by frequency change of acoustic sound waves), and a multi-core fiber concept (= change in relative intensity distribution via redistribution across fiber cross-section). The study will compare the performance of three different beam shaping technologies for PBF-LB/M and evaluate their design freedom and complexity. The aim is to use beam shaping to achieve a stable melt pool, increase production speed, and reduce resource and energy consumption.

ICALEO 2023

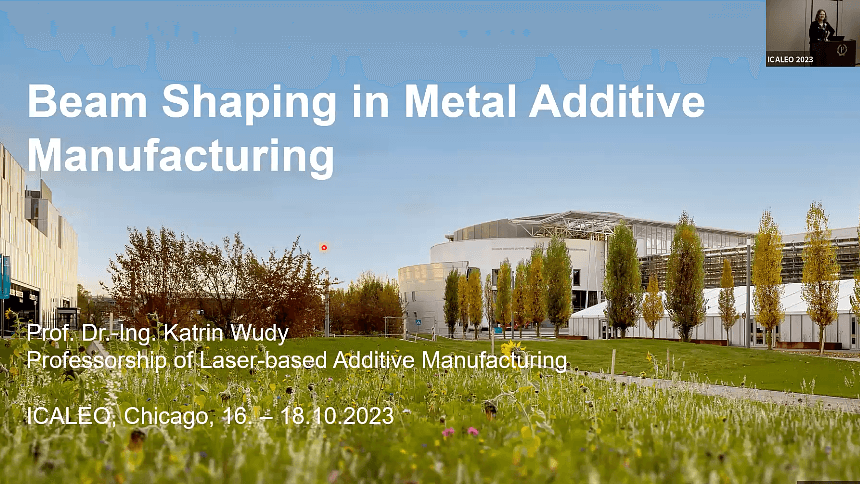

Flexible and Highly Dynamic Beam Shaping Technologies for Additive Manufacturing

laser-based powder bed fusion of metals

beam shaping

additive manufacturing

technical paper

**General Chair Welcome**

![](https://assets.underline.io/markdown_image/1/image/d6e6dddc08bf2371b9136ea9c18dc5ab.png)

Welcome to ICALEO® 2023!

We were excited to host the world’s leading international conference on Lasers and Electro-Optics in Chicago. The Laser has been shown to have the potential to revolutionize solutions for major global challenges like energy usage and supply, global warming, and CO2 footprint. Even the fusion energy breakthrough is based on laser technology. The conference, with peer-reviewed scientific and technical presentations, focused on the newest results in Micro Applications, Macro Applications, Additive Manufacturing, Beam Shaping and Frontiers in Laser Applications. Additionally, the Battery-Manufacturing Track gave an overview of the process combined with the newest advances in laser application results.

The Business Session brought the business aspect and environment of the laser to the audience and the possibility to discuss with seasoned industry leaders from around the world.

Whether this is the first time you are hearing about ICALEO or you are a longtime attendee, you will find something of interest, new ideas, and an excellent opportunity to network with other laser specialists worldwide.

**Klaus Löffler **
ICALEO General Chair
Managing Director, Precitec GmbH

**What is ICALEO?**

ICALEO® brings together the brightest minds, seasoned professionals, and pioneering researchers from around the world. With a laser-focused agenda, ICALEO offers an exceptional platform to delve into the cutting-edge advancements, diverse applications, and transformative research that define lasers and electro-optics.

Participants will be immersed in a dynamic environment that fosters collaborative learning, networking, and idea exchange. Through engaging plenary presentations, technical sessions, an industry business panel, and networking events, attendees gain insights into the forefront of laser technology. From industrial applications to medical breakthroughs, additive manufacturing to materials processing, ICALEO covers the entire spectrum of laser-related disciplines. Moreover, the event serves as a launching pad for synergistic partnerships, paving the way for professionals to forge connections that shape the future of our industry.

Join us in Chicago and be part of an unparalleled gathering that challenges the boundaries of possibility within lasers and electro-optics. As we convene to share knowledge, explore innovations, and cultivate collaborations, ICALEO stands as a pivotal force driving the evolution of this transformative technology.

**Who attended?**

ICALEO is tailor-made for professionals, researchers, academics, and enthusiasts who are deeply passionate about the world of lasers and electro-optics. If you're an industry trailblazer, an academic luminary, an aspiring expert, or a postgraduate student looking to dive into the latest developments and trends, this is an event you won't want to miss.

Industrial leaders seeking to stay ahead of the curve in their fields, engineers working on laser applications, and manufacturing experts interested in additive manufacturing and materials processing will find ICALEO to be an invaluable platform. Researchers and scientists exploring the forefront of laser technology, from fundamental principles to groundbreaking applications, will also discover a wealth of knowledge and networking opportunities.

Medical professionals investigating laser-based medical advancements, entrepreneurs seeking to innovate with lasers, educators aiming to stay updated with the latest in laser education, and policy makers shaping the industry's landscape are all essential attendees. Whether you're an established expert or a rising star, the 42nd annual ICALEO promises to offer a diverse ecosystem of expertise, connections, and knowledge sharing that caters to the laser and electro-optics communities.

**Fields Represented:**

* Entrepreneurs and Innovators
* Manufacturing Experts
* Students and Graduates
* Policy Makers and Regulators
* Consultants and Advisors
* Technology Enthusiasts
* Suppliers and Manufacturers
* Startups and Innovators
* Researchers in Laser Education

**[View All Proceedings Here](https://icaleo.conferencespot.org/event-data)**

### **Program Tracks & Chairs**

To access the site please register [**here**](https://icaleo.org/attend).

Please register for the ICALEO 2023 Conference to join the event.

ICALEO® brings together the brightest minds, seasoned professionals, and pioneering researchers from around the world. With a laser-focused agenda, ICALEO offers an exceptional platform to delve into the cutting-edge advancements, diverse applications, and transformative research that define lasers and electro-optics.

Despite the maturity of laser-based powder bed fusion of metals (PBF-LB/M), some barriers prevent the manufacturing process from fully being established in the industry. One drawback is spatter formation, which is disadvantageous to PBF-LB/M for three main reasons. First, adhering spatter can initiate coater collision, resulting in process failure. Second, large ad­hering spatter may cause lack-of-fusion defects as they require more energy to remelt sufficiently compared to unprocessed powder. Furthermore, big non-adhering spatter cannot be recycled as powder. The recycling of small spatter particles potentially results in degraded material properties. Ring-shaped beam profiles have been established for deep penetration welding to reduce spatter formation. Investigations on ring-shaped beam profiles in PBF-LB/M focus on improving productivity and process robustness. Quali­tative spatter reduction in PBF-LB/M using ring-shaped beam profiles has also been reported. This publication quantitatively examines the influence of ring-shaped beam profiles on spatter formation in PBF-LB/M. Image processing algorithms of on-axis high-speed images are utilized for spatter detection and tracking. A self-developed spatter segmentation is used to determine the spatter size. A Laplacian of Gaussian (LoG) filter is combined with a Kalman tracker to count and track the spatter. The results show that spatter formation is highly influenced by the beam profile and the chosen process parameters. Considering the melt track width, ring-shaped beam profiles could reduce the number of spatter per fused area. High numbers of spatter are generated when parameter sets result in balling. Moreover, spatter velocity is primarily dependent on the introduced dimensionless enthalpy.

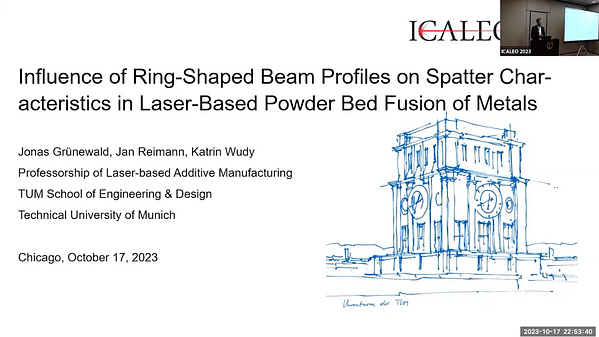

Influence of Ring-Shaped Beam Profiles on Spatter Characteristics in Laser-Based Powder Bed Fusion of Metals
