Tungsten has been used in many industrial fields such as automobile industry, medical industry and so on, because of having its high creep strength and high corrosion resistance. Recently, the W is expected to apply for divertor surface of nuclear fusion reactor to prevent of wear and tear from charged and neutral particles form plasma. In case of thermal shielding properties such as divertors, it is important to smooth the surface, but the tungsten is difficult to process because of its high hardness and susceptibility to cracking and chipping. Therefore, we focused on laser processing. Pulsed laser can produce high power density over 10&lt;sup&gt;15&lt;/sup&gt;&lt;sup&gt; &lt;/sup&gt;W/cm&lt;sup&gt;2&lt;/sup&gt; as ablation process, while the average power relatively low. On the other hand, continuous wave (CW) laser produces continuous power, an output power became high over 10 kW.&amp;nbsp; Although the difference between CW and pulsed lasers is obvious in processing tungsten, it is necessary to gain a better understanding of which processing is more suitable for surface processing.&lt;br&gt;
　In this study, we tried to smooth the tungsten plate surface by irradiating it with a high-power CW laser and a femtosecond laser which is an ultrashort pulsed laser and investigated the differences in the processing characteristics of tungsten.

ICALEO 2023

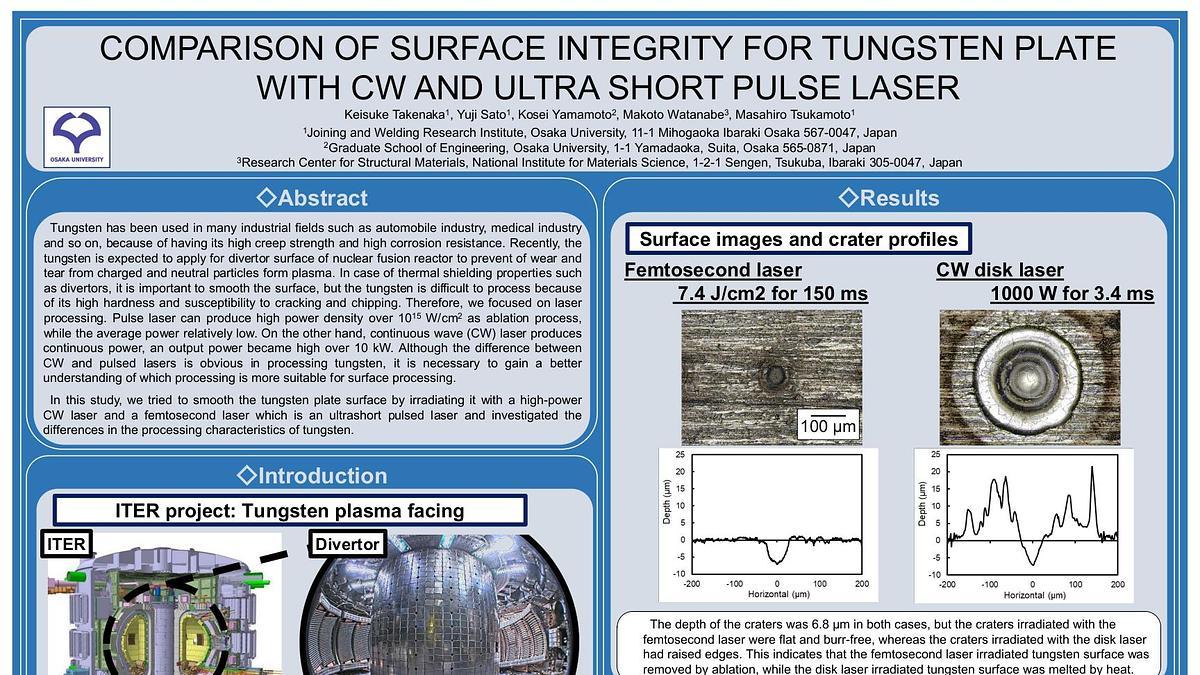

Comparison of Surface Integrity for Tungsten Plate with CW and Ultra Short Pulse Laser

smooth surface

cw laser

femtosecond laser

tungsten

Tungsten has been used in many industrial fields such as automobile industry, medical industry and so on, because of having its high creep strength and high corrosion resistance. Recently, the W is expected to apply for divertor surface of nuclear fusion reactor to prevent of wear and tear from charged and neutral particles form plasma. In case of thermal shielding properties such as divertors, it is important to smooth the surface, but the tungsten is difficult to process because of its high hardness and susceptibility to cracking and chipping. Therefore, we focused on laser processing. Pulsed laser can produce high power density over 1015 W/cm2 as ablation process, while the average power relatively low. On the other hand, continuous wave (CW) laser produces continuous power, an output power became high over 10 kW.&nbsp; Although the difference between CW and pulsed lasers is obvious in processing tungsten, it is necessary to gain a better understanding of which processing is more suitable for surface processing.
　In this study, we tried to smooth the tungsten plate surface by irradiating it with a high-power CW laser and a femtosecond laser which is an ultrashort pulsed laser and investigated the differences in the processing characteristics of tungsten.
