Manufacturing high-quality inorganic thin films on large-area flexible substrates is a key technology to utilize for flexible devices such as wearable sensors, flexible displays, and electronic devices. For the device fabrications, epitaxial thin films were grown on two-dimensional (2-D) layered materials such as graphene and h-BN. Since the 2-D materials offer weak bonding to the as-grown films, the exfoliation of epilayers from 2-D materials is easily feasible. In particular, remote epitaxy has recently been reported by molecular beam epitaxial growth of GaN thin films on the graphene buffer layer (GBL) on SiC substrates. This remote epitaxial growth method enables to grow the single-crystal thin films on graphene-coated polar substrates by maintaining the epitaxial relationship between the substrate and the epilayer because the graphene does not wholly screen the electrostatic potential of the substrate. However, metalorganic vapor-phase epitaxy (MOVPE), commercially used for manufacturing GaN devices, could not be used for the remote epitaxial growth and exfoliation of high-quality GaN thin films on graphene. During the MOVPE growth, graphene substrates are affected by H2 and NH3 ambient gases at high growth temperatures, resulting in the failure of GaN exfoliation from the graphene substrate. Here, we report a new strategy for MOVPE growth of transferable single-crystal GaN thin films on graphene/c-sapphire by using pulse operation of NH3 flow to prevent deterioration of graphene substrates during GaN growth. The basic strategy for epitaxial growth of transferable single-crystal GaN thin films on graphene/c-sapphire is to use pulse operation of NH3 flow to prevent deterioration of graphene substrates during GaN growth. In the NH3 pulsed-flow growth, the NH3 injection into the reactor was periodically interrupted while the trimethylgallium (TMGa) was continuously injected. By a controlled V/III ratio under the pulsed NH3 injection, the lateral growth of the GaN buffer islands was enhanced merging into a continuous film. By optimizing the growth parameters, including the duration and period of the pulsed ammonia flow, high-quality GaN films were grown on the graphene-coated sapphire substrates, easily lifted off, and transferred onto a foreign substrate by simple mechanical exfoliation using a tape. Furthermore, we investigated the role of the pulsed operation of ammonia flow as a critical factor for the fabrication of high-quality free-standing GaN films. The freestanding GaN films, exhibiting excellent single crystallinity and electrical and optical characteristics, were also applied for transferrable GaN LEDs by heteroepitaxially growing InxGa1-xN/GaN multiple quantum wells and p-type GaN layers on the GaN films and transferring them onto Cu foil.

EMC 2023

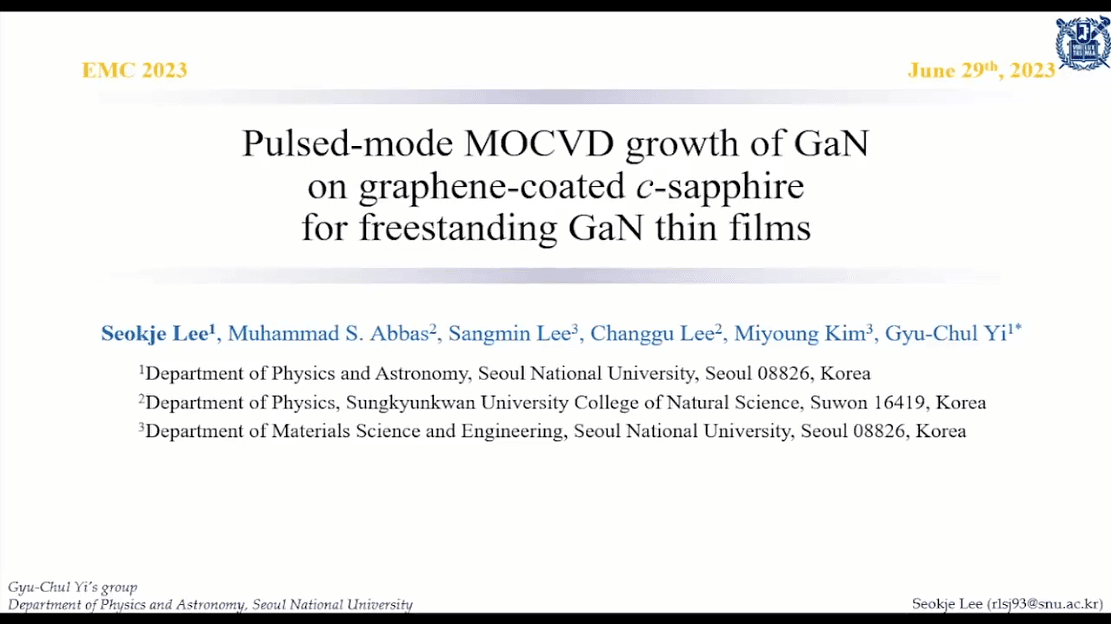

Pulsed-Mode Metalorganic Vapor-Phase Epitaxial Growth of GaN on Graphene/c-Sapphire for Freestanding GaN Thin Films

remote epitaxy

movpe

graphene

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC), which will be held during the same week, from June 20-23. This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

![](https://assets.underline.io/uploads/markdown_image/1/image/eb26c24a18d5d1030616afa4f993cf89.png)

<a href="https://www.mrs.org/docs/default-source/meetings-events/mrs-conference-services/2021/emc-2021/2021-emc-program-at-a-glance-6-16-21.pdf?sfvrsn=e39f950c_4">Latest Program-at-a-Glance</a>

<a href="https://drive.google.com/file/d/1eiS1ao4p83VNy8xgHs3Rls7gTQjx7Rc4/view?usp=sharing">Full Program with Abstracts</a>

EMC 2021

technical paper

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC). This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials.

A combination of high electron saturation velocity, high electron mobility, large breakdown field, and high electron density can be simultaneously achieved in GaN high electron mobility transistors (HEMTs), making them attractive for high-power, high-frequency power amplifiers. N-polar GaN epi-structures offer scaling of the gate-to-channel distance without losing 2DEG density and a built-in back-barrier for better pinch-off performance. Additionally, N-polar GaN enables the implementation of a thick in-situ GaN-cap layer, which keeps surface states away from the channel and minimizes their effect on device performance. By using N-polar HEMT epi-structure with a GaN cap (deep recess HEMT) 8 W mm−1 output power with 27.8% power added efficiency (PAE) at 94 GHz has been demonstrated, which is more than twice the output power and efficiency of conventional Ga-polar AlGaN/GaN HEMTs [1]. Despite numerous benefits, there are challenges associated with N-polar deep recess HEMTs. Dry etching used in recess etching causes surface damage in the gate area and the trench sidewalls leading to high gate leakage and low breakdown voltage. These issues are currently addressed by inserting SiNx gate dielectric deposited via metal organic chemical vapor deposition (MOCVD), a high temperature deposition technique that could be a limiting factor in device fabrication and integration. Moreover, inserting a thick dielectric layer under the gate increases the gate-to-channel distance, which is not desirable in scaled devices. Therefore, there is a need for developing a gate insulator with a high dielectric constant with low bulk and interface trap density. Moreover, a low-temperature deposition technique such as ALD allows for more flexibility in the fabrication process and is more desirable for manufacturing. Recent studies in our group have shown the successful application of ALD- HfO2 as gate dielectric in N-polar planar GaN HEMTs. [2] In this work, for the first time, a thermal-ALD HfO2 was used as the gate dielectric in N-polar deep recess GaN HEMTs. DC, pulsed IV, and small signal measurements were conducted to evaluate the device performance. Results show low gate leakage current, high transconductance, high dielectric breakdown field, and low dispersion, which indicates a high quality dielectric and dielectric/GaN interface. This work shows the potential for HfO2 as a gate insulator in N-polar deep recess HEMTs with a scaled channel. MOCVD-grown N-polar deep recess GaN HEMT structure with a 12 nm thick GaN channel and a 47.5 nm thick GaN-Cap was used for this study. The devices presented here have a 100 μm gate width, and 1.75 μm source to drain distance. The etched region length for the gate recess is 200 nm and placed 650 nm away from the source. Ti/Au gate metal has 450 nm thickness, 900 nm length, and 300 nm away from the source. DC measurements showed 0.9 A/mm maximum drain current, 2 Ohm.mm on-resistance, and 2.2 V knee voltage at 1 V gate bias. The threshold voltage was -1.5 V. The maximum transconductance of 420 mS/mm was measured at VG of -0.75 V and VD of 3 V. Gate leakage current of 140 nA/mm, and a 6.2 MV/cm dielectric breakdown field. More importantly, near zero hysteresis was observed in DC measurements. Pulsed IV measurements revealed less than 5% dispersion. Unity current gain frequency (fT) of 30.5 GHz and 53 GHz maximum oscillation frequency (fMAX) were measured. These results show the potential of using HfO2 as the gate dielectric in the future ultra-scaled N-polar deep recess GaN HEMTs. [1] B. Romanczyk et al., "W-band N-polar GaN MISHEMTs with high power and record 27.8% efficiency at 94 GHz," 2016 IEEE International Electron Devices Meeting (IEDM), 2016, pp. 3.5.1-3.5.4, doi: 10.1109/IEDM.2016.7838339. [2] S. Mohanty, A. Jian, K. Khan, and E. Ahmadi, “Demonstration of N-polar GaN MIS-HEMT with high-k atomic layer deposited HfO 2 as gate dielectric,” Accepted to appear in Journal of Electronic Materials (JEMS).

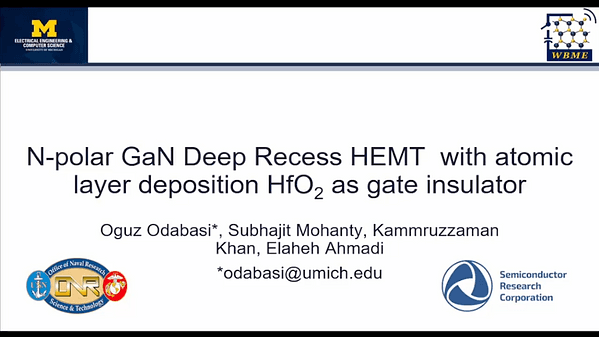

N-Polar GaN Deep Recess HEMTs with ALD HfO2 as Gate Dielectric
