Motivation To reduce the device cost, body diode is expected as the freewheeling diode for commercial trench SiC power MOSFETs in the high frequency applications. Therefore, it is necessary to investigate the reliability of body diodes. This study compares the body diode degradation of commercial 1.2 kV planar and trench SiC power MOSFETs from several vendors listed in Table 1. Besides, 1.2 kV planar SiC power MOSFETs are fabricated with the nominal and deep JFET. The deep JFET extends down from the nominal JFET into the drift layer, and part of the additional n+ layer is in contact with p-body. We assume that the deep JFET enhances the recombination of the injected minority carriers from p-body. This leads to the suppression of body degradation by reducing the recombination energy provided to expand SFs. These two different JFET structures are presented in Fig. 1. Results Fig. 2 compares the average degradation ratio of VF, RON, and forward leakage current in the blocking mode (IL) on the commercial 1.2 kV planar SiC power MOSFETs from Vendors E, I, and C. Decline in device performance from body diode degradation is at negligible or acceptable levels for all these three vendors. It can be concluded that body diode degradation is not a big issue in most commercial 1.2 kV planar SiC power MOSFETs. In Fig. 3, commercial trench DUTs from Vendor K have more significant average body diode degradation than planar DUTs. Trench DUTs from Vendor D have no obvious degradation. However, the influence of body diode degradation on IL is not reflected as expected. This may be due to the fact that devices are breaking down in the termination area where no SFs exist, as opposed to the active area. As shown in Fig. 4, 7 of 10 DUTs from Vendor K have reached the degradation criterion while there’s no significant body diode degradation in 8 DUTs, apart from the 2 dead devices, for Vendor D. This can be explained in Fig. 5 that the deep p+ contact by the Al implantation with high dose and energy is required to shield the electric-field-crowded corner of the trench gate, which creates many BPDs around the p+ contact in the trench structure from Vendor K. Although the p+ contact with the heavy dose is still needed for Vendor D, it is implanted after the dummy trench formed by RIE. That means the p+ contact can be shallow which significantly reduces the new BPDs. In the planar structure, high density of new BPDs around the implanted regions is hard to create because of light-dose and shallow p-type contact, as well as many improved designs and processes that have already minimized the BPDs arising from the SiC substrate wafer and epitaxial growth. In addition, Vendor D not only has the Gen 3 trench structure mentioned above, but also has the Gen 4 trench structure as shown in Fig. 6. In the Gen 4 trench structure, the Al implantation with the high energy and dose for the deep p+ contact is performed before the RIE for the trench dummy. Therefore, this new trench structure is expected to have significant body diode degradation as that of Vendor K. The body diode degradation test on the Gen 4 DUTs from Vendor D is still in progress. Furthermore, Fig. 7 compares the body diode degradation of the fabricated 1.2 kV SiC power MOSFETs with the nominal and deep JFET. It can be observed that there is increasing average body diode degradation in the DUTs with the nominal JFET during the stress. However, for the DUTs with the deep JFET under the same process, there is no average body diode degradation during the stress. It is also reflected that the breakdown voltage of the DUTs with the nominal JFET decreases due to the increasing leakage current while there is no variation for the DUTs with the deep JFET. This confirms the assumption that body diode degradation in commercial 1.2 kV SiC power MOSFETs, especially in the trench devices, is mainly caused by the new BPDs around the p-type contacts introduced by the deep Al implantation with heavy dose.

EMC 2023

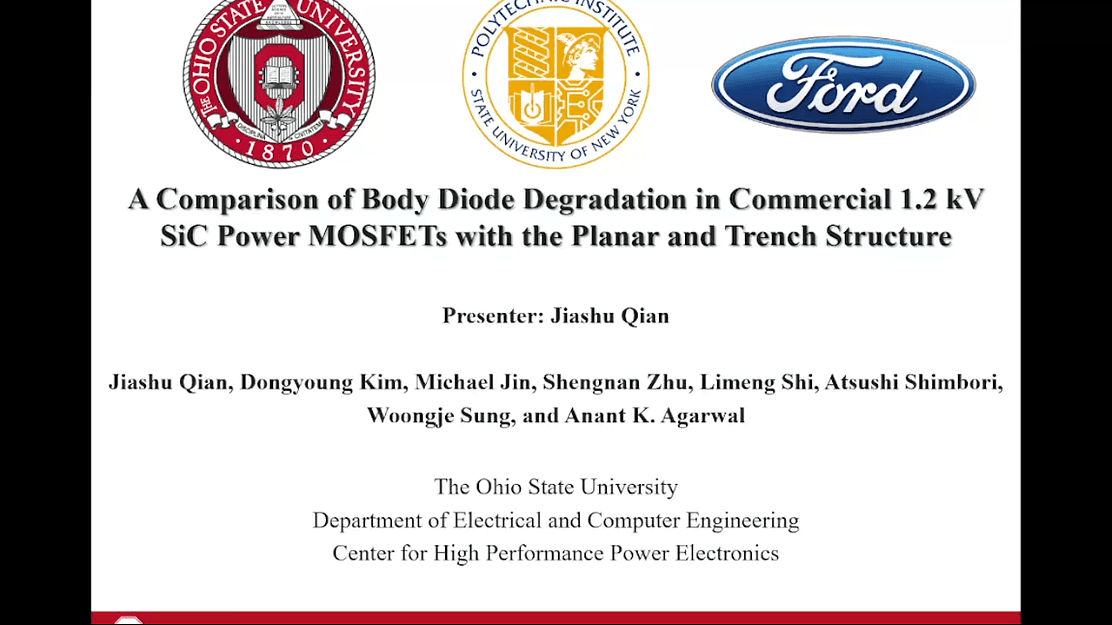

A Comparison of Body Diode Degradation in Commercial 1.2 kV SiC Power MOSFETs with the Planar and Trench Structure

trench

body diode degradation

implantation

mosfet
