Steady-state current induced degradation mechanisms of 275-nm-band AlGaN quantum well (QW) deep-ultraviolet (DUV) light-emitting diodes (LEDs) were investigated. The optical output power (Po) showed an initial rapid decrease by 20-30 % within the aging time (tage) of 100 h and then gradually decreased to about 60 % by tage of 1000 h. For elucidating the causes for the initial and gradual degradations, complementary electrical, time-resolved photoluminescence (TRPL), and impurity characterizations were carried out, making a connection with the junction band profiles. Because the initial degradation of the wells was less significant than the Po, the short-term degradation is attributed to the reduction in carrier injection efficiency (CIE), not in internal quantum efficiency (IQE) of the wells, most probably due to de-passivation of initially H-passivated vacancy clusters in Mg-doped AlGaN electron blocking layer (EBL) especially close to the multiple QWs. The principal cause for the gradual decrease in Po is tentatively attributed to a gradual decrease in IQE of the QWs. (Contents) Recently, an increasing demand for antivirus has attracted attention for DUV LEDs operating between 200 and 280 nm, because such radiation is known to inactivate bacteria or viruses, including SARS-CoV-2. AlGaN-based 275-nm-band DUV LEDs are suitable for such purposes, and Po of several manufacturers are increasing. However, simultaneous realization of high power and high quantum efficiency is still difficult and the device lifetime is far less than that of visible and near UV LEDs. With respect to the device lifetime, there is a consensus that the degradation can be divided into two groups: a rapid reduction in Po within tage below about 100 h and a gradual reduction for tage ≥ 100 h. The results have been explained to be due to the increase in the number of point defects acting as nonradiative recombination centers (NRCs) in the QWs. However, direct evidence for increased concentration of NRCs has not been given yet. In this presentation, the results of electrical, TRPL, and secondary-ion mass spectrometry (SIMS) measurements carried out on 275-nm-band AlGaN LEDs are shown to define the locations of major degradations. Two sets (lot A and B) of AlGaN DUV LEDs grown on c-plane sapphire have been stressed under hard conditions: forward current IF of 350 mA and junction temperature Tj of 105 °C. Consistent with previous literatures, Po for the near-band-edge (NBE) emission showed an initial rapid decrease by 20-30 % (tage &lt; 100 h) and a gradual decrease to about 60 % by tage of 1000 h. The initial decrease was accompanied by the increases in both IF below the diffusion voltage (VD) and reverse leakage current (IR). For elucidating dominant causes for the degradations, TRPL measurements were carried out using the excitation photon energy below the barrier and above the well to extract pure photoluminescence (PL) lifetimes of the wells. Because the decrease in the room-temperature PL lifetime that represents the nonradiative lifetime was less significant than the Po, the initial degradation is attributed to the decrease in CIE, not in IQE of the wells. From the energy band diagrams calculated for biases V = -5, 0, 4, and 7 V, both the below VD and reverse leakages appear to take place in the AlGaN EBL, especially at the interface close to the active region. Because the decrease in H concentration in the EBL to multiple QW region was confirmed by SIMS measurement, the initial degradation is most probably due to de-passivation of initially H-passivated vacancy clusters (NRCs) in the EBL close to the multiple QWs. The principal cause for the gradual decrease in Po is tentatively attributed to a gradual decrease in IQE of the QWs. This work was supported by MOE program for implementation of innovative infection-control and digital technologies with low CO2 emissions, MEXT Crossover Alliance, an JST SPRING (#JPMJFS2102), Japan.

EMC 2023

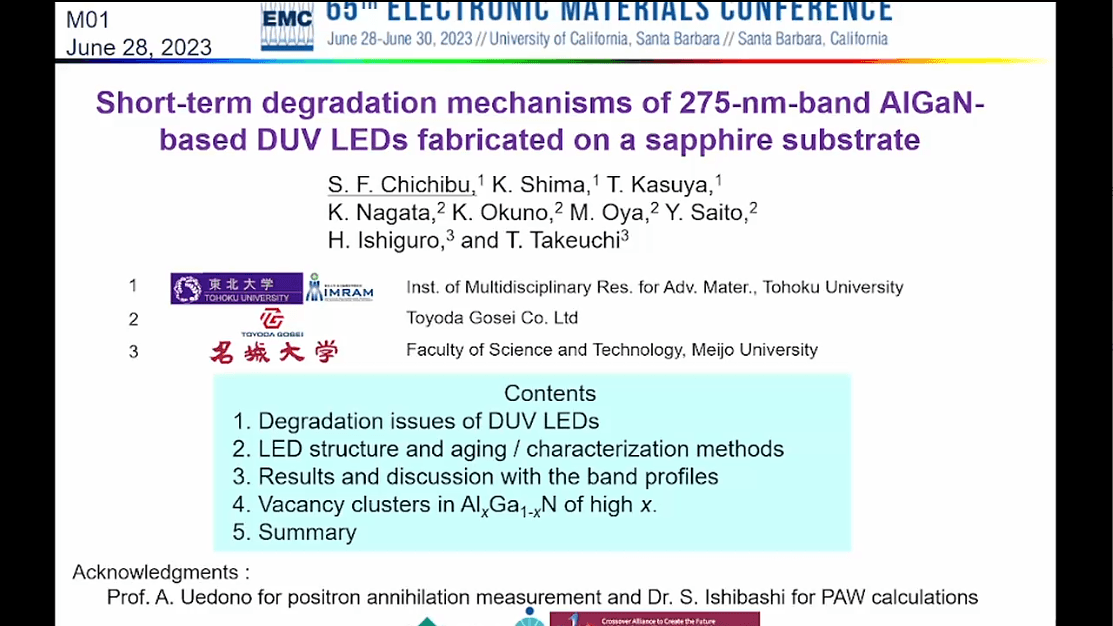

Short-Term Degradation Mechanisms of 275-nm-Band AlGaN-Based Deep-Ultraviolet Light Emitting Diodes Fabricated on a Sapphire Substrate

vacancy clusters

algan duv leds

degradation

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC), which will be held during the same week, from June 20-23. This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

![](https://assets.underline.io/uploads/markdown_image/1/image/eb26c24a18d5d1030616afa4f993cf89.png)

<a href="https://www.mrs.org/docs/default-source/meetings-events/mrs-conference-services/2021/emc-2021/2021-emc-program-at-a-glance-6-16-21.pdf?sfvrsn=e39f950c_4">Latest Program-at-a-Glance</a>

<a href="https://drive.google.com/file/d/1eiS1ao4p83VNy8xgHs3Rls7gTQjx7Rc4/view?usp=sharing">Full Program with Abstracts</a>

EMC 2021

Steady-state current induced degradation mechanisms of 275-nm-band AlGaN quantum well (QW) deep-ultraviolet (DUV) light-emitting diodes (LEDs) were investigated. The optical output power (Po) showed an initial rapid decrease by 20-30 % within the aging time (tage) of 100 h and then gradually decreased to about 60 % by tage of 1000 h. For elucidating the causes for the initial and gradual degradations, complementary electrical, time-resolved photoluminescence (TRPL), and impurity characterizations were carried out, making a connection with the junction band profiles. Because the initial degradation of the wells was less significant than the Po, the short-term degradation is attributed to the reduction in carrier injection efficiency (CIE), not in internal quantum efficiency (IQE) of the wells, most probably due to de-passivation of initially H-passivated vacancy clusters in Mg-doped AlGaN electron blocking layer (EBL) especially close to the multiple QWs. The principal cause for the gradual decrease in Po is tentatively attributed to a gradual decrease in IQE of the QWs. (Contents) Recently, an increasing demand for antivirus has attracted attention for DUV LEDs operating between 200 and 280 nm, because such radiation is known to inactivate bacteria or viruses, including SARS-CoV-2. AlGaN-based 275-nm-band DUV LEDs are suitable for such purposes, and Po of several manufacturers are increasing. However, simultaneous realization of high power and high quantum efficiency is still difficult and the device lifetime is far less than that of visible and near UV LEDs. With respect to the device lifetime, there is a consensus that the degradation can be divided into two groups: a rapid reduction in Po within tage below about 100 h and a gradual reduction for tage ≥ 100 h. The results have been explained to be due to the increase in the number of point defects acting as nonradiative recombination centers (NRCs) in the QWs. However, direct evidence for increased concentration of NRCs has not been given yet. In this presentation, the results of electrical, TRPL, and secondary-ion mass spectrometry (SIMS) measurements carried out on 275-nm-band AlGaN LEDs are shown to define the locations of major degradations. Two sets (lot A and B) of AlGaN DUV LEDs grown on c-plane sapphire have been stressed under hard conditions: forward current IF of 350 mA and junction temperature Tj of 105 °C. Consistent with previous literatures, Po for the near-band-edge (NBE) emission showed an initial rapid decrease by 20-30 % (tage < 100 h) and a gradual decrease to about 60 % by tage of 1000 h. The initial decrease was accompanied by the increases in both IF below the diffusion voltage (VD) and reverse leakage current (IR). For elucidating dominant causes for the degradations, TRPL measurements were carried out using the excitation photon energy below the barrier and above the well to extract pure photoluminescence (PL) lifetimes of the wells. Because the decrease in the room-temperature PL lifetime that represents the nonradiative lifetime was less significant than the Po, the initial degradation is attributed to the decrease in CIE, not in IQE of the wells. From the energy band diagrams calculated for biases V = -5, 0, 4, and 7 V, both the below VD and reverse leakages appear to take place in the AlGaN EBL, especially at the interface close to the active region. Because the decrease in H concentration in the EBL to multiple QW region was confirmed by SIMS measurement, the initial degradation is most probably due to de-passivation of initially H-passivated vacancy clusters (NRCs) in the EBL close to the multiple QWs. The principal cause for the gradual decrease in Po is tentatively attributed to a gradual decrease in IQE of the QWs. This work was supported by MOE program for implementation of innovative infection-control and digital technologies with low CO2 emissions, MEXT Crossover Alliance, an JST SPRING (#JPMJFS2102), Japan.

technical paper

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC). This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials.

Ultra-violet light emitting diodes (UV-LEDs) and lasers based on the III-Nitride material system are very promising since they enable compact, safe, and efficient solid-state sources of UV light for a range of applications. The primary challenges for UV LEDs are related to the poor conductivity of p-AlGaN layers and the low light extraction efficiency of LED structures. Tunnel junction-based UV LEDs provide a distinct and unique pathway to eliminate several challenges associated with UV LEDs[1-4]. In this work, we present for the first time, a reversed-polarization (p-down) AlGaN based UV-LED utilizing bottom tunnel junction (BTJ) design. We show that compositional grading enables us to achieve the lowest reported voltage drop of 1.1 V at 20 A/cm2 among transparent AlGaN based tunnel junctions at this Al-composition. Compared to conventional LED design, a p-down structure offers lower voltage drop because the depletion barrier for both holes and electrons is lower due to polarization fields aligning with the depletion field. Furthermore, the bottom tunnel junction also allows us to use polarization grading to realize better p- and n-type doping to improve tunneling transport. The epitaxial structure of the UV-LED was grown by plasma-assisted molecular beam epitaxy (PAMBE) on metal-organic chemical vapor deposition (MOCVD)-grown n-type Al0.3Ga0.7N templates. The transparent TJ was grown using graded n++-Al0.3Ga0.7N→ n++-Al0.4Ga0.6N (Si=3×1020 cm-3) and graded p++-Al0.4Ga0.6N →p++-Al0.3Ga0.7N (Mg=1×1020 cm-3) to take advantage of induced 3D polarization charges. The high number of charges at the tunnel junction region leads to lower depletion width and efficient hole injection to the p-type layer. The UV LED active region consists of three 2.5 nm Al0.2Ga0.8N quantum wells and 7 nm Al0.3Ga0.6N quantum barriers followed by 12 nm of p- Al0.46Ga0.64N electron blocking layer (EBL). The active region was grown on top of the tunnel junction. A similar LED with p-up configuration was also grown to compare the electrical performance. The surface morphology examined by atomic force microscopy (AFM) shows smooth growth features with a surface roughness of 1.9 nm. The dendritic features on the surface are characteristic of high Si doping on the surface. The composition of each layer was extracted from the scan by high resolution x-ray diffraction (HR-XRD). The electrical characteristics of a device show a voltage drop of 4.9 V at 20 A/cm2, which corresponds to a tunnel junction voltage drop of ~ 1.1 V. This is the best lowest voltage for transparent 30% AlGaN tunnel junctions to-date and is comparable with the lowest voltage drop reported previously on non-transparent (InGaN-based) tunnel junctions at similar Al mole fraction AlGaN. On-wafer electroluminescence measurements on patterned light-emitting diodes showed single peak emission wavelength of 325 nm at 100 A/cm2 which corresponds to Al0.2Ga0.8N, confirming that efficient hole injection was achieved within the structure. The device exhibits a wavelength shift from 330 nm to 325 nm with increasing current densities from 10A/cm2 to 100A/cm2. In summary, we have demonstrated a fully transparent bottom AlGaN homojunction tunnel junction that enables p-down reversed polarization ultraviolet light emitting diodes, and has very low voltage drop at the tunnel junction. This work could enable new flexibility in the design of future III-Nitride ultraviolet LEDs and lasers. Funding from National Science Foundation under grant number 2034140 is gratefully acknowledged. References: [1] Y. Zhang et al., Applied Physics Letters, vol. 109, no. 12, 2016 [2] A. Pandey, W. J. Shin, J. Gim, R. Hovden, and Z. Mi, Photonics Research, vol. 8, no. 3, 2020 [3] V. Fan Arcara et al., Journal of Applied Physics, vol. 126, no. 22, p. 224503, 2019. [4] K. Nagata et al., Applied Physics Express, vol. 14, no. 8, p. 084001, 2021.

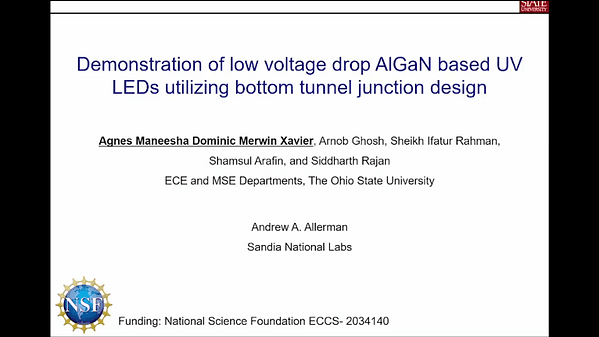

Demonstration of AlGaN Tunnel Junction p-Down UV Light Emitting Diodes
