Introduction: We report on the first demonstration of field emission characteristics of β-Ga2O3 nano-pillar arrays fabricated using a novel damage-free etching technique. The vacuum field emission characteristics of β- Ga2O3 is interesting due to its large theoretical breakdown field strength (8 MV/cm), high mechanical and chemical stability, and resistance to surface oxidation. The current literature on vacuum field emission of Ga2O3 is limited to a single nano-pillar fabricated using FIB [2] while β- Ga2O3 nanowires made using self-catalytic bottom-up processes display low threshold fields [3]. The β-Ga2O3 nano-pillar arrays were fabricated using an in situ Ga2O3 etching technique in an ultra-high vacuum environment to realize damage free, high aspect ratio nano-pillars with atomic scale etch precision. Electrically conductive Ga2O3 nano-pillars with sub-micron widths was realized without the use of e-beam lithography. Field emission characteristics on the nano-pillars displayed an emission current of 10 nA per tip at an electric field of 400 kV/cm. The field emission characteristics were modelled using the Murphy-Good model, and the measurements were validated with a field emission orthodoxy test. Experimental: A thin SiO2 sacrificial layer was deposited on a Sn doped (1×1018 cm-3) (010) β- Ga2O3 substrate as a hard mask for the in-situ etch. Circular arrays were patterned using a conventional photolithographic tool on the SiO2 layer. A portion of the patterned SiO2 layer was etched using an inductively coupled reactive ion etcher (ICP-RIE), and the remaining SiO2 was etched in diluted buffered oxide etch to prevent plasma damage to the Ga2O3 surface during the dry etch. The Ga2O3 etch was carried out at a chamber temperature of 700 oC and a Ga flux of 5x10-7 Torr for two hours which resulted in an etch depth of ~960 nm. Formation of nano-pillar arrays, ~240 in diameter was confirmed using a scanning electron micrograph. Results: The conductive nature of the fabricated nano-pillars was confirmed using conductive atomic force microscope measurements. Field emission characteristics were measured on a wafer with three Ga2O3 nano-pillar arrays (a total of 700 nano-pillars). The measurement was carried out in a vacuum chamber with a base pressure of ~6x10-8 Pa. The nano-pillar arrays displayed an emission turn-on field ~100 kV/cm, with a field emission current of 19 nA per tip at an applied field of 385 kV/cm. The Murphy-Good plot shows a linear relationship at high electric fields ranging from 250 kV/cm to 385 kV/cm. The field enhancement factor and the ‘fc’ value at each voltage were extracted based on the slope at the 1/V value. The orthodox pass dataset was calculated to be in the range, . The measurement data of β- Ga2O3 nano-pillar arrays were found to be within the range at high electric fields ranging from 250 kV/cm to 385 kV/cm. In summary, field emission characteristics of β- Ga2O3 nano-pillar arrays were demonstrated and modelled using Murphy-Good equation alongside independent validation using the orthodoxy test. We acknowledge funding from the Air Force Office of Scientific Research (AFOSR) through Award FA9550-19-0349 (Dr. Ken Goretta and John Lungisland). J. Ludwick was supported by the Air Force Research Labs under contract No. FA8650-16-D-5408. References: [1] Appl. Phys. Lett. 119, 123503 (2021). [2] Appl. Phys. Lett. 114, 193101 (2019). [3] J. Phys. D: Appl. Phys. 42, 185409 (2009).

EMC 2023

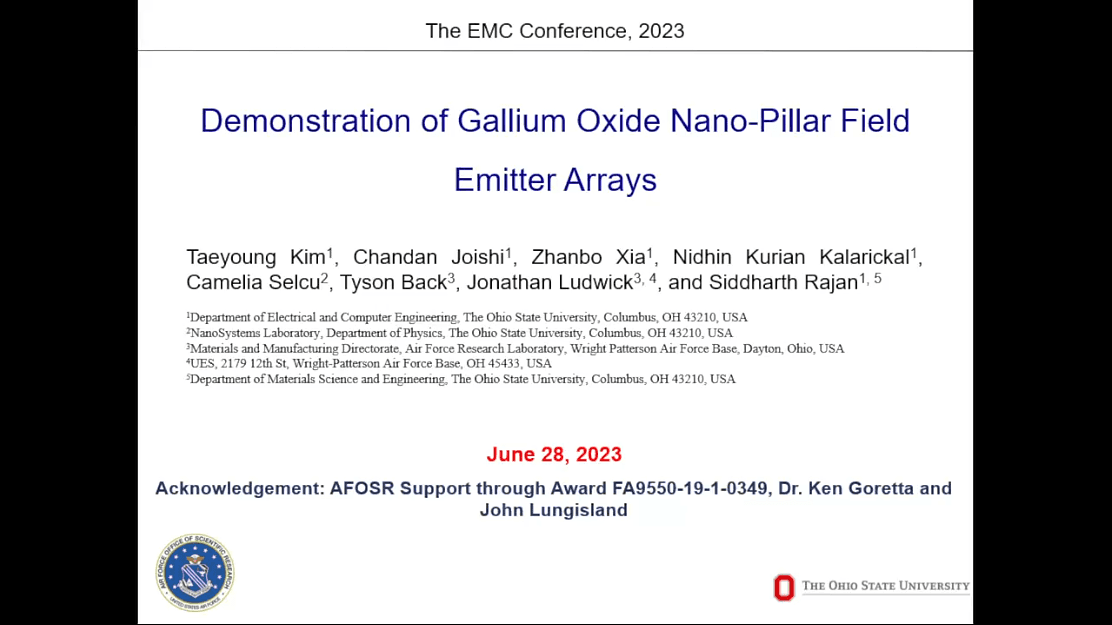

Demonstration of Gallium Oxide Nano-Pillar Field Emitter Arrays

field emitter array

field emission current

ga2o3

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC), which will be held during the same week, from June 20-23. This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

![](https://assets.underline.io/uploads/markdown_image/1/image/eb26c24a18d5d1030616afa4f993cf89.png)

<a href="https://www.mrs.org/docs/default-source/meetings-events/mrs-conference-services/2021/emc-2021/2021-emc-program-at-a-glance-6-16-21.pdf?sfvrsn=e39f950c_4">Latest Program-at-a-Glance</a>

<a href="https://drive.google.com/file/d/1eiS1ao4p83VNy8xgHs3Rls7gTQjx7Rc4/view?usp=sharing">Full Program with Abstracts</a>

EMC 2021

technical paper

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC). This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials.

High Electron Mobility Transistors (HEMTs) are widely used in telecommunication, aerospace, and military for RF and power electronic applications1. High power operation of the AlGaN/GaN HEMT is significantly limited by self-heating effects caused due to inadequate heat extraction from the localized hotspot generated near high electron mobility channel 2. Unoptimized design for heat extraction and high thermal boundary resistance at the GaN/Substrate interface are the primary causes of poor heat extraction 3. Integration of diamond heat spreaders with high thermal conductivity has shown promising results in the thermal performance of the device4. However, several factors like GaN/Diamond thermal boundary resistance (TBR), optimal distance from the hotspot, and heat spreader configuration can lead to the sub-optimal thermal performance of the device. Consequently, in this work, we implement a multi-way heat extraction strategy for improving the thermal performance of the AlGaN/GaN/Diamond HEMT using a cohesive understanding of TBR and distance from hotspot to diamond heat dissipators. AlGaN/GaN HEMT with a GaN substrate (Fig 1a), is simulated to set a baseline performance, which showed a thermal resistance of ~80 K.mm/W (fig 2). Upon replacing the GaN substrate with a Single Crystalline Diamond at the bottom of the device (fig 1b), its thermal resistance reduced by ~13 times. Despite of remarkable performance improvements, the device still suffers at high power density due to low thermal conductivity of GaN layer and high TBR at GaN/SCD interface. Device with SCD at bottom operating at 40W/mm is simulated for varying values of GaN thickness (50 -2000 nm) and GaN/SCD TBR values (3.1-20 m2K/GW). Simulation output showed reducing GaN thickness provides a better heat extraction from the bottom of the device, however, only up to an optimum thickness, going thinner leads to higher device temperature (fig 3a). The optimum thickness has a positive correlation with GaN/SCD TBR, i.e., as the TBR value increases the GaN layer optimal thickness also increases. For very thin GaN layer, a steep increase of ~ 200K is recorded near the hotspot in the Lateral temperature profile of the device (Fig 3b), going from the edge of the device (~500 K) towards the hotspot (~700 K). This demonstrates as the thickness reduces heat in unable to spread in the GaN layer before reaching the thermal interface and increases the device temperature. Owing to 500 K temperature at the side edge, further enhancements to the device are made by adding Poly-Crystalline Diamond (PCD) side walls at the edge of the device (Fig 1c) along with SCD at the bottom. The device is simulated for the same GaN layer thicknesses and TBR values (Fig 4a). For the optimized value of GaN layer (200 nm) and lowest TBR (3.1 m2K/GW) a significant drop of ~ 150 K is observed in the device temperature due to 3-way heat extraction. Lateral temperature profile (fig 4b) recorded ~330 K at GaN/PCD-sidewall interface and ~550 K at the hotspot which still showed a steep rise of ~200K, which illustrates that, lateral thermal resistance of GaN layer limits maximum heat extraction plausible from the edge of the device. Therefore, to extract heat from the hotspot region, an additional PCD layer with associated interface TBR layer is added on top of the device. The additional heat extraction path led to a temperature reduction of 70 K. Consequently, using side, top, and bottom heat extraction pathways and optimization of GaN layer in correlation with TBR, an AlGaN/GaN HEMT operating at a power density of 40W/mm are simulated with temperature ~470-500 K. [1] Fletcher, A. Superlattices and Microstructures vol. 109 519–537 (2017). [2] Gaska, R. et al. IEEE ELECTRON DEVICE LETTERS vol. 18 (1997) [3] Chen, G. PhD. et. al. Annual review of heat transfer. Volume 18 [4] Jessen, G. H. et al. IEEE Compound Semiconductor Integrated Circuit Symposium, CSIC 271–274 (2006)

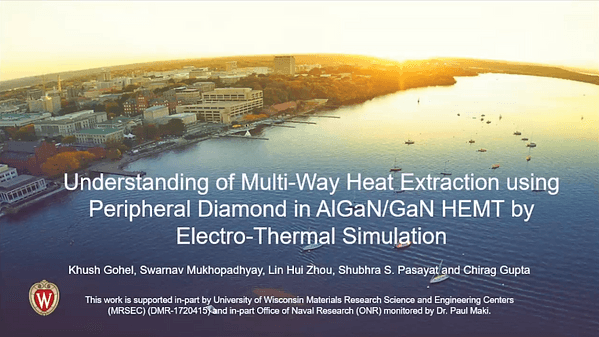

Understanding of Multi-Way Heat Extraction Using Peripheral Diamond in AlGaN/GaN HEMT by Electrothermal Simulations
