Gallium oxide (Ga2O3) has an extremely wide bandgap, predicted high breakdown field, and can be produced from melt crystal growth techniques making it attractive for next-generation high-power electronics. It is well-known that the optical transitions in monoclinic β-Ga2O3 are anisotropic; the threshold energies for carrier generation using linearly polarized light depend on crystallographic direction. Using transmission optical spectroscopy, which probes subtly differently than e.g. ellipsometry, we have investigated the optical transitions of Fe doped [100] β-Ga2O3 as function of elevated temperature and have documented the dramatic bandgap narrowing with temperature which was recently explained using density functional theory [1]. Here we also report on the anisotropy and doping dependencies of the disorder-induced Urbach tails in the optical absorption coefficient for β-Ga2O3. Band tails in semiconductors depend on both static disorder and the dynamic disorder induced by phonons mediated by the electron-phonon coupling. Given the low symmetry of β-Ga2O3 and its strong electron-phonon coupling, we predicted that the Urbach tails should also exhibit significant anisotropy. We show that this is indeed the case, and also provide results for UID- and Fe-doped crystals both of which exhibit larger band tails as expected. References [1]. Lee, C., Rock, N.D., Islam, A., Scarpulla, M.A. and Ertekin, E., 2023. Electron–phonon effects and temperature-dependence of the electronic structure of monoclinic β-Ga2O3. APL Materials, 11(1), p.011106.

EMC 2023

Temperature Dependence of Bandgap and Anisotropy in Urbach Tails in β- Ga2O3

absorption coefficient

temperature dependence

band tails

gallium oxide

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC), which will be held during the same week, from June 20-23. This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

![](https://assets.underline.io/uploads/markdown_image/1/image/eb26c24a18d5d1030616afa4f993cf89.png)

<a href="https://www.mrs.org/docs/default-source/meetings-events/mrs-conference-services/2021/emc-2021/2021-emc-program-at-a-glance-6-16-21.pdf?sfvrsn=e39f950c_4">Latest Program-at-a-Glance</a>

<a href="https://drive.google.com/file/d/1eiS1ao4p83VNy8xgHs3Rls7gTQjx7Rc4/view?usp=sharing">Full Program with Abstracts</a>

EMC 2021

technical paper

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC). This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials.

Scanning gate microscopy (SGM) is a powerful imaging technique that allows for the characterization of the coherent electron flow in low-dimensional structures such as quantum constrictions and short quantum wires. The technique utilizes the effect of a charged scanning probe on the electron flow, resulting in a signal that can be related to the local density of states of the device. However, obtaining meaningful information from SGM measurements can be challenging due to the stringent conditions required for the technique to be effective. In this study, we propose a novel approach for using SGM to estimate the disordered background potential of quantum constrictions by utilizing a machine learning-based method. This approach involves matching SGM signals obtained through a weak perturbation approach to a corresponding background potential and then using transfer learning to experimentally obtained SGM images. By studying the potentials that a single electron would experience, this approach enables the characterization of the disordered potentials and their impact on the electron flow in quantum constrictions. For this study, we performed a comprehensive investigation of the electron flow in a quantum point contact (QPC) fabricated on an InAlAs/InGaAs/InAlAs quantum well. The electron density of the QPC was determined to be 7.2×1011 cm-2 and the mobility was measured to be 7.4×104 cm2/V.s by performing Shubnikov-de Haas measurements at a temperature of 280 mK. This corresponds to an electron path of 1.2 um. On the theoretical side, we employed the non-equilibrium Green's function approach to obtain images of the electron flow in the QPC. In order to estimate the background potential in the QPC, we employed a swarming search algorithm. This algorithm utilized a population of different potentials to compute an SGM signal, and only those potentials that were closest to the experimental measurement were selected for further analysis. Our results reveal a strong correlation between low conductance values and more granular and rougher potentials. This is consistent with the expectation that low conductance states are associated with Fermi levels closer to the background potential level. To further investigate the properties of the estimated background potential, we have employed clustering analysis. This analysis revealed that the average cluster radius is comparable to the Bohr radius of InGaAs, providing insight into the size and spatial distribution of the potential fluctuations in the quantum constriction. Additionally, we have estimated the static alloy potential of the quantum constriction using our proposed approach. Comparison of the estimated potential with the SGM images showed good spatial agreement, indicating the accuracy of our approach in characterizing the potential landscape of quantum constrictions. Our results provide insight into the underlying physics of electron flow in low-dimensional systems and demonstrate the potential of combining experimental and theoretical approaches for characterizing quantum point contacts. They also provide a new understanding of the relationship between the conductance of a quantum constriction and the underlying potential landscape and demonstrate the potential of our proposed approach for characterizing the static alloy potential in quantum constrictions.

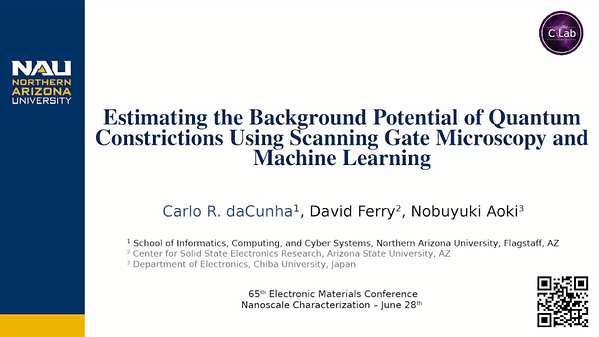

Estimating the Background Potential of Quantum Constrictions Using Scanning Gate Microscopy and Machine Learning
