In this work an approach for a direct experimental comparison of the application-oriented performance between two high current GaN DC/DC converters based on 7 mΩ, 100 V GaN HEMTs in a commercial off-the-shelf top-cooled package and 5 mΩ, 100 V GaN HEMTs embedded in a thermally-optimized single-chip package is given. The two packaging versions are compared by a maximally identical implementation of the power and gate loops in a 48 V, 300 kHz buck converter with two parallel GaN HEMTs. In the single-chip package the die is directly mounted on a 12×6 mm2 copper-heat spreader offering a significantly lower thermal resistance to heatsink (1.69 K W−1) in comparison to the commercial off-the-shelf version (2.45 K W−1). For a direct benchmark, the COTS-based converter has an identical power-loop to the SCP-version with a novel gate-drive concept. Both versions have an efficiency of 96.8 % at 65 A output current (output power: 1.5 kW), while the commercial off-theshelf version has a better efficiency for lower currents, due to its better hard-switching Figure-of-Merits and therefore lower switching losses and reaches an output current of up to 80 A (output power: 1.75 kW). A detailed analytical loss breakdown for the different transistors in dependence of the temperature and output current is given to proof the measured current point, where the efficiencies of both converters are identical, since the higher switching losses of the SCP version are compensated by lower conduction losses at higher currents and temperatures compared to the smaller COTS transistor. Finally, an outlook on further improvements for reaching higher output currents and potential converters for a more fair comparison of different thermally optimized SMD packages are given.

IEEE WiPDA 2022

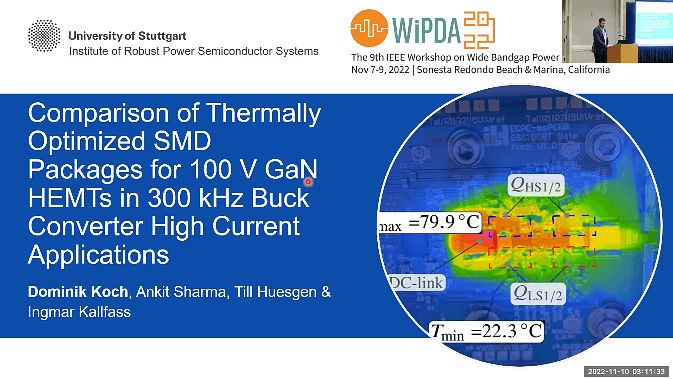

Comparison of Thermally Optimized SMD Packages for 100 V GaN HEMTs in 300 kHz Buck Converter High Current Applications

loss breakdown

parallelization

gan hemts

The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

**Topics of interest**

* Heteroepitaxial & Bulk Materials Growth
* Gate Dielectrics & Surface Passivation
* Device Structures & Fabrication Techniques
* Device Characterization & Modeling
* Very-High Efficiency or Compact Converters
* Safe Operating Areas of Wide Bandgap Devices, Including Short Circuit, Spike, & Transient Tolerance
* Harsh Environment (High Temperature) Operation & Reliability
* Packaging Power Modules & ICs
* Hard-Switched & Soft-Switched Application Analysis
* Gate Drive & Other Auxiliary Circuits
* High-Performance Passive Components
* Applications in Renewable Energy & Energy Storage, Transportation, Industrial Drives, & Grid Power Systems
* Wide Band Gap System Design Philosophies & Strategies
* Radio Frequency (RF) GaN (New)
* Technology Roadmap of Wide Bandgap Including Devices, Applications and Packaging (New)

### Please select the button below to view and download the session papers. The Virtual Proceedings PDF can be downloaded [here.](https://drive.google.com/file/d/171y2_u63V-pc9-bC-eZgHLzJou2oCfST/view?usp=sharing)

[![](https://assets.underline.io/uploads/markdown_image/1/image/c8e1b0a2881d3bb0a75ece4761f43c9f.png)](https://drive.google.com/drive/folders/1GWEFLzH6K4aUBaJiBFJDw4x9sKLTl6-g?usp=sharing)


This event requires a registration to attend, please register [here](https://web.cvent.com/event/536cea3d-4c0d-4d50-8939-529979d80785/summary) to purchase a ticket.

IEEE WiPDA 2021

The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

technical paper

Download the proceedings [here](https://underline.io/events/372/lounge)


 The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

 **Topics of interest**
* Heteroepitaxial & Bulk Materials Growth
* Gate Dielectrics & Surface Passivation
* Device Structures & Fabrication Techniques
* Device Characterization & Modeling
* Very-High Efficiency Or Compact Converters
* Safe Operating Areas Of Wide Bandgap Devices, including Short Circuit, Spike, &Transient Tolerance
* Harsh Environment (High Temperature) Operation & Reliability
* Packaging Power Modules & ICs
* Gate Drive & Other Auxiliary Circuits
* High-Performance Passive Components
* Hard-Switched & Soft-Switched Application Analysis
* Applications in Renewable Energy & Energy Storage, Transportation, Industrial Drives, Grid Power Systems, Space and Aerospace
* Wide Bandgap System Design Philosophies & Strategies
* Radio Frequency (RF) GaN
* Technology Roadmap of Wide Bandgap Including Devices, Applications and Packaging

You must register to attend this event. If you haven't done so already, please use the link below to register for the event. All registered attendees will have access to the event site on November 4th.

Registration Is Required

With the development of SiC technology, the onresistance of discrete devices drops rapidly and can potentially replace the expensive power modules in high power converters. Unlike parallel discrete devices or a power module with built-in parallel dies, using a single device does not need to slow down the gate driver speed hence can achieve lower switching loss. However, there are still many challenges that need meticulous design considerations. This paper uses the 1200V TO-247-4 package device as an example to provide detailed guidance on device selection, loop optimization, insulation, thermal management, and mounting. A DC-DC converter design example is given with a very low loop inductance and excellent thermal performance. The aircooled hardware demonstrates the hardware limitation is around 40kW in an 800V to 470V buck operation. Normalized to the Ron of the two devices used, this demonstrates an extremely high power density figure of merit of PDFOM=87kW/cm2 .

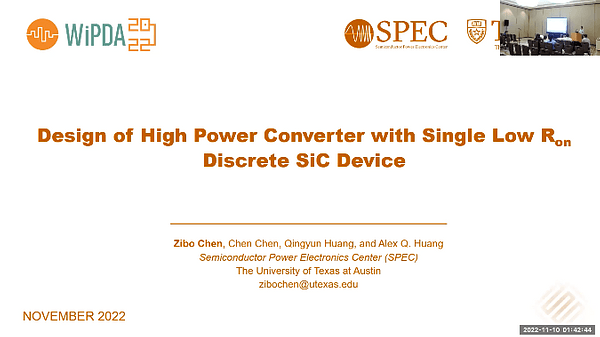

Design of High Power Converter with Single Low Ron Discrete SiC Device
