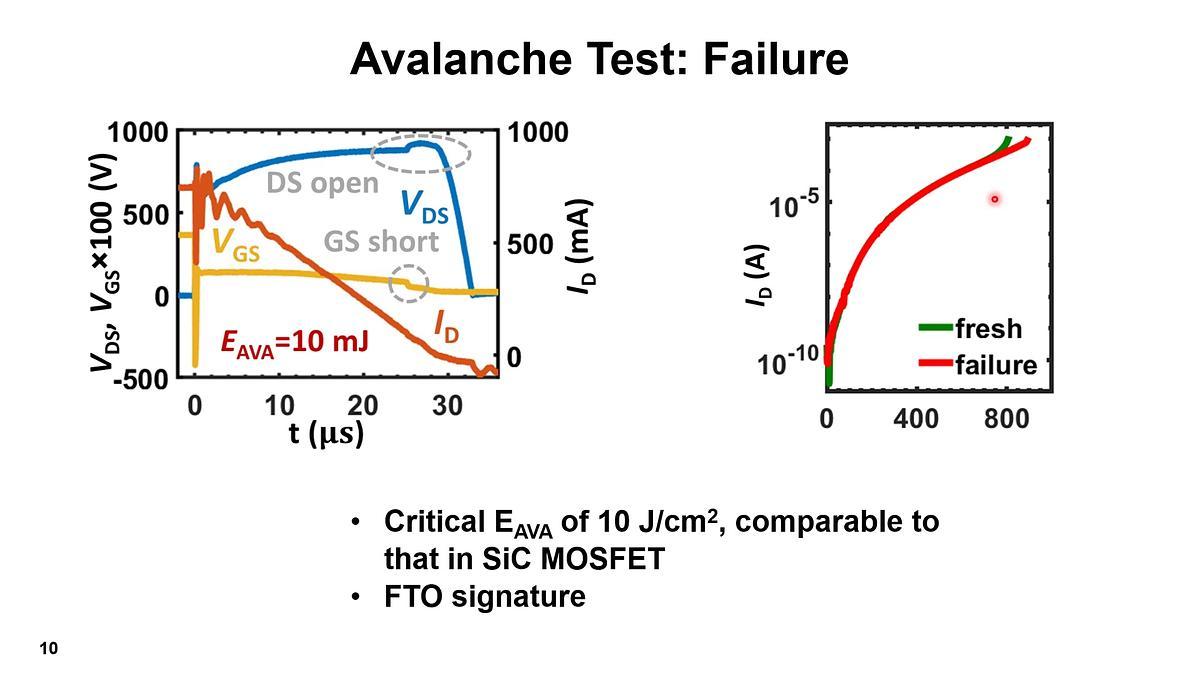

We report a record SC robustness of a novel vertical GaN Fin-JFET. This Fin-JFET has an 800 V avalanche breakdown voltage (BVAVA). The tSC is measured to be 30.5 us  at 400 V and 11.6 us  at BVAVA.  As far as we know, this is the first report of a power transistor with robust short-circuit ruggedness at BVAVA. The underlying mechanism is the unique avalanche-through-fin which is verified by TCAD simulation and UIS test. These results alleviate the concern of SC robustness of GaN devices and demonstrate the potential of vertical GaN Fin JFETs in future power applications.

IRPS 2022 Main Conference

Vertical GaN Fin JFET: A Power Device with Short Circuit Robustness at Avalanche Breakdown Voltage

power device robustness

vertical gan fin-jfet

short circuit

avalanche
