The understanding of magnetization reversal in STTMRAM cells is of considerable interest. We use time-resolved conductance measurement, micromagnetic simulations and modeling to study it. The samples are fabricated from proprietary supersoft free layers of high volume and low moment. The experiments reveal the oscillatory nature of the conductivity signature of the switching (see figure). Modeling indicates that the conductance oscillations arise from the domain wall motion that happens in the so-called precessional regime above the Walker breakdown, when the domain wall propagation involves back-and-forth motions on top of a global drift. We first extend a collective coordinate model, taking into account the position of the wall and the tilt of the in-plane component of the magnetization within the wall. The mean wall velocity and its oscillations can be understood from the continuous exchange of energy between these two degrees of freedom, and the work supplied by the STT. In discs of diameters 70-100nm, experiments identify several distinct switching paths that occur stochastically and lead to distinct switching durations, while in disks of diameter 40 nm much less variability is found. Micromagnetics is used to understand these switching paths. For disks with 40 nm of diameter, the wall sweeps through the disk in an almost monotonous manner regardless of the wall state (Bloch, Néel or more complex). Conversely at larger diameters, the manner in which the wall crosses the disk depends on the wall state, and sets the variability of the transition time during the switching. The wall oscillation and its advance are essentially stopped if and only if a Bloch line is nucleated from the edge of the wall. This leads to switching times that are usually long compared to the standard deviation; this is one of the main mechanisms determining the write error rate in the ultrafast switching regime. Our model is finally used to design sample specifications with shall lead to rather reproducible propagation times, of direct interest for magnetic memories.

MMM 2020

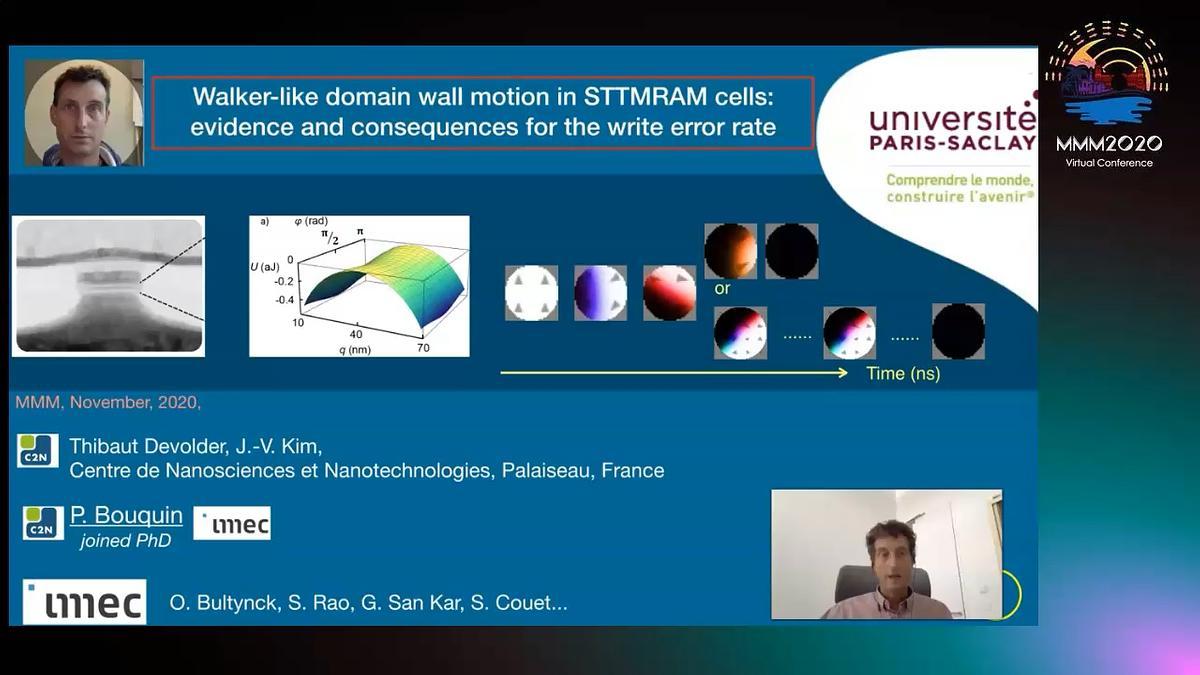

Walker-like domain wall motion in STTMRAM cells: evidence and consequences for the write error rate

**Please view our Welcome to MH21 video.**

<center>
<figure class="video_container">
	 <iframe src="https://screencast-o-matic.com/watch/cr1UYHV1pcz?v=6&ff=1&title=0&controls=1" width=826 height=526 frameborder="0" allowfullscreen="true"> </iframe>
</figure>
	</center>


**Walkthrough Video**

Here is a Walkthrough showing how to navigate the conference and network with others

<center>
<figure class="video_container">
	 <iframe src="https://screencast-o-matic.com/watch/cr1vnrV1paE?v=6&ff=1&title=0&controls=1" width=826 height=526 frameborder="0" allowfullscreen="true"> </iframe>
</figure>
	</center>




	 Organized by

<a href="https://mrs.org.sg/">
<img src="https://assets.underline.io/uploads/markdown_image/1/image/95d5789689d5f900b90e9fe54ea3cf0d.jpg"</a>



	 In association with

<a href="http://www.ntu.edu.sg/">
<img src="https://assets.underline.io/uploads/markdown_image/1/image/334cd171ad2fdee033c635b368e5e160.png"</a>
	<a href="https://www.nus.edu.sg/">
<img src="https://assets.underline.io/uploads/markdown_image/1/image/32e6f82c0440f7bb24c590f9f67821bd.png"</a>
		<a href="https://www.a-star.edu.sg/">
<img src="https://assets.underline.io/uploads/markdown_image/1/image/72557865b589cfa3d2a0243ffce4a270.png"</a>




	 Supported by

		 <a href="https://www.visitsingapore.com/mice/en/about-us/about-secb/">
<img src="https://assets.underline.io/uploads/markdown_image/1/image/6e679842ead62be522ba6a630b82d5c9.png"</a>

To access the MH 21 Conference, [please register](https://mh21.mrs.org.sg/event/da3f9651-429f-4763-81b2-ebd7311b6bc8/websitePage:206f7605-1731-41f9-8421-56d3890f398f)

MATERIALS FOR HUMANITY (MH 21)

MH 21 is arranged around 6 themes that focus attention on pressing needs that should be addressed to enhance the well-being of communities and provide a forum for presenting breakthrough discoveries.

technical paper

The 65th Annual Conference on Magnetism and Magnetic Materials (MMM 2020) was held in a virtual form. The COVID-19 pandemic, with its associated uncertainty about international travel and the ability to gather in large groups, meant that the Steering Committee decided to cancel the face-to-face meeting that had been planned in Palm Beach, Florida November 2-6, 2020.

We were reluctant to give up the benefits of meeting face-to-face, and know that shifting to a virtual conference is a significant change for this community. Nevertheless, we are first and foremost concerned about the health and safety of all our Conference participants and their loved ones on returning home after travelling.

The MMM 2020 Steering Committee was working exceptionally hard, along with our sponsors, the IEEE Magnetics Society and AIP Publishing, to make this event serve the needs of our participants, who live in time zones all around the globe, in the best possible way.

You need a ticket to explore this event.

If you have already registered for MMM 2020, and you have already created an account, then you
just need to login (above).

If you have already registered for MMM 2020, but you have not yet created an account, then you
need to click on &quot;create an account&quot; (above) and then login.

Forgot your password? Go to
https://www.underline.io/log-in

If you have not yet registered for MMM 2020 but would like to do so, go to
https://magnetism.org/register

Still need help? Contact our team!


Chiral magnetic domain walls stabilised by the interfacial Dzyaloshinskii-Moriya interaction are of great technological interest since the latter favors a given Néel wall with fast current-driven domain wall propagation [1]. We study experimentally by Kerr microscopy, numerically and analytically chiral magnetic domain wall motion in the creep regime under easy-axis driving fields in materials with a perpendicular magnetic anisotropy with an in plane magnetic field. We study two samples: one asymmetric [Pt(3nm)/Co(0.6nm)/Ta(3nm)] and one symmetric [Pt(3nm)/Co(0.6nm)/Pt(3nm)]. Brillouin light scattering has been used to determine the DMi constant: D = -1.2mJ/m2 and D = 0 mJ/m2 in the asymmetric and symmetric case respectively. As expected from the DMi constant measured by BLS, the DW velocity curves as a function of the in-plane magnetic field are qualitatively different. In the asymmetric system, we could not reach a minimum of the velocity v within our experimental in plane field range (Fig 1a), consistently with the DM field = 220 mT estimated from the BLS measurements. For the symmetric system, a slight asymmetry is observed with a minimum around µ0Hip = 0 mT (Fig 1c). We detail the creep regime analysis by studying the evolution of the depinning field from the creep regime to the flow regime for different µ0Hip by studying the linear variation of ln(v) vs (μ0Hz)−1/4. In the asymmetric case the slope is constant (Fig 1b) unlike in the symmetric case (Fig 1d): when |µ0Hip| < 50 mT the DW goes from left-handed Néel to Bloch to right-handed Néel wall and the slope varies while for larger fields the slope is constant. We can extrapolate the evolution of the depinning field which is strongly influenced by the in-plane biasing field. In the asymmetric system, we observe an excess of velocity with respect to the creep law close to the depinning field (Fig 1d, explained by the increase of the size of the deterministic relaxation close to the depinning transition [2]. The stronger the DMi field, the more this excess of velocity occurs at larger out-of-plane field values.References: [1] A. Thiaville, et al. EPL 100, 57002 (2012) [2] N. B. Caballero, et al., Phys. Rev. B 96, 224422 (2017).

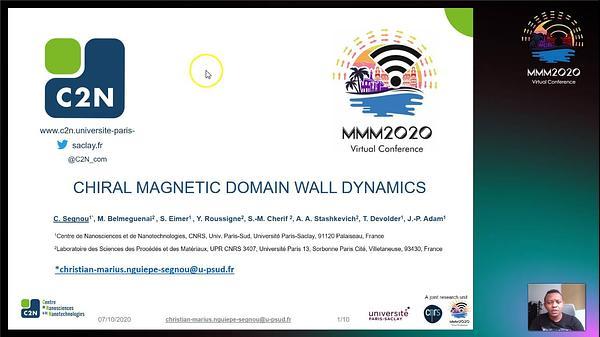

Chiral magnetic domain walls dynamics in creep regime
