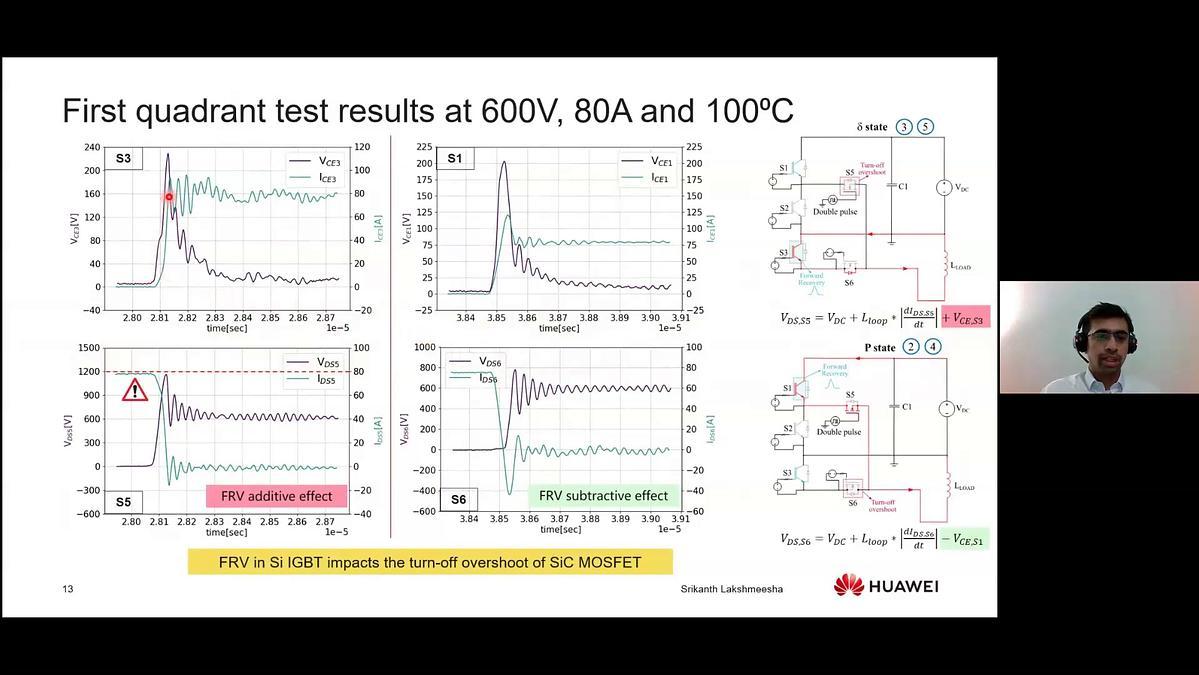

The work presented in this paper investigates the switching behavior of the power semiconductors at a hybrid Si/SiC ANPC circuit, where the Si IGBTs switch at line frequency while the SiC MOSFETs switch at PWM frequency. In particular, this work quantifies the impact of the forward recovery voltage (FRV) originated in the bipolar devices, i.e., IGBTs and freewheeling diodes, during the transition from non- to full-conduction. Such transition being originated by the on/off commutation of the SiC devices. The obtained experimental results also show the impact of various operational and environmental factors on the FRV magnitude and evolution. The evaluation done indicates that FRV effects must be taken into account both in terms of power loss dissipation and voltage overshoots when using hybrid Si/SiC ANPC topology.

IEEE WiPDA 2021

Switching behavior of a hybrid Si-IGBT and SiC MOSFET based ANPC Topology
