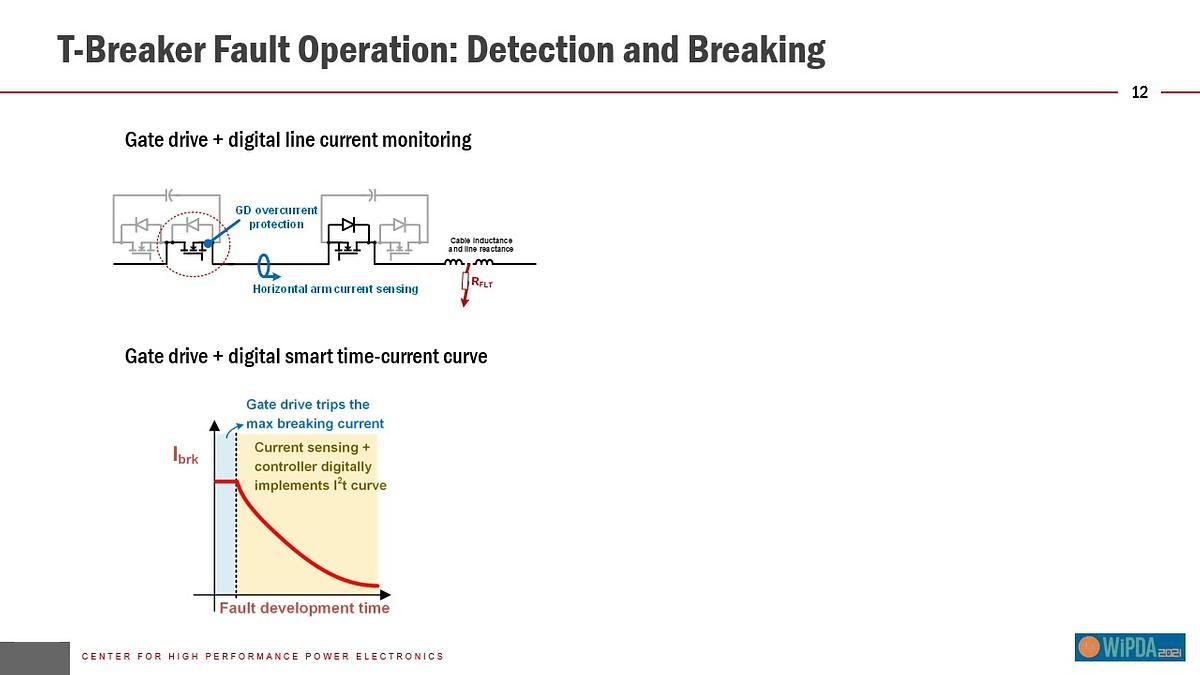

This paper presents the hardware development of a 1-kV, 500-A solid state circuit breaker (SSCB) based on the newly proposed T-type Modular Dc Circuit Breaker (T-Breaker) system. The novel T-Breaker is a paradigm shift from traditional solutions in that it integrates fault current management and transient compensation functions in one system. The demonstrated T-Breaker system has a modular structure with two SiC-based half bridge sub-modules on each arm. The prototype has been tested to be 99.58% efficient at 500 A and breaks up to 5 kA of fault current.

IEEE WiPDA 2021

Development of a 1 kV, 500 A, SiC-Based T-Type Modular Dc Circuit Breaker (T-Breaker)

The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

**Topics of interest**

* Heteroepitaxial & Bulk Materials Growth
* Gate Dielectrics & Surface Passivation
* Device Structures & Fabrication Techniques
* Device Characterization & Modeling
* Very-High Efficiency or Compact Converters
* Safe Operating Areas of Wide Bandgap Devices, Including Short Circuit, Spike, & Transient Tolerance
* Harsh Environment (High Temperature) Operation & Reliability
* Packaging Power Modules & ICs
* Hard-Switched & Soft-Switched Application Analysis
* Gate Drive & Other Auxiliary Circuits
* High-Performance Passive Components
* Applications in Renewable Energy & Energy Storage, Transportation, Industrial Drives, & Grid Power Systems
* Wide Band Gap System Design Philosophies & Strategies
* Radio Frequency (RF) GaN (New)
* Technology Roadmap of Wide Bandgap Including Devices, Applications and Packaging (New)

### Please select the button below to view and download the session papers. The Virtual Proceedings PDF can be downloaded [here.](https://drive.google.com/file/d/171y2_u63V-pc9-bC-eZgHLzJou2oCfST/view?usp=sharing)

[![](https://assets.underline.io/uploads/markdown_image/1/image/c8e1b0a2881d3bb0a75ece4761f43c9f.png)](https://drive.google.com/drive/folders/1GWEFLzH6K4aUBaJiBFJDw4x9sKLTl6-g?usp=sharing)


This event requires a registration to attend, please register [here](https://web.cvent.com/event/536cea3d-4c0d-4d50-8939-529979d80785/summary) to purchase a ticket.

The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

technical paper

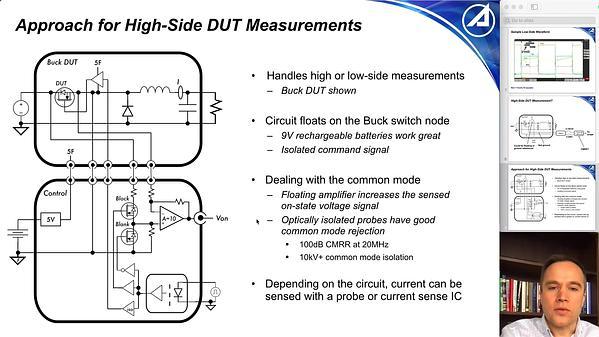

The power electronics industry is adopting Gallium Nitride (GaN) devices for use in switching power converters, and engineers need to understand how GaN HEMTs perform in-circuit. Given that dynamic resistance varies with operating conditions, in-circuit characterization provides an invaluable measurement tool. Aerospace has developed a method that works independently of the power stage topology, using inexpensive and widely available measurement hardware. Instead of the traditional clamp, the circuit actively controls the open-loop power-stage and directly senses the on-state voltage. This approach enables measurement in the application’s power stage, which includes the true current-voltage loci and parasitic elements, providing more insight than pulsed IV or double pulse measurements.
