This paper presents a comparison between the operation of a 13.56 MHz Class Phi2 inverter using one or multiple gallium nitride (GaN) switching devices in parallel. In high-frequency, high-power applications such as plasma generation, the GaN device is advantageous due to its low switching losses and on-resistance, evident in
simulations. However, as the frequency and power increase, the power dissipation in the devices increases. Using device parallelization for current splitting, we can reduce the losses, which leads to lower device heating, thereby reducing device stress and enhancing the overall thermal management. This paper shows that current splitting effectively reduces the temperature rise across an individual switching device. Using the optimal number of paralleled devices, the steady-state case temperature of each device is almost halved in a multi-device inverter compared to a single-device inverter.

IEEE WiPDA 2021

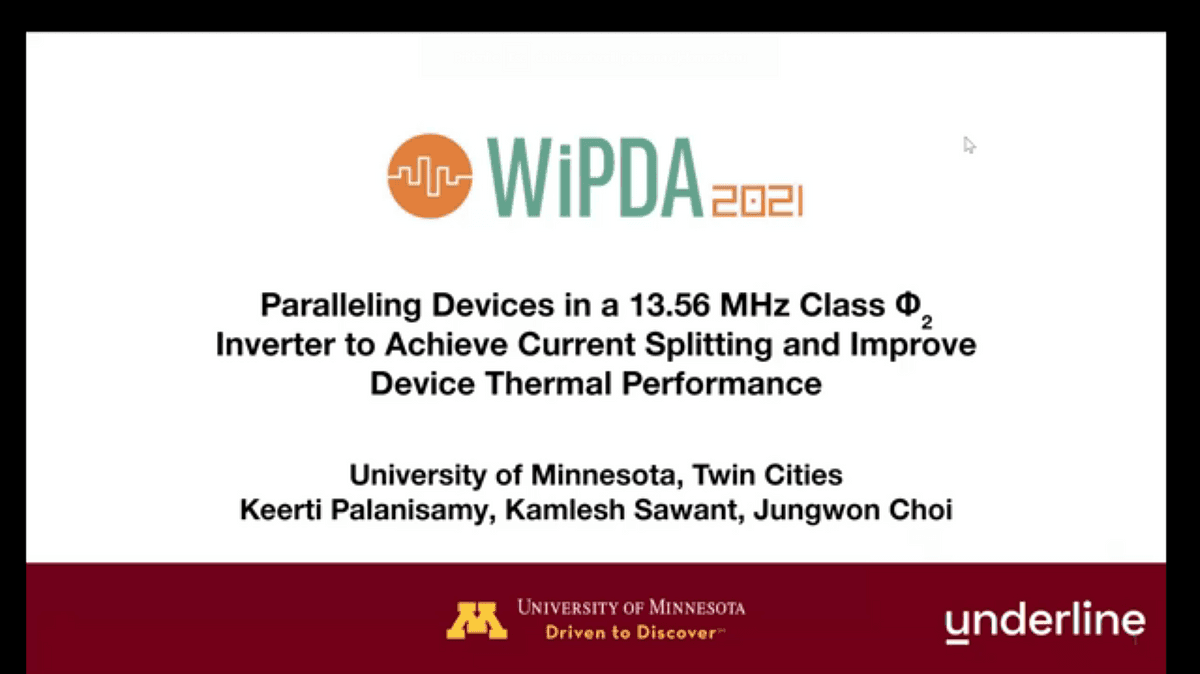

Paralleling Devices in a 13.56 MHz Class Φ2 Inverter to Achieve Current Splitting and Improve Device Thermal Performance

Download the proceedings [here](https://underline.io/events/372/lounge)


 The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

 **Topics of interest**
* Heteroepitaxial & Bulk Materials Growth
* Gate Dielectrics & Surface Passivation
* Device Structures & Fabrication Techniques
* Device Characterization & Modeling
* Very-High Efficiency Or Compact Converters
* Safe Operating Areas Of Wide Bandgap Devices, including Short Circuit, Spike, &Transient Tolerance
* Harsh Environment (High Temperature) Operation & Reliability
* Packaging Power Modules & ICs
* Gate Drive & Other Auxiliary Circuits
* High-Performance Passive Components
* Hard-Switched & Soft-Switched Application Analysis
* Applications in Renewable Energy & Energy Storage, Transportation, Industrial Drives, Grid Power Systems, Space and Aerospace
* Wide Bandgap System Design Philosophies & Strategies
* Radio Frequency (RF) GaN
* Technology Roadmap of Wide Bandgap Including Devices, Applications and Packaging

You must register to attend this event. If you haven't done so already, please use the link below to register for the event. All registered attendees will have access to the event site on November 4th.

Registration Is Required

IEEE WiPDA 2022

The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

technical paper

The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

**Topics of interest**

* Heteroepitaxial & Bulk Materials Growth
* Gate Dielectrics & Surface Passivation
* Device Structures & Fabrication Techniques
* Device Characterization & Modeling
* Very-High Efficiency or Compact Converters
* Safe Operating Areas of Wide Bandgap Devices, Including Short Circuit, Spike, & Transient Tolerance
* Harsh Environment (High Temperature) Operation & Reliability
* Packaging Power Modules & ICs
* Hard-Switched & Soft-Switched Application Analysis
* Gate Drive & Other Auxiliary Circuits
* High-Performance Passive Components
* Applications in Renewable Energy & Energy Storage, Transportation, Industrial Drives, & Grid Power Systems
* Wide Band Gap System Design Philosophies & Strategies
* Radio Frequency (RF) GaN (New)
* Technology Roadmap of Wide Bandgap Including Devices, Applications and Packaging (New)

### Please select the button below to view and download the session papers. The Virtual Proceedings PDF can be downloaded [here.](https://drive.google.com/file/d/171y2_u63V-pc9-bC-eZgHLzJou2oCfST/view?usp=sharing)

[![](https://assets.underline.io/uploads/markdown_image/1/image/c8e1b0a2881d3bb0a75ece4761f43c9f.png)](https://drive.google.com/drive/folders/1GWEFLzH6K4aUBaJiBFJDw4x9sKLTl6-g?usp=sharing)


This event requires a registration to attend, please register [here](https://web.cvent.com/event/536cea3d-4c0d-4d50-8939-529979d80785/summary) to purchase a ticket.

In this work, 15 kV 4H-SiC Split-Gate Vertical Planar MOSFETs (SG-MOSFET) are demonstrated for the first time. Both the traditional MOSFET and SG-MOSFET were fabricated on the same 6-inch SiC wafer and achieved maximum breakdown voltages (BV) of 15930 V and 15080 V, respectively. This is the first demonstration of the split gate architecture on SiC for voltage ratings above 10 kV, and this BV was achieved using a Hybrid-Junction Termination Extension (JTE) edge termination. The fabricated SG-MOSFETs showed a reduction in gate charge as well as no significant deviation in forward conduction and blocking behavior when compared to their MOSFET counterparts. These results display the SG-MOSFET’s potential for lower switching power losses in ultra-high voltage devices without compromising device static performance. In the following text, the layout, static performance, and gate charge of the MOSFET and SG-MOSFET are described to show the exciting potential of the high voltage SG-MOSFET.

Demonstration of High Voltage (15kV) Split-Gate 4H-SiC MOSFETs

Several designs of 1.2kV-rated 4H-SiC JBS diode integrated MOSFETs (JBSFETs) have been successfully fabricated in order to increase the 3rd quadrant device performance while having negligible effect on both the forward and blocking modes of operation. Incorporating the Schottky area in an efficient manner to improve overall device performance has been one of the critical paths in the development of 4H-SiC JBSFETs. Device design, fabrication, and electrical performances are discussed in this presentation.

Increased 3rd Quadrant Current Handling Capability of 1.2kV 4H-SiC JBS Diode-Integrated MOSFETs (JBSFETs) with Minimal Impact on the Forward Conduction and Blocking Performances

SuperCascode Power Switches (SCPS) use series-connected Low Voltage (LV) - High Current (HC) devices in a serial string to realize High Voltage (HV) – HC power switches. Cascading of SuperCascodes (CSC) is a modification of the earlier proposed SCPS concept aimed to scale the switching topology to very high (>100 kV) levels or applied to optimize previously reported HV SCPSs to achieve higher switching speed, reduced balancing network size and lower switching losses. However, certain practical challenges create engineering constraints in design which will be discussed and highlighted in this paper. Firstly, for a serial string of devices, scaling the devices adds stray inductances which lead to delays in triggering serial devices, de-synchronization of triggering and unexpected overvoltages that limit scalability. This paper provides an analytical model to enable optimization through simulation and provides experimental data verifying the model.

Analytical Method to Optimize the Cascaded SuperCascode Power Switch Balancing Network

Bidirectional, or four-quadrant switches (FQS) can be designed as back-to-back MOSFETs connected in common-drain (CD) or common-source (CS) topologies. CD-FQS and CS-FQS assembled from discrete 1.2 kV commercially available SiC Power MOSFETs were characterized to obtain capacitance and switching loss values. The CD-FQS exhibited a 1.6x larger turn-off loss compared to the CD-FQS. The CS-FQS exhibited a lower input capacitance, while the CD-FQS exhibited a lower output and reverse transfer capacitance.

Comparison of the Capacitances and Switching Losses of 1.2 kV Common-Source and Common-Drain Bidirectional Switch Topologies

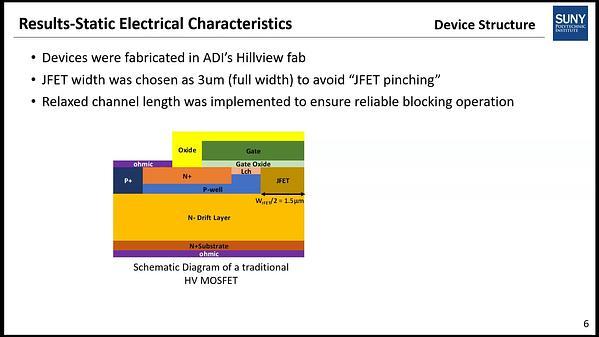

This paper reports the design and process flow of a fully integrated yet isolated low-voltage (LV) CMOS with high voltage (HV) lateral power MOSFET on a 6-inch 4H-SiC substrate for the development of HV SiC power ICs. The epi stack (N-epi/P-epi on N+ substrate) for the development of the power ICs was optimized to accommodate and isolate the HV devices and circuits from their LV counterparts. The devices reported in this work were fabricated at 150mm, production grade-Analog Devices Inc. (ADI) Hillview fabrication facility located in San Jose, CA. The HV lateral NMOSFET from this work demonstrated a breakdown voltage (BV) of 620V and a specific on-resistance (Ron,sp) of 9.73 mΩ⸱cm2 at gate-source voltage (Vgs) of 25V. A single gate oxide and ohmic process were used to fabricate the HV NMOS and LV CMOS devices and circuits. Junction isolation was implemented for isolating the HV and the LV blocks for the design of HV Power ICs. Finally, this work executed an HV capable three-metal layered back-end-of-the-line (BEOL) process, an imperative provision for developing reliable and robust power ICs. For future high-temperature applications, the static performances of the devices are characterized and are reported up to 200oC.
