Europium chromite (EuCrO3) is a multifunctional material presenting physical and chemical properties that are strongly influenced by the rare-earth ion lying on the A-site of an orthorhombic distorted perovskite structure [1]. EuCrO3 does also present a variety of spin interactions that are highly dependent on temperature (T), leading to a spin-canting antiferromagnetic phase with a Néel temperature (TN) close to about 170 K [2]. In the present work, the dynamics of the spins and the structural parameters of as prepared and thermal treated (T = 1073 K, time = 24 h) samples of Eu1−xFexCrO3 (x = 0, 0.10 and 0.20) were investigated. The ac-magnetic susceptibility (χac) was measured near TN for frequencies (f) in the range 10-104 Hz, magnitude of the ac magnetic field of 10 Oe and for 5 ≤ T ≤ 300 K. X-ray diffraction data were used for measuring the lattice parameters (a, b and c) and the bonding angle θB (Cr3+–O(2)–Cr3+), for 100 ≤ T ≤ 300 K. The maximum in χac was found to shift to higher values of T for increasing values of f. The Voguel-Fulcher law was used for analyzing χac yielding values for the characteristic relaxation time τ0, activation energy Ea/kB and TG, respectively, in the ranges 1.1 - 4.2 ns (3.1 - 3.6 ps), 29.4 - 45.5 K (46.5 - 47.2 K) and 159 - 166 K (170 -173 K) for the as prepared (thermal treated) samples. The super-exchange parameter J ~ cos4[(180-θB)/2]/d7, where d is the length of the Cr-O(2) bound [3], was also obtained for both as prepared and thermal treated samples yielding a good correlation of the values of J with the corresponding ones of TG. Work partially supported by CNPq, CAPES, FACEPE and FINEP (Brazilian Agencies).References: 1 - J. M. Marín Ramírez, H. V. S. Pessoni, A. Franco Jr. and F.L.A. Machado, J. Alloys Compd., Vol. 690, p.315 (2017). 2 - D. R. Ratkovski, J. M. Marín Ramírez, P. R. T. Ribeiro et all., J. Alloys Compd., Vol. 724, p.501 (2017). 3 - J. S. Zhou and J. B. Goodenough, Phys. Rev. B, Vol. 77, p.132104 (2008).

MMM 2020

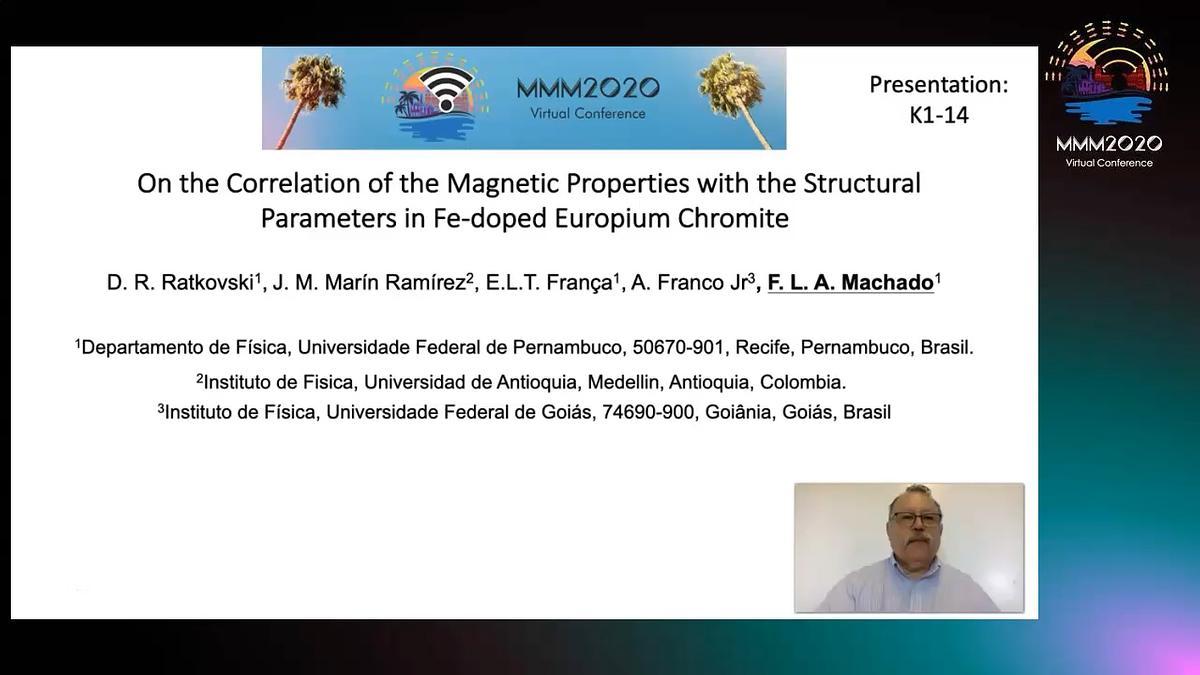

On the Correlation of the Magnetic Properties with the Structural Parameters in Fe-doped Europium Chromite

The 65th Annual Conference on Magnetism and Magnetic Materials (MMM 2020) was held in a virtual form. The COVID-19 pandemic, with its associated uncertainty about international travel and the ability to gather in large groups, meant that the Steering Committee decided to cancel the face-to-face meeting that had been planned in Palm Beach, Florida November 2-6, 2020.

We were reluctant to give up the benefits of meeting face-to-face, and know that shifting to a virtual conference is a significant change for this community. Nevertheless, we are first and foremost concerned about the health and safety of all our Conference participants and their loved ones on returning home after travelling.

The MMM 2020 Steering Committee was working exceptionally hard, along with our sponsors, the IEEE Magnetics Society and AIP Publishing, to make this event serve the needs of our participants, who live in time zones all around the globe, in the best possible way.

You need a ticket to explore this event.

If you have already registered for MMM 2020, and you have already created an account, then you
just need to login (above).

If you have already registered for MMM 2020, but you have not yet created an account, then you
need to click on &quot;create an account&quot; (above) and then login.

Forgot your password? Go to
https://www.underline.io/log-in

If you have not yet registered for MMM 2020 but would like to do so, go to
https://magnetism.org/register

Still need help? Contact our team!


technical paper

Ionic modulations of magnetic properties, controlled by a low voltage, are attractive for future energy efficient magnetic devices. [1,2] We study the magneto-ionic control of thin iron films with uniaxial in-plane anisotropy, which is induced by oblique sputtering. The polycrystalline iron films are natively oxidized to yield iron oxide/iron films suitable for magneto-ionic manipulation by electrolytic gating in alkaline electrolyte. [3] Angle resolved magnetic measurements reveal a uniaxial anisotropy (Fig.1 ). In the pristine state (Fig. 1a,b, black curves), the remanence and coercivity along the hard axis are enhanced, due to the formation of a blocked magnetic state resulting from interactions of the charged Néel walls. [4] A voltage-controlled transformation of the FeOx layer into metallic Fe upon electrolytic gating leads to a drastic decrease in coercivity in all directions (Fig. 1a, blue curve). At the same time, the remanence remains unchanged for angles close to the easy axis but almost vanishes in the vicinity of the hard axis upon the reduction process (Fig. 1b, blue curve). Anhysteretic measurements along the hard axis revealed that the anisotropy increases upon voltage application. The unexpected finding of an inverse anisotropy-coercivity relationship is further studied by investigating the magnetic microstructure by in-situ Kerr microscopy. We find a significant increase in domain size by 60% upon reduction. We attribute the observed coarsening of the magnetic microstructure to the anisotropy-related increase in the domain wall energy. At the same time, the anisotropy increase causes a decrease of the Néel wall tails. Both effects will result in a weakening of the Néel wall interactions during voltage application, which can explain the observed magnetic de-blocking, and thus, the collapse of remanence and coercivity. [5]References: [1] C. Navarro-Senent, A. Quintana, E. Menéndez, E. Pellicer, and J. Sort, APL Materials 7, 030701 (2019). [2] A. Molinari, H. Hahn, and R. Kruk, Advanced Materials 31, 1806662 (2019). [3] K. Duschek, M. Uhlemann, H. Schlörb, K. Nielsch, and K. Leistner, Electrochemistry Communications 72, 153 (2016). [4] A. Hubert and R. Schäfer, Magnetic Domains (Springer Berlin Heidelberg, Berlin, Heidelberg, 1998). [5] J. Zehner, I. Soldatov, S. Schneider, R. Heller, N. B. Khojasteh, S. Schiemenz, S. Fähler, K. Nielsch, R. Schäfer, K. Leistner, submitted

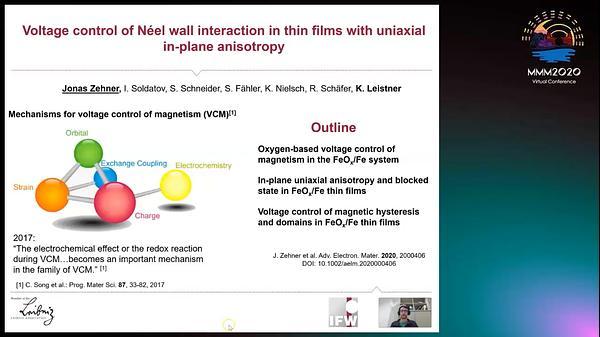

Voltage control of Néel wall interaction in thin films with uniaxial in-plane anisotropy
