Memristors have been at the forefront of nanoelectronics research for the last decade, offering a valuable component to reconfigurable computing.
Over this time period a number of publications have studied most of their aspects, generally centering around their static state-dependent programmability.
In the present work, the behavior of metal-oxide memristors under a noninvasive
AC perturbation in a range of frequencies is studied. Metal-oxide memristors present a variable cut-off frequency when their state is switched.
Also, they are found to behave as RC low-pass filters and thus can be used as reconfigurable filters.
The usable reconfigurability window of the devices can be tailored to encompass specific frequency ranges by amending the devices’ capacitance, through engineering of its geometrical characteristics, such as area and thickness. Furthermore, by changing the active material of the device the behavior remains consistent, pointing to a unified behavior across metal-oxide memristors, irrespective of material used. This study provides useful insights for the eventual usage of devices in AC circuits and extends current knowledge by characterising their frequency dependent characteristics.

Materials Challenges for Memory

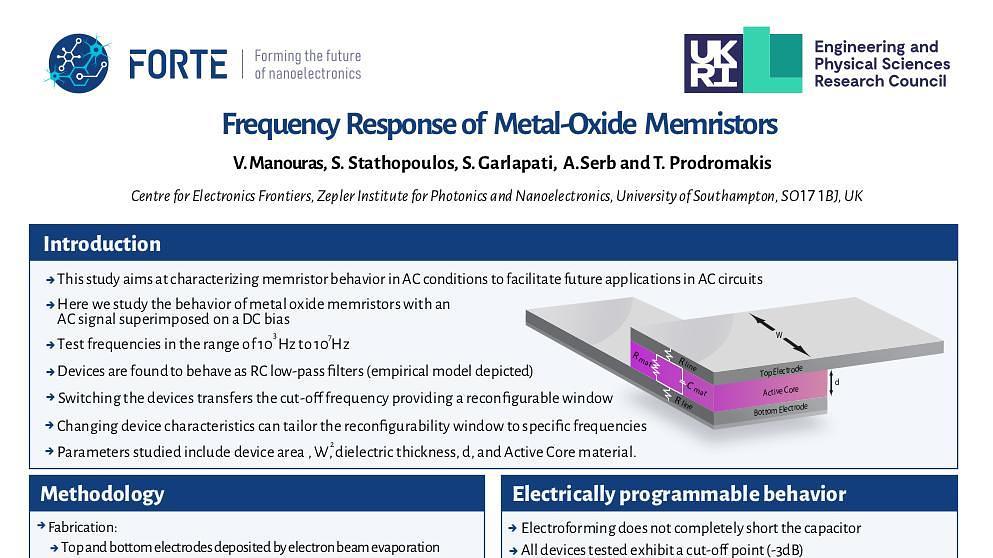

Frequency Response of Metal-Oxide Memristors
