The Extended Digital Thread (EDT) project in the MBE Program has recently explored research and standards opportunities in augmented reality (AR) for smart manufacturing systems (SMS). This presentation introduces our latest thinking behind trends in standards development for spatial representations in product systems with an emphasis on mixed reality (XR) application development. The presentation features (1) a solution for coordinating inspection data to design data through knowledge graphs, (2) concepts for porting this mapping within an AR environment, and (3) preliminary plans for conducting baseline measurements for asset tracking technologies. Fundamental to each of these concepts is standards. Standards are critical for harmonizing the latest XR development with SMS technologies at scale.

TEAR 3M 2021

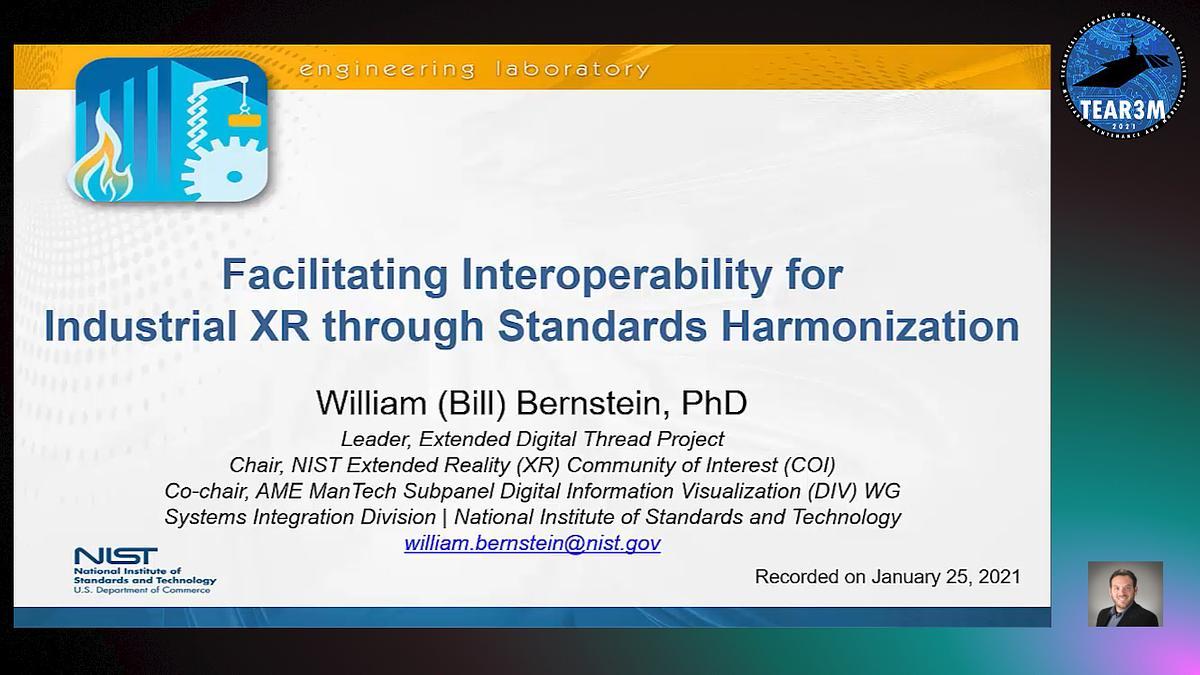

Facilitating Interoperability for Industrial XR through Standards Harmonization

standards; smart manufacturing; industrial augmented reality; digital thread
