In this study, laser doping of n-type 4H-SiC with boron for mid-wave infrared (MWIR) optical properties is reported. A novel doping technique based on a pulsed Nd:YAG laser (1064 nm) for doping silicon carbide (SiC) was developed. An aqueous boric acid (H 3 BO 3 ) solution was utilized as a precursor to facilitate p-type doping in 4H-SiC. FTIR spectrometry was used to characterize the optical properties of the as-received and boron-doped samples within the MWIR range. The boron dopant created an acceptor energy level at (E v + 0.29 eV) within the bandgap of 4H-SiC, corresponding to 4.3 µm wavelength. Upon absorption of photons of this wavelength by the boron-doped 4H-SiC, the electron densities in valence and acceptor energy levels were altered, resulting in a change in the refraction index of the 4H-SiC substrate. A theoretical heat transfer model was devised to establish a correlation between laser processing parameters and various other factors that impact the effectiveness of the laser doping process. These factors include the laser-substrate interaction time, minimum dopant diffusion time, dopant concentration in precursor solution and dopant concentration diffused into the substrate. To ensure a thorough analysis, a comprehensive investigation was carried out on the as-received and boron-doped samples, encompassing a careful examination of their optical properties for the MWIR wavelength range. The laser doping process resulted in a notable decrease in the refraction index from 2.873 to 2.517. Our experimental results aligned with the theoretical model developed for selecting the laser processing parameters, affirming its success.

ICALEO 2023

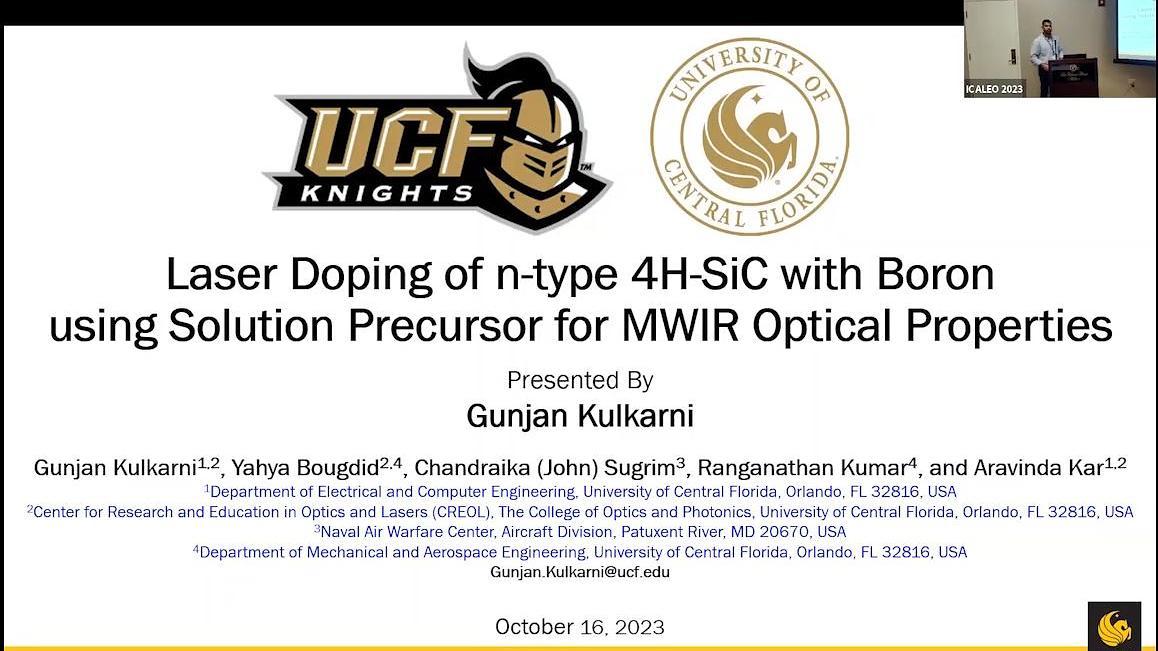

Laser Doping of N-Type 4H-SiC With Boron Using Solution Precursor for MWIR Optical Properties

refraction index

mwir optical sensor

laser doping

nd:yag laser

silicon carbide

technical paper
