Extreme High-Speed Directed Energy Deposition (EHLA) is a modified variant of the laser based Directed Energy Deposition (DED-LB) and is being applied as an efficient coating process for rotational symmetric components. Characteristic for EHLA processes are feed rates of up to 200 m/min which result in smaller weld bead deposition and thinner layer thicknesses compared to conventional DED-LB. When transferred to Additive Manufacturing (AM) this characteristic utilizes the potential of depositing thin-walled filigree structures at deposition rates which are comparable to typical DED-LB processes (EHLA3D).&lt;br&gt;
Due to the high feed rates typical EHLA handlings are lathe type machines which realize the relative movement by rotating the rotational symmetric component. During the recent years the transfer to AM processes were demonstrated on a tripod machine developed by ponticon GmbH in collaboration with Fraunhofer ILT. The results of this work were achieved with a modified CNC-type machine which is capable of feed rates of up to 30 m/min.&lt;br&gt;
In this work process parameters were developed for the deposition of thin-walled filigree structures with the Ni-based superalloy IN718. Single tracks with constant feed rates and variation of beam diameter and powder mass flow were deposited and analysed regarding the resulting weld bead dimension. Then process parameters were selected and transferred to the deposition of thin walls and guidelines of the parameter adaption towards thin-walled deposition were defined. Depending on the developed parameter sets wall thicknesses between 300 µm – 500 µm are achieved.

ICALEO 2023

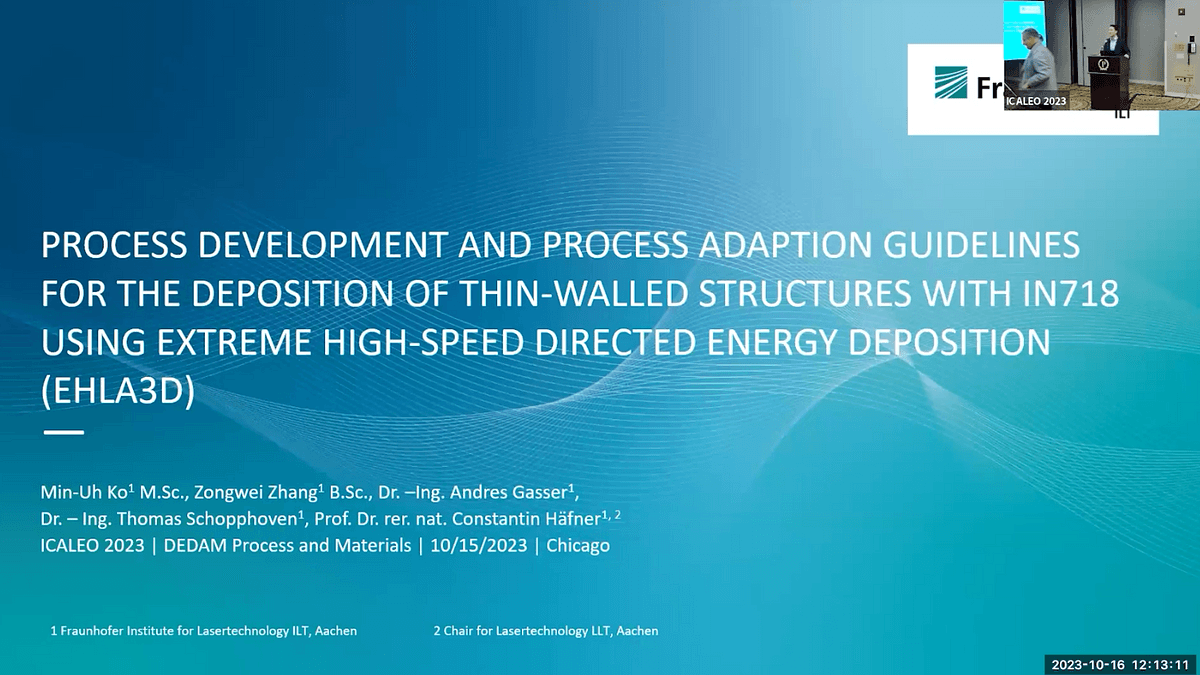

Process Development and Process Parameter Guidelines for Thin Wall Deposition with IN718 using Extreme High Speed Laser

ehla 3d

ehla

laser metal deposition

directed energy deposition

additive manufacturing

Extreme High-Speed Directed Energy Deposition (EHLA) is a modified variant of the laser based Directed Energy Deposition (DED-LB) and is being applied as an efficient coating process for rotational symmetric components. Characteristic for EHLA processes are feed rates of up to 200 m/min which result in smaller weld bead deposition and thinner layer thicknesses compared to conventional DED-LB. When transferred to Additive Manufacturing (AM) this characteristic utilizes the potential of depositing thin-walled filigree structures at deposition rates which are comparable to typical DED-LB processes (EHLA3D).
Due to the high feed rates typical EHLA handlings are lathe type machines which realize the relative movement by rotating the rotational symmetric component. During the recent years the transfer to AM processes were demonstrated on a tripod machine developed by ponticon GmbH in collaboration with Fraunhofer ILT. The results of this work were achieved with a modified CNC-type machine which is capable of feed rates of up to 30 m/min.
In this work process parameters were developed for the deposition of thin-walled filigree structures with the Ni-based superalloy IN718. Single tracks with constant feed rates and variation of beam diameter and powder mass flow were deposited and analysed regarding the resulting weld bead dimension. Then process parameters were selected and transferred to the deposition of thin walls and guidelines of the parameter adaption towards thin-walled deposition were defined. Depending on the developed parameter sets wall thicknesses between 300 µm – 500 µm are achieved.

technical paper

**General Chair Welcome**

![](https://assets.underline.io/markdown_image/1/image/d6e6dddc08bf2371b9136ea9c18dc5ab.png)

Welcome to ICALEO® 2023!

We were excited to host the world’s leading international conference on Lasers and Electro-Optics in Chicago. The Laser has been shown to have the potential to revolutionize solutions for major global challenges like energy usage and supply, global warming, and CO2 footprint. Even the fusion energy breakthrough is based on laser technology. The conference, with peer-reviewed scientific and technical presentations, focused on the newest results in Micro Applications, Macro Applications, Additive Manufacturing, Beam Shaping and Frontiers in Laser Applications. Additionally, the Battery-Manufacturing Track gave an overview of the process combined with the newest advances in laser application results.

The Business Session brought the business aspect and environment of the laser to the audience and the possibility to discuss with seasoned industry leaders from around the world.

Whether this is the first time you are hearing about ICALEO or you are a longtime attendee, you will find something of interest, new ideas, and an excellent opportunity to network with other laser specialists worldwide.

**Klaus Löffler **
ICALEO General Chair
Managing Director, Precitec GmbH

**What is ICALEO?**

ICALEO® brings together the brightest minds, seasoned professionals, and pioneering researchers from around the world. With a laser-focused agenda, ICALEO offers an exceptional platform to delve into the cutting-edge advancements, diverse applications, and transformative research that define lasers and electro-optics.

Participants will be immersed in a dynamic environment that fosters collaborative learning, networking, and idea exchange. Through engaging plenary presentations, technical sessions, an industry business panel, and networking events, attendees gain insights into the forefront of laser technology. From industrial applications to medical breakthroughs, additive manufacturing to materials processing, ICALEO covers the entire spectrum of laser-related disciplines. Moreover, the event serves as a launching pad for synergistic partnerships, paving the way for professionals to forge connections that shape the future of our industry.

Join us in Chicago and be part of an unparalleled gathering that challenges the boundaries of possibility within lasers and electro-optics. As we convene to share knowledge, explore innovations, and cultivate collaborations, ICALEO stands as a pivotal force driving the evolution of this transformative technology.

**Who attended?**

ICALEO is tailor-made for professionals, researchers, academics, and enthusiasts who are deeply passionate about the world of lasers and electro-optics. If you're an industry trailblazer, an academic luminary, an aspiring expert, or a postgraduate student looking to dive into the latest developments and trends, this is an event you won't want to miss.

Industrial leaders seeking to stay ahead of the curve in their fields, engineers working on laser applications, and manufacturing experts interested in additive manufacturing and materials processing will find ICALEO to be an invaluable platform. Researchers and scientists exploring the forefront of laser technology, from fundamental principles to groundbreaking applications, will also discover a wealth of knowledge and networking opportunities.

Medical professionals investigating laser-based medical advancements, entrepreneurs seeking to innovate with lasers, educators aiming to stay updated with the latest in laser education, and policy makers shaping the industry's landscape are all essential attendees. Whether you're an established expert or a rising star, the 42nd annual ICALEO promises to offer a diverse ecosystem of expertise, connections, and knowledge sharing that caters to the laser and electro-optics communities.

**Fields Represented:**

* Entrepreneurs and Innovators
* Manufacturing Experts
* Students and Graduates
* Policy Makers and Regulators
* Consultants and Advisors
* Technology Enthusiasts
* Suppliers and Manufacturers
* Startups and Innovators
* Researchers in Laser Education

**[View All Proceedings Here](https://icaleo.conferencespot.org/event-data)**

### **Program Tracks & Chairs**

To access the site please register [**here**](https://icaleo.org/attend).

Please register for the ICALEO 2023 Conference to join the event.

ICALEO® brings together the brightest minds, seasoned professionals, and pioneering researchers from around the world. With a laser-focused agenda, ICALEO offers an exceptional platform to delve into the cutting-edge advancements, diverse applications, and transformative research that define lasers and electro-optics.

Laser metal deposition (LMD) is a blown powder process used for the additive manufacturing of large as well as complex parts. The laser spot size is determined by the fiber optic cable and by the imaging ratio of the process optics. Spot sizes typically used for LMD can range between 200 µm up to several millimeters. Zoom optics are able to change the laser spot focus within seconds during the process. However industrial powder nozzles are still static in their powder spot size. Changing the powder spot size accordingly to the laser spot size could lead to a desirable union of time savings when printing large volumes while also generating fine near-net-shape features.
To overcome the current limitations in the LMD process, this work examines an adaptive powder nozzle system. In this discrete coaxial layout of three single powder nozzles the individual powder nozzles can be adjusted closer and further from the process to dilate or shrink the powder focus. Different diameters of powder channels are examined. The resulting powder propagation behavior is characterized for different settings of the single powder nozzles. Single tracks are welded with different nozzle settings for a fine and coarse powder spot, while accordingly changing the laser spot size with a zoom optic. The laser power is closed-loop controlled by a 2-color pyrometer to achieve comparative process temperatures. The single tracks are evaluated with regard to their geometry. High-Speed imaging gives supplementary information on the welt track generation.

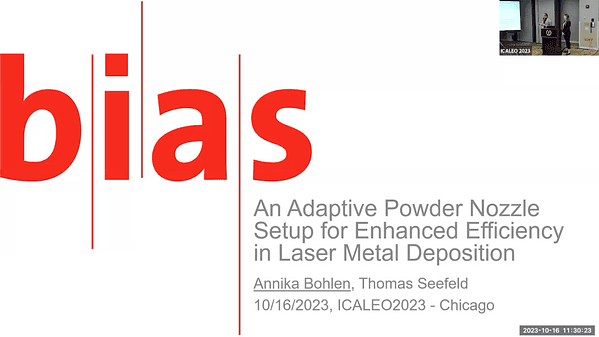

Adaptive Power Nozzle Setting for Enhanced Efficiency in Laser Metal Deposition
