This study aims to fabricate a voltage-tuneable magneto resistive sensor with the ability to measure small magnetic field signals in three dimensions. Sensing direction in magneto resistive sensors is linked to the magnetization of reference layer. Materials like CoFe1, CoFeB2 and Heusler alloys3 are good choices as reference layers due to their adjustable magnetic anisotropies. Here, using ionic liquid gating (ILG), we observed that magnetic anisotropy of reference layer CoFeB is switchable in MgO(1.5nm)/CoFeB(1.6nm)/W(0.5nm) stack. We used ionic liquid N, N-diethyl-N-methyl N-(2-methoxyethyl) ammonium bis (trifluoromethylsulfonyl) imide (DEME TFSI) (IoLiTec) for applying the gate voltage (VG) ranging between ±3.5V. Using the magneto-optical Kerr effect, we have investigated the change of anisotropy using different gate voltages. We found that magnetic anisotropy switches from out-of-plane (virgin state) to in-plane upon the application of +3.5V, whereas removal of applied voltage +3.5V or application of -3.5V, switches magnetic anisotropy back to out-of-plane, demonstrating the switching behaviour of the stack is reversible and repeatable. Moreover, we observed that out-of-plane to in-plane anisotropy switching time is higher (~45 sec) compared to in-plane to out-of-plane switching time (~25 sec). Hence, a stack having stronger out-of-plane and switchable anisotropy is ideal to use in voltage tuneable magneto resistive sensors.&lt;br&gt;&lt;br&gt;
**References** 1. Parkin, S. S. P. et al., Nat. Mater., 2004, 3, 862–867.
2. Yuasa, S. &amp; Djayaprawira, D. D., J. Phys. D. Appl. Phys., 2007, 40, 337-354.
3. Palmstrøm, C. J., Prog. Cryst. Growth Charact. Mater., 2016, 62, 371–397.&lt;br&gt;&lt;br&gt;

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/e3ae096d4e8943d27a8c20c8b36d7347.png)

MMM 2022

Switching of Magnetic Anisotropy in MgO/CoFeB/W stack by Ionic Liquid Gating for Voltage Tuneable Magneto Resistive Sensor

INTERMAG 2021 Welcome Video




<figure class="video_container">
 <iframe src="https://screencast-o-matic.com/player/crflqFVnUpZ?v=6&ff=1&title=0&controls=1" width=640 height=360 frameborder="0" allowfullscreen="true"> </iframe>
</figure>

Want to buy a ticket?

Register for INTERMAG 2021 here

[![](https://assets.underline.io/uploads/markdown_image/1/image/17ce76e7960db633258024eef8d6da7f.png)](https://intermag.org/register)

Got your ticket, but still can’t access the event?

Contact us and our team will look into it.

INTERMAG 2021

This study aims to fabricate a voltage-tuneable magneto resistive sensor with the ability to measure small magnetic field signals in three dimensions. Sensing direction in magneto resistive sensors is linked to the magnetization of reference layer. Materials like CoFe1, CoFeB2 and Heusler alloys3 are good choices as reference layers due to their adjustable magnetic anisotropies. Here, using ionic liquid gating (ILG), we observed that magnetic anisotropy of reference layer CoFeB is switchable in MgO(1.5nm)/CoFeB(1.6nm)/W(0.5nm) stack. We used ionic liquid N, N-diethyl-N-methyl N-(2-methoxyethyl) ammonium bis (trifluoromethylsulfonyl) imide (DEME TFSI) (IoLiTec) for applying the gate voltage (VG) ranging between ±3.5V. Using the magneto-optical Kerr effect, we have investigated the change of anisotropy using different gate voltages. We found that magnetic anisotropy switches from out-of-plane (virgin state) to in-plane upon the application of +3.5V, whereas removal of applied voltage +3.5V or application of -3.5V, switches magnetic anisotropy back to out-of-plane, demonstrating the switching behaviour of the stack is reversible and repeatable. Moreover, we observed that out-of-plane to in-plane anisotropy switching time is higher (~45 sec) compared to in-plane to out-of-plane switching time (~25 sec). Hence, a stack having stronger out-of-plane and switchable anisotropy is ideal to use in voltage tuneable magneto resistive sensors.
**References** 1. Parkin, S. S. P. et al., Nat. Mater., 2004, 3, 862–867.
2. Yuasa, S. & Djayaprawira, D. D., J. Phys. D. Appl. Phys., 2007, 40, 337-354.
3. Palmstrøm, C. J., Prog. Cryst. Growth Charact. Mater., 2016, 62, 371–397.

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/e3ae096d4e8943d27a8c20c8b36d7347.png)

poster

#### Welcome to the 67th Annual Conference on Magnetism and Magnetic Materials, MMM 2022!

The Conference was held from October 31 to November 4 and offers both in-person and on-demand content.

MMM 2022 is sponsored jointly by AIP Publishing and the IEEE Magnetics Society. Members of the international scientific and engineering communities interested in recent developments in fundamental and applied magnetism are invited to attend and contribute to the technical sessions. The technical program will include invited and contributed papers in oral and poster sessions, invited symposia, a tutorial, and several special sessions. This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

<iframe width="560" height="315" src="https://s3.amazonaws.com/pf-user-files-01/u-59356/uploads/2022-11-02/un13zp7/MMM%20Welcome%20Video%20v5.mp4" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>

For tickets to the event, please register at the following link: https://magnetism.org/registration

Please register for the MMM 2022 conference to join the event.

This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

Reservoir computing (RC) has been considered as one of the key computational principles beyond von-Neumann computing. Magnetic skyrmions, topological particle-like spin textures in magnetic thin films, are particularly promising for implementing RC [1] since they respond strongly nonlinear to external stimuli and feature inherent multiscale dynamics. We propose and demonstrate experimentally a conceptually new approach to skyrmion RC that exploits the thermally activated diffusive motion of skyrmions [2]. By confining the thermal and low-energy, electrically gated skyrmion motion, together with employing spatially resolved input and readout, we find that already a single skyrmion in a confined, triangular geometry (Fig. 1) suffices to realize non-linearly separable functions, which we demonstrate for the XOR gate along with all other Boolean logic gate operations [3] (Fig. 2). Our proposed concept can be readily extended by linking multiple confined geometries and/or by including more skyrmions in the reservoir, suggesting high potential for scalable and low-energy reservoir computing.

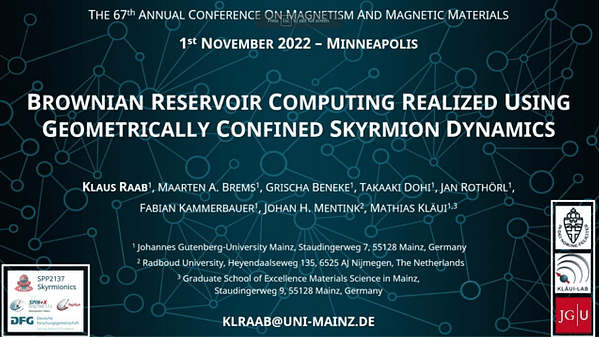

Brownian Reservoir Computing Realized Using Geometrically Confined Skyrmions

Spiking neural networks have attracted a lot of interest in the past decade as they meet the need of energy efficiency in deep neural network computing (1). Using spikes instead of continuous signals enables low power operation, event-based computations and fast response time, which is better adapted to spatial-temporal data. Combined with unsupervised and local learning rules such as the spike-timing-dependant plasticity rule (2), SNN with magnetic tunnel junction (MTJ) based neurons provide interesting solutions for embedded technologies with better back-end-of-line compatibility (3) compared to other technologies.
For the spike generation, we propose an MTJ-based neuron composed of two magnetized layers (M1 and M2), with low thermal stabilities, separated by an oxide tunnel barrier. Under applied current, the spin-transfer torque (STT) enables an alternating switching of both magnetic layers leading to a so-called “windmill motion” (see Fig1.a-c) previously predicted by simulation for in-plane and out-of-plane magnetized MTJs (4,5). Here we designed, fabricated and characterized such type of structure and were able to achieve steady alternating magnetization reversal of both layers generating a characteristic spike-like resistive response.
MTJ stacks of FeCoB/MgO/FeCoB, with varying FeCoB thicknesses, were deposited by magnetron sputtering and patterned into nano-pillars with diameters ranging from 50 to 200 nm. The electrical characterization of the nano-pillars reveals essential changes of the magnetization dynamics depending on the pillar diameters, layer thicknesses, voltage, applied magnetic field and temperature of the junction. As predicted by the simulation, the frequency of the oscillations and the width of the spikes evolve with the voltage amplitude and the applied field. Important similarities confirm the parameter dependence with temperature and bias voltage. Controlling the spiking rates at low voltages is a critical requirement to build an efficient spiking neural network.
References Acknowledgements:
This work was supported by ANR via grant SpinSpike Projet-ANR-20-CE24-0002.

**References:**
(1) A. Tavanaei, M. Ghodrati and S.R. Kheradpisheh, Neural networks, 111, 47-63 (2019).
(2) T. Iakymchuk, A. Rosado-Muñoz and J.F. Guerrero-Martínez, EURASIP Journal on Image and Video Processing 2015, 1-11 (2015).
(3) D. Shum, D. Houssameddine and S.T. Woo, 2017 Symposium on VLSI Technology. IEEE pp. T208-T209 (2017).
(4) R. Matsumoto, S. Lequeux, and J. Grollier, Physical Review Applied, 11(4), 044093 (2019)
(5) G. Gupta, Z. Zhu and G. Liang, arXiv preprint arXiv, 1611.05169 (2016).

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/8611b8d23f4be4ece5ea2d8e459a4a2f.png)

Spiking dynamics with dual free layer MTJ

Magnetic random access memory (MRAM) is a promising candidate for beyond-CMOS memory and logic technologies and has been developed for commercial purposes in recent years (1). The key building block of commercial MRAM is magnetic tunnel junction (MTJ), which is operated through either spin transfer torque (STT) or spin-orbit torque (SOT). STT-based MRAM benefits from higher cell density but suffers from reliability and energy-efficiency due to the current flow through the MTJ whereas SOT-based MRAM has superior reliability, endurance, and faster switching times (2). For realizing the ultralow switching current density and ultrafast switching MRAM cell, two or more driving forces are normally employed to switch MTJs. One acts as the principal switching mechanism and the other serves to assist in switching. For example, ultrafast switching speed of ~ 0.27 ns has been reported in SOT switching of perpendicular MTJs (p-MTJs) assisted with STT and voltage-controlled magnetic anisotropy (VCMA), however, the key challenge is still large switching current densities (Jc) ~ 2.0×108 A/cm2 for SOT and ~ 2.3×106 A/cm2 for STT (3).
Voltage controlled exchange coupling (VCEC) occurs in perpendicular MTJs (p-MTJs) with synthetic antiferromagnetic (SAF) free layers and can realize bidirectional switching at switching current densities as low as 1 x 105 A/cm2 (4). In this work, we designed and fabricated the p-MTJ stacks with SAF free layers on bi-layered spin Hall channels (Ta/Pd). The p-MTJ stacks were patterned into 150-nm pillars, and MTJ devices are switched through combination of SOT and VCEC effects, as illustrated in Fig. 1(a). Bidirectional switching of p-MTJs were obtained with current densities as low as 3×103 A/cm2 for VCEC and 6.8×107 A/cm2 for SOT, as shown in Fig. 1(b), where the VCEC switching current density is two orders of magnitude lower than the reported value for VCEC-only switching [4]. Furthermore, by studying the contribution of SOT and VCEC for MTJ switching, it is found that SOT plays a crucial role for ultralow-energy VCEC bidirectional magnetization switching.

**References:**
(1) J.-P. Wang et al, DAC '17: Proceedings of the 54th Annual Design Automation Conference 16, pp. 1-6 (2017).
(2) Y. C. Liao et al, IEEE J. Explor. Solid-State Computat. 6, pp. 9-17 (2020).
(3) E. Grimaldi et al, Nat. Nanotechnol. 15, pp. 111-117 (2020).
(4) D. Zhang et al, Nano Lett., 22, pp. 622-629 (2022).

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/cc395ac5760d53440cf052a95d03652a.png)

Ultra low current density switching via voltage

Racetrack memory is expected to be a memory device that supports the information society because of its high speed and low power consumption. Although many studies have been conducted to improve the speed of magnetic domain wall movement, few studies have been conducted from the viewpoint of Joule heat. Therefore, we have investigated the relationship between Joule heat and domain wall motion in the 2022 Joint MMM-INTERMAG.(1)
In elucidating the mechanism of this current-driven domain wall motion, although the domain wall width is an essential parameter for improving the domain wall moving speed and the critical current density, the details of the domain wall width are still unknown. Generally, MFM is used for magnetic domain observation. In MFM, as shown in FIG. 1, it is possible to observe the magnetic domain shape by vibrating a thin magnetic needle up and down, but it is challenging to investigate the accurate magnetic flux density distribution. However, suppose the TMR head can be contacted with the sample and scanned. In that case, the distance between the sample and the TMR head can be kept constant to measure the accurate magnetic flux density distribution created by the magnetic recording domain. FIG. 2 shows a TMR head scan image of a magnetic domain recorded in a racetrack memory having a width of 10 μm and a length of 100 μm. The result of line scanning by enlarging this domain wall is also shown in the figure. The recording material is TbCo ferrimagnetic material, the domain wall movement is fast, and the critical current density is small (2). Despite the small saturation magnetization due to ferrimagnetism and thin film (10 nm), the TMR head could measure a clear change in magnetic flux density within a range of ± 20 mT.

**References:**
(1) Sota, K. et al. Relationship between pulse width and domain wall velocity in current induced domain wall motion in GdFeCo wire and the effect of joule heat on the racetrack memory, Joint MMM-Intermag Conference, 3628926 (2022)
(2) Sina, R. et al. Fast Current Induced Domain Wall Motion in Compensated GdFeCo Nanowire, Joint MMM-Intermag Conference, 3786257 (2022)

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/a2a687db56567b04eea4294220fdd2cd.png)

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/01d8f1d7f96cf688f618744efd11e680.png)

Evaluation of magnetic flux density distribution of magnetic domains recorded in racetrack memory by TMR head

Unidirectional spin Hall magnetoresistance (USMR) is a magnetoresistance effect with potential applications to read two-terminal spin-orbit-torque (SOT) devices directly. In this work, we observed a large USMR value (up to 0.710-11 per A/cm2, 50% larger than reported values from heavy metals) in sputtered amorphous PtSn4/CoFeB bilayers. Ta/CoFeB bilayers with interfacial MgO insertion layers are deposited as control samples. The control experiments show that increasing the interfacial resistance can increase the USMR value, which is the case in PtSn4/CoFeB bilayers. The observation of a large USMR value in an amorphous spin-orbit-torque material has provided an alternative pathway for USMR application in two-terminal SOT devices.

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/9b54366f807d7bc80e90d1bd60fd91f2.png)

Observation of unidirectional spin Hall magnetoresistance in amorphous PtSn4/CoFeB bilayers

L10-ordered MnAl, a perpendicularly magnetized film material, has attracted much attention due to its high magnetic anisotropy, low saturation magnetization, and low magnetic damping for spin-transfer-torque magnetic random access memory (STT-MRAM) applications. However, in magnetic tunnel junctions (MTJs) with a single MnAl ferromagnetic layer, the TMR ratio has not been confirmed. This is due to the large lattice mismatch between MgO tunneling barrier and MnAl layer, which prevents the coherent tunneling of Δ1 electrons (1). In this work, we utilized Co-doped MnAl and MgAl2O4 tunneling barrier to reduce lattice mismatch and inserted a very thin Fe layer into (MnCo)Al/MgO interface to improve TMR effect.
The structure of the MTJs prepared in this study is shown in Fig.1. The MTJ films were prepared using the ultrahigh vacuum magnetron sputtering method. (MnCo)Al layers with low roughness and high (001) orientation by adding 2% Co. The composition of MgAl2O4 was measured using X-ray photoelectron spectroscopy (XPS). Compositional analysis showed that the composition of MgAl2O4 was Mg : Al : O =9.2 : 18.9 : 41.5 (atom%). MTJ devices were microfabricated and characterized their TMR properties by DC 4-probe method.
We succeeded in observing a TMR ratio of 8% at 300K without an insertion layer by using (MnCo)Al electrode and MgAl2O4 tunneling barrier as shown in Fig. 2(a). In addition, TMR ratio was improved to 9.4% by insertion of ultra-thin Fe layer into the (MnCo)Al/MgO interface as shown in Fig. 2(b). This translates to 18.8% in terms of magnetization parallel state. Since the RA product was decreased from 1.2 MΩμm2 to 223 kΩμm2 by insertion of Fe, coherent tunneling process was thought to be promoted by the interfacial modification.
This work was supported by the Center for Advanced Spintronics Research and Development, the Center for Spintronics Cooperative Research and Education and Development, and the Center for Spintronics Cooperative Research and Education, Tohoku University.

**References:**
(1) H.Saruyama, M.Oogane, Y.Ando, 2013, Jpn. J. Appl. Phys., 52, 063003

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/5eb74ab9a19d4375f83b47bd2f3be1d9.png)

Dependence of TMR and RA on Fe insertion layer thickness in MTJs using L10 (MnCo)Al electrode and MgAl2O4 insulating layer

Magnetoresistive sensors have been enthusiastically selected for applications requiring magnetic field detection with sensors combining small footprint (1), highly linear response curves with low coercivity and low field detectivities. From the viable alternatives (2), MgO-based magnetic tunnel junctions (TMR) offer very competitive performance values, as sensitivity as large as 300 %/mT are reported (3). The optimization of the sensor response includes using soft magnetic free layers, based on CoFeB and NiFe alloys (4).
Here we report the performance of TMR sensors including CoFeBTa and CoFeBSi soft magnetic films as free layers (FL). Magnetic tunnel junction stacks based on (Ta 5/Ru 10)x3/Ta 5/Ru 5/MnIr 8/CoFe 2.2/Ru 0.65/CoFeB 2/MgO/CoFeB/FL2/cap (nm) (fig. 1) were grown on 200 mm wafers using a combination of ion beam and magnetron sputtering deposition from the 14 targets available in the machine. The TMR stacks were magnetically characterized by vibrating sample magnetometry and CIPT, while microfabricated devices (rectangular shaped pillars of varying areas and aspect ratios) were evaluated for transfer curve sensitivity, linear range and noise.
The magneto-crystalline anisotropy, Hk, was assessed for CoFeBTa and CoFeBSi films, with values of 2.1 and 5.3 mT measured for 4 nm films integrated in the TMR stacks. Although these values are larger than for single NiFe FL (1.7 mT)(fig. 2), the global performance of the CoFeBTa/CoFeBSi-based sensors is improved, with magnetoresistance of 210 %, when comparing with 190 % (CoFeB) or 150 % (NiFe). Field sensitivities up to 80 %/mT are obtained, with similar hysteresis (Hc) as for CoFeB or NiFe stacks.
The low frequency noise (1/f dominated) characteristic was evaluated for the microfabricated devices. As an example, sensors with FL2 = CoFeBTa (10 TMR elements connected in series) provided Hooge factor αH = 2.4x10-10 μm2 and detectivity levels of D = 4.5 nT/√Hz at 10 Hz. These values are aligned with previously reported values with similar materials (4).
Acknowledgments: FCT grant UI/BD/151461/2021

**References:**
(1) M. Silva, D.C. Leitão, S. Cardoso and P. P. Freitas, IEEE Trans. Magn. 53, 7762720 (2017)
(2) C. Zheng et al., IEEE Trans. Magn. 55-4, pp. 1-30 (2019)
(3) TMR9001, MultiDimension Technology, Datasheet available online: http://www.dowaytech.com/en/1866.html (accessed on 24 June 2022)
(4) M. Rasly et al., J. Phys. D: Appl. Phys. 54, 095002 (2021)

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/cf6018b883422e1a6f5c02677f70a274.png)

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/abd1fd47a11663b4ca1ca242390d2890.png)

CoFeBX layers for MgO based magnetic tunnel junction sensors with improved noise and detectivity

Spintronics-based devices offer certain key advantages like ease of fabrication with Si-substrate, non-volatile memory, low operational voltage, and non-linear device characteristics. Hardware security is a research domain that heavily relies on CMOS-based ICs, and the defense and attack mechanism is developed accordingly.
In this work, we explore shape anisotropy-based PMA Double barrier MTJ based on Verilog-A behavioral model (1) to design a possible Logic locking (2) system for Hardware Security. Logic Locking is a widely used security mechanism to counter multiple threats (3). Due to larger free layer thickness, the s-PMA DMTJ has better thermal stability even in the sub-10nm dimension. The current work focuses on Logic locking applications using this device, analyze its behavior under process variation in certain key parameters using Monte-Carlo simulations, and finally performs Eye-diagram performance analyses to test the design for high-speed digital logic applications. The results indicate that the s-PMA DMTJ has good thermal stability, smaller size (10nm dimension), robustness to device imperfections, and ability to work in high-speed digital circuits compared to other emerging MTJ structures such as STT MTJ, SOT MTJ, VG-SOT MTJ, etc.
Fig. 1(a) represents the block diagram of the logic Locking block, and Fig. 1(b) represents the circuit for implementing the desired operation. We have performed electrical simulations in TSMC 40nm CMOS generic process design kit using the cadence specter simulator with W/L ratio = 3, the temperature at 300K. Fig. 2(a) and 2(c) represent some circuit performance comparisons like the Eye-diagram test for high-speed circuits, and Table 1 presents the simulation data for the same. Fig. 2(b) shows that VG-SOT MTJ (4) fails the eye-diagram test for similar applications for comparison with s-PMA DMTJ.

**References:**
(1) H. Wang et al., “Modeling and Evaluation of Sub-10-nm Shape Perpendicular Magnetic Anisotropy Magnetic Tunnel Junctions,” IEEE Transactions on Electron Devices, vol. 65, no. 12, pp. 5537-5544, Dec. 2018.
(2) H. M. Kamali, K. Z. Azar, F. Farahmandi, and M. Tehranipoor, “Advances in Logic Locking: Past, Present, and Prospects,” Cryptology ePrint Archive, 2022.
(3) S. Bhunia, and M. Tehranipoor, “Hardware security: a hands-on learning approach,” 1st Edition, 2018.
(4) K. Zhang, D. Zhang, C. Wang, L. Zeng, Y. Wang and W. Zhao, “Compact Modeling and Analysis of Voltage-Gated Spin-Orbit Torque Magnetic Tunnel Junction,” IEEE Access, vol. 8, pp. 50792-50800, 2020.
(5) K. Watanabe et al., “Shape anisotropy revisited in single-digit nanometer magnetic tunnel junctions,” Nature Communication, 2018.

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/d1605726db3b78fd5db91a7c1733ebc1.png)

Double Barrier s PMA MTJ

With the rapid growth of technologies such as the Internet of Things (IoT) and artificial intelligence (AI) in recent years, giant data transmission and processing capacities of computers have faced major hurdles (1, 2). At the moment, memory is the key bottleneck in computer processing big data processes. The CPU and the memory are distinct in the standard Von Neumann design, while frequent data exchange uses a lot of energy, resulting in the "Memory Wall" problem (3). On-chip cache, being the crucial constituent of CPU, accounts for a pivoltal portion of the system's overall power consumption. If the power wastage of the on-chip cache could be lowered, the ultimate performance of the CPU can be strengthened. The typical SRAM-based cache is vulnerable to high static leakage power consumption, and scaling up its capacity is challenging. Magnetic random access memory (MRAM) (4), as a new non-volatile storage technology, is expected to break the limitation at the cache level (5).
In the paper, MRAM cache is used to limit static leakage power consumption. A quad-core CPU MRAM hierarchical cache system is established in the designed MRAM cache, with the high-speed Spin-Orbit-Torque (SOT)-MRAM (6) functioning as the L1 cache and the high-density Spin-Transfer-Torque(STT)-MRAM (7) serving as the L2 shared cache. A non-inclusive allocation method is adopted for the data-exchange strategy, by which the number of the write operation in the L2 STT-MRAM cache is reduced, and the energy consumption of the system is further reduced. The designed system is simulated and verified based on gem5 (8) software framework. The simulation results show that strategy of the hybrid MRAM memory is a promising candidate for high-speed and low-power on-chip cache.

**References:**
(1) Y. Li, Z. Wang, R. Midya et al., Journal of Physics D: Applied Physics., vol. 51, p.503002(2018)
(2) J.-M. Hung, X. Li, J. Wu et al., IEEE Transactions on Electron Devices., vol. 67, p.1444-1453(2020)
(3) X. Huang, C. Liu, Y.-G. Jiang et al., Chinese Physics B., vol. 29, p.078504(2020)
(4) M. Durlam, P. J. Naji, A. Omair et al., IEEE Journal of Solid-State Circuits., vol. 38, p.769-773(2003)
(5) F. Oboril, R. Bishnoi, M. Ebrahimi et al., IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems., vol. 34, p.367-380(2015)
(6) K. Jabeur, L. D. Buda-Prejbeanu, G. Prenat et al., International Journal of Electronics Science and Engineering., vol. 7, p.501–507(2013)
(7) D. Apalkov, A. Khvalkovskiy, S. Watts et al., ACM Journal on Emerging Technologies in Computing Systems., vol. 9, p.13:1–13:35, (2013)
(8) N. Binkert, B. Beckmann, G. Black et al., ACM SIGARCH computer architecture news., vol. 39, p.1-7(2011)

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/e6c3464562793d32243ffed0b7022f0e.png)

Hierarchical Cache Configuration Based on Hybrid SOT and STT

Spin-transfer-torque magnetic random-access memory (STT-MRAM) is one of the promising emerging memory technologies as it offers high speed and non-volatility required for embedded applications such as SOCs, IOTs, and Microprocessors (1).However, due to the magnetic nature of the STT-MRAM, the free layer of the memory cell is sensitive to the external magnetic field and the thermal fluctuation (2). For the practical application scenarios of STT-MRAM, the memory may be exposed to high external magnetic field for short time. In this way, high immunity is required for the STT-MRAM memory to avoid any possible data errors caused by the external magnetic field.
In the paper, the memory model at array level is established to study the immunity property of STT-MRAM. By investigation on the magnetic field distribution of the memory array under different external magnetic field, the three operation modes, including standby, active read and active write modes, are simulated and analyzed. Based on the simulation results, the immunity property and the reliability of the memory array is discussed and optimized.
The paper is organized as follows. Firstly, the STT-MRAM array model is established in the HFSS. The magnetic field distribution in the memory array is simulated. The influences of the key geometrical parameters on the magnetic distribution, including the thicknesses of the epoxy and the electrode layer, are investigated. Secondly, to improve the immunity property of the memory, the approach of adding high permeability magnetic shield material is proposed in the paper. Thirdly, the influence of the magnetic immunity on the data reliability of the memory is investigated. The reliability is basically all about data retention and it is determined by effective Eb (3). And the bit error rates (BERs) of the MTJs under the states of standby, active read and active write, are also analyzed in the paper.
Fig.1 The established array model of the STT-MRAM for the immunity investigation. (a) The magnetic field distribution of STT-MRAM array. (b) The magnetic distribution in single STT-MRAM cell.

**References:**
(1) B. Bhushan, L. T. Guan, D. Shum et al., 2018 IEEE International Memory Workshop (IMW), p. 1-4, (2018).
(2) S. Srivastava, K. Sivabalan, J. H. Kwon, et al. Applied Physics Letters, 114(17):172405. (2019).
(3) T. Y. Lee, K. Yamane, L. Y. Hau, et al. 2020 IEEE International Reliability Physics Symposium (IRPS). p. 1-4 (2020).

![](https://s3.eu-west-1.amazonaws.com/underline.prod/uploads/markdown_image/1/image/36467133c937105fe7b2f48b9969f89e.png)
