Antisymmetric exchange interactions are used to stabilize magnetic textures and lead to non-reciprocal spin-wave propagation [1-2]. As a result, left and right propagating waves at the same energy have different wavelengths. Thus, interference between counter-propagating spin waves does not lead to standing waves; instead, confined modes have a time-dependent phase, i.e., their phase is modulated at a rate determined by the Dzyaloshinskii–Moriya interactions (DMI) [3].&lt;br/&gt;We report on a Brillouin light scattering (BLS) study of confined spin waves in Co/Pt nanowires with strong DMI, whose widths range from 100 to 400 nm [4]. Two different scattering geometries were used: a transverse geometry where the incident light is perpendicular to the nanowire, as illustrated in Fig. 1(a), and a longitudinal geometry, where the incident light is parallel to the nanowire. Fig. 1(b) shows a SEM image of a nanowire array. Fig. 2(a-d) show sample BLS spectra for both scattering geometries. Fig. 2(e) shows spin-wave quantization in narrow (&amp;lt;200nm width) wires dramatically reduces the frequency shift between BLS Stokes and anti-Stokes lines in the transverse geometry. In contrast, the frequency shift associated with the longitudinal geometry is independent of nanowire width. A model that considers phase-modulated confined modes captures this physics and predicts a dramatic reduction in frequency shift of light scattered from higher energy spin waves in narrow wires, which is confirmed by our experiments. Our results show that, in contrast to the BLS frequency shift in the longitudinal scattering geometry, which enables direct determination of the DMI, the BLS frequency shift in the transverse scattering geometry is not directly related to the DMI.

![](https://assets.underline.io/uploads/markdown_image/1/image/bacdbe811474e59401429bb719b9e203.jpg)

Fig. 1 (a) Schematic of spin waves in a confined geometry with chiral magnetic interactions. (b) A SEM image of the nanowire array consisting of 100 nm width Co/Pt nanowires with 100 nm spacing.

![](https://assets.underline.io/uploads/markdown_image/1/image/385e357996864555747b01fc03369e04.jpg)

Fig. 2 (a)-(d) BLS spectra for Stokes and anti-Stokes processes for both positive and negative fields on nanowire arrays with different widths. (e) The absolute value of the frequency shift on nanowire arrays with different widths in the longitudinal (k∥L) and transverse (k⊥L) scattering geometries.

2022 Joint MMM-INTERMAG

Brillouin Light Scattering from Quantized Spin Waves in Nanowires with Antisymmetric Exchange Interactions

**Please view our Welcome to MH21 video.**

<center>
<figure class="video_container">
	 <iframe src="https://screencast-o-matic.com/watch/cr1UYHV1pcz?v=6&ff=1&title=0&controls=1" width=826 height=526 frameborder="0" allowfullscreen="true"> </iframe>
</figure>
	</center>


**Walkthrough Video**

Here is a Walkthrough showing how to navigate the conference and network with others

<center>
<figure class="video_container">
	 <iframe src="https://screencast-o-matic.com/watch/cr1vnrV1paE?v=6&ff=1&title=0&controls=1" width=826 height=526 frameborder="0" allowfullscreen="true"> </iframe>
</figure>
	</center>




	 Organized by

<a href="https://mrs.org.sg/">
<img src="https://assets.underline.io/uploads/markdown_image/1/image/95d5789689d5f900b90e9fe54ea3cf0d.jpg"</a>



	 In association with

<a href="http://www.ntu.edu.sg/">
<img src="https://assets.underline.io/uploads/markdown_image/1/image/334cd171ad2fdee033c635b368e5e160.png"</a>
	<a href="https://www.nus.edu.sg/">
<img src="https://assets.underline.io/uploads/markdown_image/1/image/32e6f82c0440f7bb24c590f9f67821bd.png"</a>
		<a href="https://www.a-star.edu.sg/">
<img src="https://assets.underline.io/uploads/markdown_image/1/image/72557865b589cfa3d2a0243ffce4a270.png"</a>




	 Supported by

		 <a href="https://www.visitsingapore.com/mice/en/about-us/about-secb/">
<img src="https://assets.underline.io/uploads/markdown_image/1/image/6e679842ead62be522ba6a630b82d5c9.png"</a>

To access the MH 21 Conference, [please register](https://mh21.mrs.org.sg/event/da3f9651-429f-4763-81b2-ebd7311b6bc8/websitePage:206f7605-1731-41f9-8421-56d3890f398f)

MATERIALS FOR HUMANITY (MH 21)

MH 21 is arranged around 6 themes that focus attention on pressing needs that should be addressed to enhance the well-being of communities and provide a forum for presenting breakthrough discoveries.

Antisymmetric exchange interactions are used to stabilize magnetic textures and lead to non-reciprocal spin-wave propagation [1-2]. As a result, left and right propagating waves at the same energy have different wavelengths. Thus, interference between counter-propagating spin waves does not lead to standing waves; instead, confined modes have a time-dependent phase, i.e., their phase is modulated at a rate determined by the Dzyaloshinskii–Moriya interactions (DMI) [3]. We report on a Brillouin light scattering (BLS) study of confined spin waves in Co/Pt nanowires with strong DMI, whose widths range from 100 to 400 nm [4]. Two different scattering geometries were used: a transverse geometry where the incident light is perpendicular to the nanowire, as illustrated in Fig. 1(a), and a longitudinal geometry, where the incident light is parallel to the nanowire. Fig. 1(b) shows a SEM image of a nanowire array. Fig. 2(a-d) show sample BLS spectra for both scattering geometries. Fig. 2(e) shows spin-wave quantization in narrow (&lt;200nm width) wires dramatically reduces the frequency shift between BLS Stokes and anti-Stokes lines in the transverse geometry. In contrast, the frequency shift associated with the longitudinal geometry is independent of nanowire width. A model that considers phase-modulated confined modes captures this physics and predicts a dramatic reduction in frequency shift of light scattered from higher energy spin waves in narrow wires, which is confirmed by our experiments. Our results show that, in contrast to the BLS frequency shift in the longitudinal scattering geometry, which enables direct determination of the DMI, the BLS frequency shift in the transverse scattering geometry is not directly related to the DMI.

![](https://assets.underline.io/uploads/markdown_image/1/image/bacdbe811474e59401429bb719b9e203.jpg)

Fig. 1 (a) Schematic of spin waves in a confined geometry with chiral magnetic interactions. (b) A SEM image of the nanowire array consisting of 100 nm width Co/Pt nanowires with 100 nm spacing.

![](https://assets.underline.io/uploads/markdown_image/1/image/385e357996864555747b01fc03369e04.jpg)

Fig. 2 (a)-(d) BLS spectra for Stokes and anti-Stokes processes for both positive and negative fields on nanowire arrays with different widths. (e) The absolute value of the frequency shift on nanowire arrays with different widths in the longitudinal (k∥L) and transverse (k⊥L) scattering geometries.

technical paper

The 15th Joint MMM-INTERMAG Conference (2022 Joint) is sponsored jointly by AIP Publishing and the IEEE Magnetics Society. Members of the international scientific and engineering communities interested in recent developments in fundamental and applied magnetism are invited to attend and contribute to the technical sessions. The technical program will include invited and contributed papers in oral and poster sessions, invited symposia, a plenary session, and an evening session, with about 1500 presentations overall. This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

The 2022 Joint Conference will offer both in-person and prerecorded on-demand content.

For tickets to the event, please register at the following link: https://magnetism.org/register

Please register for the Joint MMM-Intermag conference to join the event.

This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

Skyrmion-based devices have been proposed as candidates for future low-power, ultra-dense nanocomputing and neuromorphic systems enabled by the characteristic properties (nanoscale size, non-volatility, robustness, low current density of propagation) of magnetic skyrmions, arising from their topology [1-2]. This is more pressing especially since the recent experimental demonstrations at room temperature (e.g., in technologically relevant magnetic multilayers (MMLs) [3-4]). At the same time, skyrmions have attracted extensive interest in CMOS-compatible nanodevices that can emulate biological synapses. Specifically, a multi-bit storage device using skyrmions as information carriers (bits) has been proposed in ideal conditions [5-6]. However, room temperature operation is required to integrate skyrmionic synapses in practical future devices. In our recent work [7], we propose a nanoscale skyrmionic synapse composed of MMLs that enables room temperature device operation (Fig. 1). We demonstrate that when embedding such MML skyrmionic synapses in a simple spiking neural network (SNN) with the spike-timing-dependent plasticity (STDP) learning rule, we can achieve only a ~75% classification accuracy in the MNIST handwritten data set. We propose that this performance can be significantly improved to ~98.61% by using a deep SNN with supervised learning rules. Our results illustrate that the proposed skyrmionic synapse can be a competitive candidate for future energy-efficient neuromorphic computing and edge computing.

![](https://assets.underline.io/uploads/markdown_image/1/image/ab5e21eb72c5f492aa06ba6e24bb2d6f.jpg)

Fig. 1. Schematic of biological neurons connected with a synapse, and the proposed nanoscale multilayer skyrmionic synapse device. The multilayer structure enables room-temperature operations.

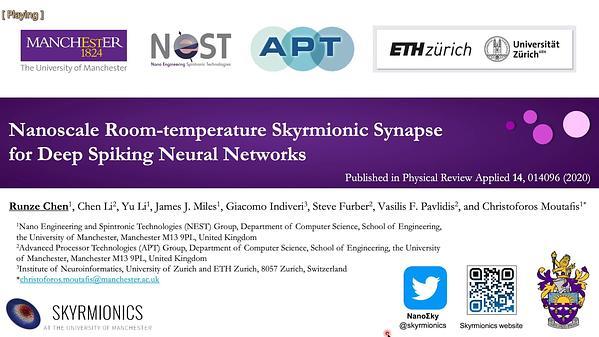

Nanoscale room-temperature skyrmionic synapse for deep spiking neural networks
