Abstract Body: Doping is fundamental to CMOS technology. While large-scale synthesis of two-dimensional transition metal dichalcogenides (2D TMDCs) is maturing, controllable and scalable doping in 2D TMDCs must be established before integration in next-generation electronic, logic-memory, and magnetic devices. While ion implantation works well for bulk and thin film silicon, it is difficult to achieve in 2D materials due to their ultrathin nature, therefore other doping methods should be explored to satisfy this technological need. Substitutional doping is a promising candidate for scalable, tunable doping of 2D TMDCs. In this work we use metal organic chemical vapor deposition (MOCVD) to synthesize high quality Re-doped MoS2. Employing Re2(CO)10 as a gas-source dopant precursor within the MOCVD process, we exhibit unprecedented control over Mo-substitutional doping concentration confirmed by a combination of X-ray photoelectron spectroscopy and Time-of-Flight Secondary Ion Mass Spectrometry measurements. By being able to precisely control precursor injection, we elucidate the importance of dopant introduction timing on doping efficiency. We find that when the dopant is introduced during the nucleation stage, Re incorporated into the lattice is enhanced by ~30% compared to when the dopant is introduced exclusively in the lateral growth stage. Having optimized the substitutional doping process, we show that the dopant ionization energy is large in the monolayer limit due to both quantum confinement effects and reduced dielectric screening. The high ionization energy of Re in ML Re-MoS2 prevents dopant activation and results in deteriorating transport properties with higher doping levels. Finally, we will discuss the impact of layer number on dopant ionization energy and carrier concentration based on scanning tunneling microscopy and spectroscopy and field-effect-transistors transfer characteristics.

EMC 2021

Controlled Rhenium Doping of MoS2

2d tmds

mocvd

doping

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC), which will be held during the same week, from June 20-23. This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

![](https://assets.underline.io/uploads/markdown_image/1/image/eb26c24a18d5d1030616afa4f993cf89.png)

<a href="https://www.mrs.org/docs/default-source/meetings-events/mrs-conference-services/2021/emc-2021/2021-emc-program-at-a-glance-6-16-21.pdf?sfvrsn=e39f950c_4">Latest Program-at-a-Glance</a>

<a href="https://drive.google.com/file/d/1eiS1ao4p83VNy8xgHs3Rls7gTQjx7Rc4/view?usp=sharing">Full Program with Abstracts</a>

technical paper

Abstract Body: β-gallium oxide (Ga2O3) is a promising material for applications in power electronics and as a transparent conducting oxide due to its wide bandgap of 4.8 eV and high breakdown electric field of 8 MV/cm. Fundamental properties such as doping, mobility, optical absorption, luminescence, and charge trapping are determined by the device’s ensemble of defects. Thermodynamic simulations model the limiting case where the system has reached equilibrium; however, all real systems are limited by both kinetics and thermodynamics during device processing and operation. Here, we present a coupled reaction-diffusion solver used to study time-dependent, one- and zero-dimensional systems, going beyond thermodynamic predictions for defects. By using a detailed reaction mechanism, we can model carrier-defect interactions, such as trapping and emission, resulting in an in-depth description of time-dependent device behavior and accurate device characterization. The solver uses the finite volume method to approximate spatial derivatives and implicit time stepping for time derivatives. This allows us to model surface defect formation and subsequent diffusion into the bulk, as well as bulk defect formation. Using an implicit time stepping scheme enables us to study an extraordinary range of time scales, from femtoseconds to years, unlocking possibilities to simulate device lifetime reliability in addition to device processing.

Time-Dependant Simulations of Defect Kinetics and Thermodynamics in Gallium Oxide

Abstract Body: Rare-earth chromites (RCrO3) have Néel temperature (TN, above which these become paraelectric) in the range of 100-280 K, which is much higher than the magnetic transitions observed in rare-earth manganites (RMnO3). These family of compounds have been studied for the magnetoelectric-multiferroic (ME-MF) for their potential applications in various devices including magnetic field sensors, energy harvesting devices, and magnetic refrigeration (MR), to name some. In case of ME-MF based devices, it is desirable to have the transitions close to room temperature. In this talk, the structure, dielectric, and magnetic properties of some RMnO3 and RCrO3 based materials will be presented with a focus on their band gap and mutliferroic behavior and the structure-property relations.

Rare-Earth Chromites and Rare-Earth Manganites—Structural-Property Relations

Abstract Body: In recent years, III-V semiconductor nanowires (NWs) have significantly attracted researchers due to one-dimensional architecture, quantum confinement effects, and a higher tolerance for stress-strain mismatch that allow greater freedom in engineering combinations of material systems in a variety of various nanowire architectures to meet the demands of next-generation optoelectronic devices. Dopant incorporation in a well-controlled manner is essential to realize advanced devices in NW configuration successfully. Unfortunately, the knowledge obtained on dopant incorporation and carrier concentration from the thin film studies cannot be directly translated to NWs due to the dopant’s influence on the growth kinetics and different growth mechanisms along with the axial and radial directions. The commonly used measurement techniques in thin films for the determination of carrier concentration namely, Hall effect, field-effect transistor, and capacitance-voltage require highly sophisticated lithography steps. In the last decade, several characterization methods have evolved for the assessment of dopants in NWs namely, off-axis electron holography for which the sample preparation is complex, and it requires additional information on the NW thickness and homogeneity; secondary ion mass spectrometry and atom probe tomography requires a standard of known dopant concentration and is destructive. Therefore, a combination of conductive-atomic force microscopy (C-AFM), scanning Kelvin probe microscopy (SKPM), X-ray photoelectron spectroscopy (XPS), and ultraviolet photoelectron spectroscopy (UPS), provide a set of excellent characterization techniques for doping assessment, as they do not involve any complex contact fabrications. In this work, we evaluate the carrier concentration and incorporation of Beryllium (Be) dopants in GaAs NWs and Tellurium (Te) dopants in GaAsSb NWs grown using Ga-assisted molecular beam epitaxy (MBE) with variation in Be cell temperatures (TBe) from 750 oC to 950 oC and Te cell temperatures (TGaTe) from 500 oC to 570 oC, respectively. The extensive research interest in GaAs and GaAsSb NWs stems from its narrow bandgap region covering the important optical telecommunication wavelengths of 1.3 µm and 1.55 µm. The current-voltage measurements using C-AFM of the vertical single NW showed a significant enhancement in current for GaAs NWs doped with TBe at 950 oC and GaAsSb NWs doped with TGaTe at 550 oC. The carrier concentration of Be-doped GaAs and Te-doped GaAsSb NWs are found using COMSOL Multiphysics fitting. From XPS and UPS, the atomic percent, work function, and carrier concentration of Be-doped GaAs NWs and Te-doped GaAsSb NWs are determined. A shift in Fermi level towards the valence band with increasing TBe for GaAs NWs, provided evidence towards higher Be incorporation with TBe - 950 oC doped NWs having a work function of 5.6 eV. Whereas the Fermi level is shifted towards the conduction band in Te–doped GaAsSb NWs. The values of electron density from UPS concur very well with the values of electron density determined from C-AFM. The change in surface potential observed in doped NWs in SKPM characterization also provided strong evidence of Be and Te incorporation. Hence, these surface analytical tools without any contact fabrication are found to be powerful characterization techniques for direct measurement of the dopant levels in NWs, which are critical for bandgap engineering design of optoelectronic devices. Acknowledgement This material is based upon research supported by the Air Force Office of Scientific Research (AFOSR) under grant number W911NF1910002.

Doping Assessment of Ga-Assisted MBE Grown Be-Doped GaAs and Te-Doped GaAsSb Nanowires for Infrared Photodetector Application

Abstract Body: Point defects in wide bandgap semiconductors can provide robust, on-demand single photons that can be used in quantum technologies. Despite the appeal of defect-based single-photon emitters (SPEs), sub-diffractional length-scales of defects make traditional optical characterization techniques insensitive to local variations in the material response. Traditionally, photoluminescence (PL) spectroscopy is used to measure the emission spectrum and even map local intensities, however, spatial resolution is typically restricted to sizes on the order of a micron. However, advances in nano-optic probe technologies such as scattering-type scanning near-field optical microscopy (s-SNOM), can provide optical information about a material with nanoscale spatial resolution (< 20nm)1. Here, s-SNOM employs local evanescent fields confined to the apex of a metallized AFM tip following irradiation with a monochromatic laser to probe the material response with this sub-diffractional spatial resolution. While s-SNOM can be performed with a range of frequencies from visible to THz, infrared frequencies are used to exploit the contrast in vibrational resonances between a material and any local defects, thereby creating a two-dimensional spatial map. The tradeoff for high resolution s-SNOM is excessive scan times over large areas (>100μm2) and imaging at only a single incident frequency, therefore another imaging technique must be used to navigate the sample of interest and to identify spectroscopic resonances of interest. Here, PL and nano-FTIR spectroscopies offer a highly complementary toolset with s-SNOM. Using PL intensity mapping in a scanning confocal microscope, ensembles of nano diamonds (d=134nm) with nitrogen-vacancy (NV) defects can be identified by high-intensity regions (Fig. 1a) and verified from the corresponding collected emission spectrum (Fig. 1b). FTIR spectroscopic measurements of similar diamond samples with very high NV densities have been found to correlate with additional vibrational absorption bands in the 1100-1400cm-1 range (Fig. 1c) with two prominent peaks2, indicative of vibrational modes due to the modified crystal bonds making up the NV defect. By mapping spatial regions featuring nano diamond NVs via s-SNOM, we hypothesize that one can map out the local distribution of the defect vibrational states. This is presented through s-SNOM phase maps recorded within a region of high PL intensity using a probing frequency (1177cm-1) within the absorption band of the NVs (Fig. 1d). Regions of high phase contrast correspond to high local absorption and three regions, circled in white, display magnitudes of high contrast at this frequency. However, the phase contrast is diminished when probing the sample with a different frequency (1450cm-1), outside of the NV absorption band (Fig. 1e). Regions of high phase contrast present in both images (1d,e) are attributed to fabrication residue, polymethyl methacrylate, which absorbs at both probed frequencies. The s-SNOM and PL maps suggest that the highlighted features are nano diamonds containing photoluminescent NVs but is still inconclusive. However, nano-FTIR provides direct measurements of IR reflection and absorption spectra from samples without diffraction limitations3 using s-SNOM principles. Employing it to measure the spectra of the high contrast regions will enable a direct comparison to its bulk counterpart, conclusively determining the nature of the additional vibrational modes. Correlating PL with s-SNOM imaging has been demonstrated on extended defects, but not so with point defects4. Diamond NVs are appropriate for developing this technique because of their high brightness at room temperature5. This technique could provide a non-destructive method of investigating defect-based SPEs in materials such as hexagonal boron nitride and gallium nitride, whose defect structures have not been fully characterized but are yet still under intense investigation.

Identifying Defect Origins of Single-Photon Emitters Using Infrared Nano-Optic Probes

Abstract Body: Core-shell semiconductor nanowires (NWs) are an attractive alternative to planar devices for multiple applications, including field-effect transistors, photovoltaic devices, light-emitting diodes, and lasers. The core-shell radial junction structure enables electron- or photo-induced electron-hole pairs (EHPs) to be collected with shorter diffusion lengths due to the small NW diameter. Furthermore, the collection of the EHPs inside the core is free from surface recombination, potentially improving the energy harvesting efficiency. Electron-induced-beam current (EBIC) measurement is a complementary technique in situ in a scanning electron microscope (SEM), collecting excess carriers in a biased diode as a function of beam position and accelerating voltage. In this talk, we will present the analysis of carrier diffusion properties in unprocessed, free standing core-shell GaAs NW diodes. The carrier kinetics in both the n-type core and the p-type shell were determined by analyzing radial EBIC profiles as a function of beam energy. These profiles are highly sensitive to changes in depletion widths and minority carrier diffusion lengths due to geometric effects. Combined with Monte Carlo simulations, they permitted measurement of the n-type core, minority carrier diffusion length, as well as the depletion widths as a function of radial direction. A relatively short minority carrier diffusion length (50 nm) found near {112}B surface facets can be attributed to bulk point defects originating from low-temperature growth (400 °C). Depletion widths were found to be smaller in <112>B directions than in <112>A, likely due to different dopant corporation efficiencies of Te and Zn in the core and the shell, respectively, and to the very thin shell on the {112}B surfaces.

Measurement of Minority Carrier Diffusion Lengths in Core-Shell GaAs NW p-n Junctions

Abstract Body: Printed electronics is an inexpensive way of producing electronic devices for every-day applications such as flexible biosensors, affordable RFID price tags and large-area optoelectronics. Transistors are the most fundamental components of many digital and analog circuits. Printed organic thin-film transistors (OTFT) consist of different functional layers deposited from solution. The conductive electrodes are commonly printed using metal nanoparticles that need to be sintered to become conductive. These electrodes are usually printed on other previously solution-processed layers. However, annealing the electrodes will impose another annealing step on the previously deposited layers. Depending on the chemical structure of these layers, their surface or bulk might undergo changes that might affect the final device performance. In bottom-contact bottom-gate organic transistors, the source and drain electrodes are printed onto the gate dielectric layer, which will undergo the electrode post-annealing. In this work, the effect of changing the annealing temperature of silver electrodes in p-type organic transistors is studied. ITO-coated glass is used as the substrate, where the ITO layer works as the gate electrode. A dielectric layer of Teflon AF 1600 (3% in Fluorinert FC-40) then covers the ITO layer through two spin-coating steps. This dielectric layer is subsequently annealed at 150°C for 30 minutes resulting in 450 nm thickness. Since this dielectric layer has low surface energy, it is not possible to form a line of connected ink droplets through printing, therefore the dielectric layer is plasma treated to increase its surface energy. Afterward, for the source and drain electrodes, silver nanoparticle ink is inkjet-printed with a custom-made printer and a 60 μm diameter nozzle. The transistors have varying channel length (20 - 75 μm) and 1.3 mm width. These electrodes are then sintered at different temperatures for 30 minutes (after 5 minutes heating at 60°C to prevent coffee ring effect). This step also acts as a second post-annealing step for the dielectric layer. Finally, the organic semiconductor PDBPyBT is spin-coated in the last step, followed by annealing at 120°C for 10 minutes. The transistors are p-type and are biased at a drain voltage of -120 V in saturation. Silver annealing temperatures of 80°C, 100°C, 120°C, and 200°C are studied. Devices annealed at 120°C show the best performance with the maximum saturation field-effect mobility of 0.13 cm2/V.s and the maximum saturation Ion/off ratio of 3.41x107. The difference in performance between different electrode sintering temperatures cannot be explained by changes in electrode conductivity because it is much lower than the channel resistance in all studied cases for this ink. The bulk dielectric properties of the Teflon gate dielectric also remain unchanged during the electrode annealing step with a dielectric constant of 2.1. However, the Teflon surface properties are changed. Water contact angle increases monotonically from 85° with no post-annealing to 120° with 200°C post-annealing. With 200°C electrode annealing, this leads to partial dewetting and accumulation of the semiconductor between the more wettable source and drain electrodes. The resulting large thickness of the semiconductor mainly deteriorates device off-state performance reducing the average on-off-ratio from 1.14x107 to 7.25x105. For 80°C, 100°C, and 120°C electrode annealing, the semiconductor thickness remains constant at 100 nm, however, the Teflon surface becomes more hydrophobic. It has been observed before that organic semiconductors perform better on more hydrophobic surfaces, which usually requires a chemical surface modification step. Here, we show that this can be achieved by a simple post-annealing step, which is already part of device fabrication to sinter the source and drain electrodes and should therefore be considered when designing the process flow of the complete device.

Effect of Annealing Printed Electrodes on Gate Dielectric Hydrophobicity and Device Performance in Organic Transistors

Abstract Body: Conjugated polymers (CPs) have found great success as active materials in organic electrochemical transistors (OECTs), which can be integrated into bioelectronic devices for cell monitoring and stimulation.1,2 The success of CPs in this application is dependent on their material design: CPs must exhibit electrochemical activity in aqueous environments and support OECT operation in the energy-efficient, accumulation mode. Current materials such as PEDOT:PSS present several challenges, including depletion mode operation in OECTs, which is less energy-efficient; water solubility, which necessitates crosslinking or post-treatment;3 and high acidity, which can limit their biocompatibility with specific cell lines.4 Consequently, there is a clear need to develop new CPs for aqueous OECTs which overcome these limitations. To this end, we have synthesised and characterised a new CP, poly(ethylenedioxythiophene) functionalised with isopropyl-protected phosphonate groups (PEDOT-Phos). This material is readily processed in organic solvents, can be proton doped with non-oxidising acids, and exhibits reversible electrochemical activity in aqueous electrolytes. Most importantly, we used PEDOT-Phos as the channel material in aqueous, accumulation mode OECTs which boast low threshold voltages and high volumetric capacitances and transconductances, without requiring additives or post-treatments. Overall, PEDOT-Phos is a promising electronic material for applications in energy-efficient, organic bioelectronics. References: (1) Hopkins, J.; Travaglini, L.; Lauto, A.; Cramer, T.; Fraboni, B.; Seidel, J.; Mawad, D. Photoactive Organic Substrates for Cell Stimulation: Progress and Perspectives. Adv. Mater. Technol. 2019, 1800744, 1800744. https://doi.org/10.1002/admt.201800744. (2) Fidanovski, K.; Mawad, D. Conjugated Polymers in Bioelectronics: Addressing the Interface Challenge. Adv. Healthc. Mater. 2019, 8 (10), 1–9. https://doi.org/10.1002/adhm.201900053. (3) Stavrinidou, E.; Leleux, P.; Rajaona, H.; Khodagholy, D.; Rivnay, J.; Lindau, M.; Sanaur, S.; Malliaras, G. G. Direct Measurement of Ion Mobility in a Conducting Polymer. Adv. Mater. 2013, 25 (32), 4488–4493. https://doi.org/10.1002/adma.201301240. (4) Mantione, D.; del Agua, I.; Sanchez-Sanchez, A.; Mecerreyes, D. Poly(3,4-Ethylenedioxythiophene) (PEDOT) Derivatives: Innovative Conductive Polymers for Bioelectronics. Polymers (Basel). 2017, 9 (12), 354. https://doi.org/10.3390/polym9080354.

Synthesis and Characterisation of Phosphonated PEDOT—An Organic Material for Energy-Efficient Bioelectronics

Abstract Body: Two-dimensional (2D) semiconductors such as transition metal dichalcogenides (TMDs) have captivated the attention of the scientific community for about a decade now because they have demonstrated a multitude of desirable properties for flexible electronics and optoelectronics. However, a major materials challenge of 2D semiconductors is that they tend to form a substantial Schottky barrier (SB) with most metals used for making electrical contacts, severely limiting both the fundamental research and electronics/optoelectronics applications of 2D semiconductors. Efforts to eliminate/minimize the SB by selecting contact metals with high (low) work function for holes (electrons) have been hampered by the nearly ubiquitous presence of Fermi-level pinning. Van der Waals (vdW) contacts have recently emerged as a promising contact-engineering strategy to minimize the Fermi-level pinning effect at the metal/2D semiconductor interface. Electrical contacts formed by transferring prefabricated metal electrodes onto 2D semiconductors demonstrated SB heights (SBHs) approaching the Schottky-Mott limit, which was attributed to the minimization of structural and chemical defects at the interface by avoiding direct metal deposition on the 2D semiconductors. However, these contacts are still depletion-type with a notable positive SBH even when the work function of metal is significantly larger than the ionization energy of 2D semiconductors, indicating that Fermi-level pinning is still present. To date, accumulation-type ohmic contacts completely free of a SB have not been experimentally demonstrated in 2D semiconductor FET devices to the best of our knowledge. We report the realization of accumulation-type vdW Ohmic contacts between nearly intrinsic WSe2 and degenerately p-doped MoS2 (p+-MoS2). Dual-gated WSe2 field-effect transistors (FETs) with p+-MoS2 bottom-contacts were fabricated as a test structure to demonstrate true Ohmic contacts free of a Schottky barrier without the need of electrostatically gating the contact regions. Despite that the back-gate electric field is screened by the p+-MoS2 bottom-contacts and the nearly intrinsic nature of WSe2, these devices exhibit ohmic behavior and similarly high performance in the back-gate as well as in the top-gate configuration (with the other gate grounded), including linear output characteristics, a high on/off ratio of 108, and two-terminal extrinsic field-effect mobility exceeding 130 cm2V-1s-1 at room temperature, which approaches the intrinsic mobility of few-layer WSe2 (~ 200 cm2V-1s-1) with further reduction of the series resistance of excess p+-MoS2. The observed ohmic behavior persists to low temperatures. Theoretical modeling shows that a p+-MoS2/WSe2 junction effectively acts as an accumulation-type metal/semiconductor ohmic contact, as signified by an extremely thin depletion region of ~ 1nm in the p+-MoS2 side of the junction and that a substantial accumulation layer of free holes in the WSe2 side. The accumulation-type ohmic contacts between p+-MoS2 and WSe2 is further verified by the results of dual-gated measurements. We attribute the accumulation-type ohmic contacts to nearly ideal metal-semiconductor interface of a vdW junction consisting of 2D materials with similar crystalline and electronic structures, where the SBH is dictated by the Schottky-Mott rule. Because the work function of p+-MoS2 (acting as a 2D metal) is slightly larger than the ionization energy of WSe2 as verified by X-ray photoelectron spectroscopy (XPS), a strong hole accumulation region develops in WSe2 at the vdW interface as predicted by the Schottky-Mott rule. The 2D vdW contacts with negligible Fermi-level pinning can also be used as the baseline to study the mechanism of Fermi-level pinning at the metal/2D-semiconductor interface. *This work was partially supported by NSF (DMR-2004445; ECCS-1849578) and the Kaskas Scholarship Funds.

Accumulation-Type Ohmic Contacts Between Degenerately Doped and Nearly Intrinsic 2D Semiconductors

Abstract Body: Atomically thin (two-dimensional, 2D) semiconductors have shown great potential as the fundamental building blocks for next-generation electronics. However, all the 2D semiconductors that have been experimentally made so far have room-temperature electron mobility lower than that of bulk silicon, which is not understood. Here, by using first-principles calculations and reformulating the transport equations to isolate and quantify contributions of different mobility-determining factors, we show that the universally low mobility of 2D semiconductors originates from the high “density of scatterings,” which is intrinsic to the 2D material with a parabolic electron band. The density of scatterings characterizes the density of phonons that can interact with the electrons and can be fully determined from the electron and phonon band structures without knowledge of electron-phonon coupling strength. Our work reveals the underlying physics limiting the electron mobility of 2D semiconductors and offers a descriptor to quickly assess the mobility. Ref: Long Cheng, Chenmu Zhang, and Yuanyue Liu, Phys. Rev. Lett. 125, 177701 (2020)

Why Two-Dimensional Semiconductors Generally Have Low Electron Mobility

Abstract Body: Transition metal dichalcogenides (TMDCs) are considered promising channel materials in future sub-5nm transistors due to their atomic-scale thickness, dangling bond-free surface and excellent electrical properties. However, the large contact resistance at the source/drain interface is still a critical issue that limits 2D TMDCs device performance. The contact resistance is affected by the Schottky barrier height (SBH) between the TMDC and the metal contact. Various contact engineering approaches have been explored to lower the SBH, such as optimizing the contact metals, chemical doping, plasma treatments, phase engineering, and others. One of the advantages of TMDCs in this regard is that many can exist in either a metallic or semiconducting phase, which, a property that can be used to. In our previous work, a lateral homojunction of semiconducting 2H-MoTe2 and metallic 1T’-MoTe2 was synthesized in-situ. FETs made on these homojunctions demonstrate an improvement of device performance due to substantially decreasing of the contact resistance compared to direct metal/2H contacts. Those results showed that the SBH of the 1T’/2H contact was much lower than the metal/2H interface. However, in-situ grown homojunctions lack controllability and scalability which limits its applications in TMDCs based devices. Here, we characterize sequential CVD techniques that can be generalized to any combination of TMDC materials. To date, we characterized sequentially-grown 1T’/2H homojunctions where the 1T’ material is MoTe2 and the 2H material is MoTe2, MoS2 and WS2. In all of these structures, the 2H material was first synthesized by CVD on a SiO2/Si substrate, then metallic 1T’-MoTe2 was synthesized by flux-controlled tellurization of molybdenum thin film. The technique shows capability of integration different TMDCs into heterostructures with controllability and compatibility with CMOS fabrication technique which is critical for both technological applications and fundamental sciences. The technique can both be applied to vertical or lateral heterostructures as well. In this paper, we will describe Raman spectra that show two distinct regions of TMDCs which indicates a successful integration of the differing TMDCs materials. We also describe FET made on the sequential-grown MoTe2 homojunctions, which show comparable electrical performance with the previously reported in-situ-grown MoTe2 homojunctions. 2H-MoS2/1T’-MoTe2 and 2H-WS2/1T’-MoTe2 heterostructures also show operational devices which indicates the potential to extend the technique to other TMDCs materials.

Controlled Rhenium Doping of MoS2

Downloads

Next from EMC 2021

Time-Dependant Simulations of Defect Kinetics and Thermodynamics in Gallium Oxide

Similar lecture

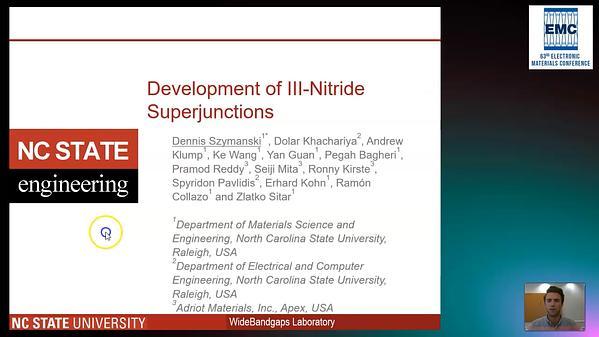

Development of III-Nitride Superjunctions
