Abstract Body: A two-dimensional, solid-state, non-volatile memory has been demonstrated using electric double layer (EDL) gating of two-dimensional (2D) field effect transistors (FETs) with nanosecond scale switching speeds. In EDL gating, oppositely charged ions are accumulated near the 2D semiconductor surface, which induce image charges in the channel. This approach yields large capacitance densities corresponding to sheet carrier densities on the order of 1013 -1014 cm-2. The monolayer electrolyte random access memory (i.e., MERAM) consists of cobalt crown ether phthalocyanine (CoCrPc) and lithium ions deposited as a monolayer on the surface a 2D semiconductor (WSe2) by drop casting and annealing. CoCrPc is an electrically insulating (band gap ~ 1.34 eV) material with four crown ethers and it lays flat on the surface of a 2D semiconductor. Each crown solvates a Li+ ion that can diffuse up or down through the crown ether cavity. In response to an applied electric field, Li+ ions diffuse through the crown ether cavity and are positioned either near or away from the channel resulting in on and off states, respectively. We have previously shown switching behavior on 2D FETs using this material with potential application in non-volatile memory. Achieving well-ordered monolayers of CoCrPc and complete solvation of Li+ into the crown ethers are critical for device operation because the location and orientation of the molecules governs the device mechanism. When the well-ordered electrolyte layer deposited on a WSe2 FET is capped with h-BN, the off-state is stabilized (as confirmed by density functional theory (DFT)) by providing an energetically favorable state to Li+ ions. We have demonstrated the bistability using back-gated pulsed voltage testing with pulse width of 1 sec (± 30 V). Switching speeds down to 50 nanoseconds (limit of the instrument) are demonstrated with an on-off current ratio &gt; 103. Further, we performed the endurance test on the device and demonstrated the stability of the device for 1000 cycles (max. measured) with 50 ns pulse. The on-off current ratio was maintained (&gt; 103) even after 1000 switching cycles. Current work includes quantifying performance metrics for several devices and top-gating these devices to decrease program/erase voltages.

EMC 2021

High-Speed Two-Dimensional Solid-State Non-Volatile Memory Based on Electric Double Layer Gating Using a Monolayer Electrolyte

The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

**Topics of interest**

* Heteroepitaxial & Bulk Materials Growth
* Gate Dielectrics & Surface Passivation
* Device Structures & Fabrication Techniques
* Device Characterization & Modeling
* Very-High Efficiency or Compact Converters
* Safe Operating Areas of Wide Bandgap Devices, Including Short Circuit, Spike, & Transient Tolerance
* Harsh Environment (High Temperature) Operation & Reliability
* Packaging Power Modules & ICs
* Hard-Switched & Soft-Switched Application Analysis
* Gate Drive & Other Auxiliary Circuits
* High-Performance Passive Components
* Applications in Renewable Energy & Energy Storage, Transportation, Industrial Drives, & Grid Power Systems
* Wide Band Gap System Design Philosophies & Strategies
* Radio Frequency (RF) GaN (New)
* Technology Roadmap of Wide Bandgap Including Devices, Applications and Packaging (New)

### Please select the button below to view and download the session papers. The Virtual Proceedings PDF can be downloaded [here.](https://drive.google.com/file/d/171y2_u63V-pc9-bC-eZgHLzJou2oCfST/view?usp=sharing)

[![](https://assets.underline.io/uploads/markdown_image/1/image/c8e1b0a2881d3bb0a75ece4761f43c9f.png)](https://drive.google.com/drive/folders/1GWEFLzH6K4aUBaJiBFJDw4x9sKLTl6-g?usp=sharing)


This event requires a registration to attend, please register [here](https://web.cvent.com/event/536cea3d-4c0d-4d50-8939-529979d80785/summary) to purchase a ticket.

IEEE WiPDA 2021

The IEEE Workshop on Wide Bandgap Power Devices & Applications (WiPDA) provides a forum for device scientists, circuit designers, & application engineers from the Power Electronics & Electron Devices Societies to share technology updates, research findings, experience & potential applications.

Abstract Body: A two-dimensional, solid-state, non-volatile memory has been demonstrated using electric double layer (EDL) gating of two-dimensional (2D) field effect transistors (FETs) with nanosecond scale switching speeds. In EDL gating, oppositely charged ions are accumulated near the 2D semiconductor surface, which induce image charges in the channel. This approach yields large capacitance densities corresponding to sheet carrier densities on the order of 1013 -1014 cm-2. The monolayer electrolyte random access memory (i.e., MERAM) consists of cobalt crown ether phthalocyanine (CoCrPc) and lithium ions deposited as a monolayer on the surface a 2D semiconductor (WSe2) by drop casting and annealing. CoCrPc is an electrically insulating (band gap ~ 1.34 eV) material with four crown ethers and it lays flat on the surface of a 2D semiconductor. Each crown solvates a Li+ ion that can diffuse up or down through the crown ether cavity. In response to an applied electric field, Li+ ions diffuse through the crown ether cavity and are positioned either near or away from the channel resulting in on and off states, respectively. We have previously shown switching behavior on 2D FETs using this material with potential application in non-volatile memory. Achieving well-ordered monolayers of CoCrPc and complete solvation of Li+ into the crown ethers are critical for device operation because the location and orientation of the molecules governs the device mechanism. When the well-ordered electrolyte layer deposited on a WSe2 FET is capped with h-BN, the off-state is stabilized (as confirmed by density functional theory (DFT)) by providing an energetically favorable state to Li+ ions. We have demonstrated the bistability using back-gated pulsed voltage testing with pulse width of 1 sec (± 30 V). Switching speeds down to 50 nanoseconds (limit of the instrument) are demonstrated with an on-off current ratio > 103. Further, we performed the endurance test on the device and demonstrated the stability of the device for 1000 cycles (max. measured) with 50 ns pulse. The on-off current ratio was maintained (> 103) even after 1000 switching cycles. Current work includes quantifying performance metrics for several devices and top-gating these devices to decrease program/erase voltages.

technical paper

The Electronic Materials Conference (EMC) is the premier annual forum on the preparation, characterization and use of electronic materials. This year’s event will feature a plenary session, topical sessions, a poster session and more.

EMC is coordinated with the Device Research Conference (DRC), which will be held during the same week, from June 20-23. This recognizes the strong interaction between device and electronic materials research and provides fruitful exchange of information between attendees of both Conferences.

![](https://assets.underline.io/uploads/markdown_image/1/image/eb26c24a18d5d1030616afa4f993cf89.png)

<a href="https://www.mrs.org/docs/default-source/meetings-events/mrs-conference-services/2021/emc-2021/2021-emc-program-at-a-glance-6-16-21.pdf?sfvrsn=e39f950c_4">Latest Program-at-a-Glance</a>

<a href="https://drive.google.com/file/d/1eiS1ao4p83VNy8xgHs3Rls7gTQjx7Rc4/view?usp=sharing">Full Program with Abstracts</a>

Abstract Body: Phonon polaritons are collective oscillations resulting from the coupling of photons with optical phonons in polar materials and are supported within a material-specific spectral region called the reststrahlen band, which is bounded by the transverse and longitudinal optical phonons. In this region, the material behaves optically like a metal; it is highly reflective and has a negative real part of the permittivity. When polar materials are nanostructured, phonon polaritons can enable a variety of near-field optical effects such as sub-diffraction light confinement. Polar materials that support phonon polaritons can also have anisotropic optical properties, such that the optical constants depend on the propagation direction and polarization of the incoming light. When the principal components of the permittivity tensor have opposite signs, the material is referred to as hyperbolic. Hyperbolic materials are somewhat unusual as they behave optically like a dielectric and metal along different crystal axes, and this anisotropy of the metal-like response has important implications for the physics of its supported modes. Here, we report on the first experimental observation of hyperbolic phonon polaritons (HPs) in calcite nanopillar arrays, demonstrate the aspect ratio dependence of the HP resonance frequencies, discuss fabrication challenges, observe a new, possibly higher order mode as the pitch is reduced, and compare our results to both numerical simulations and an analytical model. We also found that the simulated electric field distributions for the HP modes are not localized to the pillars but extend appreciably into the calcite substrate. In addition, we have fabricated nanohole arrays in calcite, which also support HPs. However, the HP resonances appear to exhibit a slight aspect ratio dependence but opposite in trend to what was observed for the nanopillars. Additionally, the nanohole arrays have fewer HP modes and these modes are blueshifted in comparison to the nanopillars. We are currently using finite difference time domain simulations to characterize the HP modes supported in the nanohole arrays and to understand the differences between these modes and the HP modes confined within the nanopillars. Calcite is an ideal low-loss material for studying HPs that could find applications in mid-IR nanophotonic devices, and so these results are an important step toward creating a library of materials with the appropriate phonon properties to span the infrared.

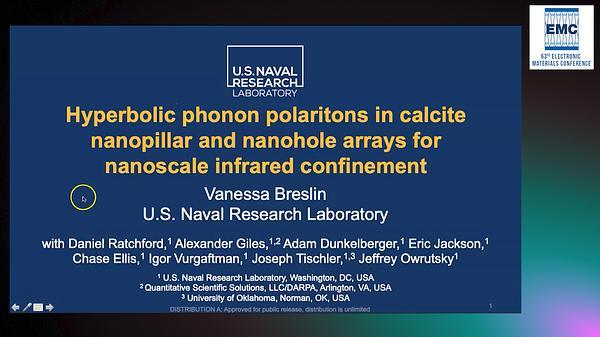

Hyperbolic Phonon Polaritons in Calcite Nanopillar and Nanohole Arrays for Nanoscale Infrared Confinement
