The criticality of rare-earth elements and its impact on the permanent magnet market have initiated a search for alternative material systems, either to fill the magnetic performance gap between ferrites and Nd-Fe-B magnets or to even replace the existing benchmark systems. Ce-based systems are attractive due to the abundance of cerium, however the formation of secondary phases leads to challenges for Ce-based compounds.
In this work we investigated the phase formation properties of CeFe11Ti system together with the microstructural and magnetic properties. Additionally we carried out introduction of interstitial nitrogen and hydrogen atoms to the parent system. The structural and magnetic characterizations of the interstitially doped systems are also investigated by means of experiments and theoretical calculations. A significant reduction is observed for the anisotropy field values of nitrogenated CeFe11TiNx composition and the reason for this reduction is associated to the Kondo screening of the Ce-4f magnetic moment in the ThMn12-type system. The calculations show the enhancement of the screening of the 4f moment for the nitrogenated samples [1].
Temperature dependent structural analysis of the CeFe11Ti composition indicate an Invar-type anomaly around the Curie temperature where a M2 behavior is observed as expected from the magnetostriction theory. Microstructural analysis results indicate the formation of twinned grains which are also observed for other ThMn12-type structures with a twin angle of 58°±2° [2].
Isothermal magnetization measurements of CeFe11Ti compound under hydrostatic pressure were carried out and a slight decrease in the anisotropy field values is observed. This reduction of the anisotropy is associated to the expected reduction of the Curie temperature under 0.45 GPa hydrostatic pressure.
This work was supported by Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) RE-MAP project with the project number 316912154 and MagHEM commissioned by NEDO, Japan.
[1] A. Galler, S. Ener, F. Maccari, I. Dirba, K. P. Skokov, O. Gutfleisch, S. Biermann, L.V. Pourovskii, njp Quantum Materials, 6 (2021) 2
[2] F. Maccari, S. Ener, D. koch, I. Dirba, K. P. Skokov, E. Bruder, L. Schäfer and O. Gutfleisch, Journal of Alloys and Compounds, 867 (2021) 158805


REPM 2021: The 26th International Workshop on Rare-Earth and Future Permanent Magnets and their Applications

Correlating changes of the unit cell and microstructure with the magnetic properties of CeFe11TiX compounds

kondo screening

cefe11ti

twins

coercivity

It is our great pleasure to invite you to attend the 26th International Workshop on Rare Earth and Future Permanent Magnets and Their Applications (REPM2021) which will be held virtually on June 7-10, 2021. Please note, this is an updated schedule due to COVID-19 travel restrictions which forced us to postpone the conference from summer of 2020. The REPM workshop takes place every two years and is the premier conference on permanent magnets covering a wide range of topics including:

* Rare earth magnets
* Rare earth-free magnets
* Raw materials, mining and recycling
* Advanced synthesis, processing and characterization techniques
* Theoretical modeling of coercivity
* Fundamental properties of advanced magnetic materials
* Thin film magnets
* Applications of permanent magnets

***Workshop***
The workshop will be chaired by Professor George C. Hadjipanayis, University of Delaware, Newark, DE and Dr. Jinfang Liu, President & COO of Electron Energy Corporation, Landisville, PA.
The objectives of the workshop are to bring together engineers and scientists who work on permanent magnets and their applications to present their latest results and exchange ideas on a wide range of relevant topics including resources, raw materials, recycling, processing, fundamental and hard magnetic properties and applications of rare earth and future magnets.

To regsiter for this event, please follow the link below.

poster

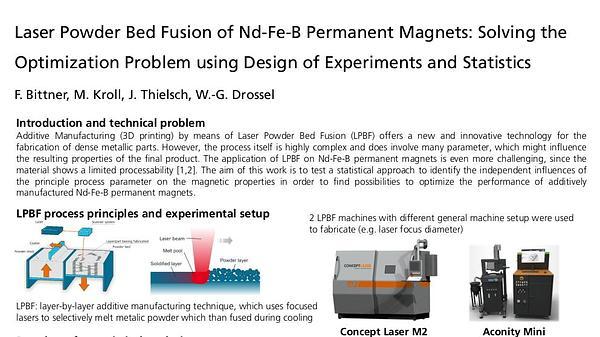

Additive manufacturing of Nd-Fe-B permanent magnets by means of Laser powder bed fusions (LPBF) offers the possibility to overcome geometrical restrictions of the traditional powder metallurgical fabrication route for sintered magnets. LPBF is a layer-by-layer additive manufacturing technique, which utilizes lasers to selectively melt metallic powders, which then fuse during solidification. The final product of this manufacturing technique is a dense metallic part. The unique manufacturing process, which includes local melting of a powder material, rapid cooling, directional heat transfer and several re-heating and re-melting, creates special microstructural features and can improve magnetic properties of the final magnet significantly. For example, the coercivity of a LPBF-processed magnet can be increased by more than 30% - from 700 kA/m to more than 900 kA/m - compared to an Nd-lean powder, which was originally optimized for polymer bonded magnets. However, the right choice of the processing parameters is of critical importance for the successful application of LPBF to permanent magnets. The interaction of the major influencing variables, such as laser powder or scan velocity, is difficult to treat in physically based models. An alternative approach for the creation of a suited process model is a statistically based Design of Experiment, which can be used to find an optimal parameter set in a given experimental space. In our current work we use the DoE approach for the comparison of different LPBF machines and for prediction of optimal magnetic properties within a predefined manufacturing parameter range.

Laser Powder Bed Fusion of Nd-Fe-B Permanent Magnets: Solving the Optimization Problem using Design of Experiments and Statistics

Since its discovery in 1983, Nd-Fe-B is the most important magnet material on the market. It combines the highest maximum energy product at room temperature with a satisfactory coercivity and temperature coefficient, so it is the choice of material for many applications. Due to this properties, Nd-Fe-B-magnets are of strategic importance in various fields relevant for society today and key technologies for the future, like e-mobility, robotics and renewable energy. However, mining and conditioning of the rare earth (RE) containing ores do not only have considerable negative effects on the environment but are also limited to a few locations worldwide. The reliability of supply is considered highly critical [1,2] – a situation that, with the upcoming transitions in the energy as well as in the mobility sectors, will be even intensified in the future.

Industrial recycling of RE permanent magnets from end-of-life applications is one possibility to mitigate criticality to some extent. Re-feeding scrap magnet material back into the process chain not only lessens the supply risk, but magnets made of recycled material are also ecologically favorable due to the reduction of mined and refined rare earth elements. Our study focusses on functional (magnet-to-magnet) recycling via hydrogen and we demonstrate that recycled magnets are a suitable option for various applications [3,4,5,6,7]. This approach has the advantage of directly re-feeding the intermetallic compound Nd-Fe-B into the production chain. It therefore avoids metallurgical and chemical dissolving processes, which involve significant amounts of energy and chemicals. By using hydrogen, it is also possible to separate the magnetic material from the devices without additional processing steps in a simple manner, making it also a feasible technology to be used in countries with high labor costs [7,8].

Scrap magnets, having a determined rare earth content of 29 wt.-%, a remanence of 1.38 T and a coercivity of 1080 kA/m, served as input material. For applications with higher temperatures (like in traction motors) an increased content of highly critical heavy rare earth (HRE) elements like dysprosium or terbium is necessary. In order to optimize the required HRE content, we analyzed in detail the element distribution and mechanism of coercivity increase at atomic level via 3-dimensional atom probe (3DAP) tomography (Figure 1) for two different recycling approaches: (i) Blending the recycled magnet powder with separately processed HRE hydrides (Nd, Dy, Tb and Ce) or by (ii) application of a grain boundary diffusion process (GBDP) with these elements. We also compared the obtained magnetic and chemical properties and the needed HRE input of both processes. In case of GBDP the same coercivity increase can be gained with the half of HRE content. Finally, we build up a test motor with magnets with an optimized HRE distribution after microstructural engineering and show that these magnets compare with the primary ones.
