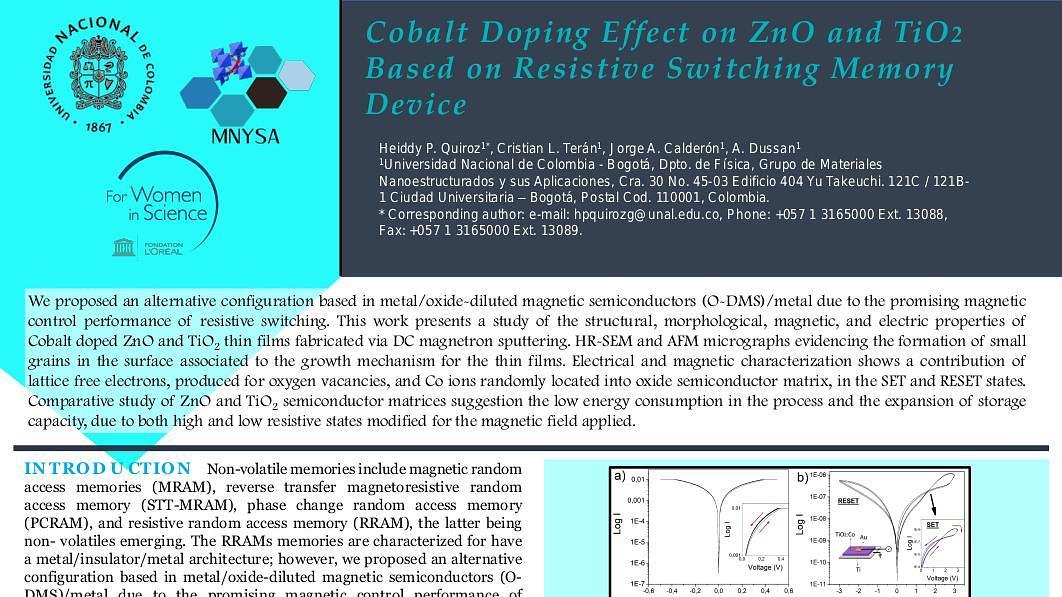

Cobalt doping effect on ZnO and TiO2 Based on Resistive Switching Memory Device

magnetic field.

ferromagnetic-like behaviour

oxide-dilutes

rram


![](https://assets.underline.io/uploads/markdown_image/1/image/2e10c515564e9ec3287ee4c664011c20.png)

The energy cost of storing and moving data is enormous, and is growing at such a rapid pace that within a few years the power demand may overwhelm some developed nations. Non-volatile memory (NVM) and neuromorphic computing are enabling critical advances in this area, but there are many scientific and technological challenges. This conference will cover the materials challenges of different memory technologies, from the fundamental processes and mechanisms, to industry perspectives on materials specifications and manufacturing.

poster

In this work, we present structural, morphological, magnetic, and electrical properties of GaSb/Mn multilayer deposited via DC magnetron sputtering at room temperature and 423 K. Through Raman measurements, it was possible to determine the formation of p-type GaSb layers. HR-SEM shows the multilayer architecture with columnar microstructure in the formation of layers with grain nucleation in the surface. The effect of the substrate temperature contributed to the stress effects on the layers. Formation of the interlayers between GaSb and Mn layer was determined via Rutherford Back-Scattering spectra. These interlayers were associated with diffusion process during deposition and contributed to the magnetic behavior of multilayers. A ferromagnetic-like behavior was observed in the multilayers associated to the domains formation due to the interlayers presence. I-V curves show a RESET-SET states of multilayer system with bipolar behavior, which can be modified from external magnetic fields.


GaSb/Mn Multilayers Via DC Magnetron Sputtering: A Study of Interface Structure for Non-Volatile Memories Applications

Resistive switching memories are a serious contender for high density computing memory in the future. The operation of valence change memories specifically relies on a migration of defects within the oxide layer. This is assumed to be the case in our silicon dioxide devices[1]. It is therefore crucial we understand the properties of the migrating defects, such as their mobilities, so that we can simulate devices more effectively and with better precision. We are investigating a phenomenon observed within oxide capacitors known as the current transient[2] as one potential mechanism to probe defect mobilities and their effect on interface barriers.
The current transient phenomenon arises when a constant voltage is applied to a leaky oxide capacitor causing a distinctive transient to be observed. The device current initially increases rapidly up to a maximum, then levels out, and finally decays slowley. This results in a characteristic peak observed in the current-time plot. Although we have previously used it to carry out computations[3], it has also been suggested that oxygen vacancy mobilities can be obtained from such transients[4] by analysing the dynamics using a space charge limited current (SCLC) model[2,5]. However, our investigations into this effect suggest that the SCLC theory may not be an accurate representation of the changes occurring within our own devices.
To investigate the validity of the SCLC model we have developed techniques to repeatably induce current transients within devices as well as novel analytical techniques that reveal more information on the dynamics of the transient. In doing so, we have been able to develop an alternative model that may help explain the current transient as a two-part process which is the result of charge injection and a field drive migration of defects occurring in parallel.
While this model differs to the SCLC theory, it still predicts defect mobility to be a measurable observable and may provide a more accurate representation of this quantity. Additionally, it may allow us to determine interface barrier heights at the source of electron injection - something which cannot be determined from the SCLC analysis.
Our new approach to analysing current transients may prove to be an important probe into the dynamics of defects within resistive switching memories.

1 A. Mehonic, M.S. Munde, W.H. Ng, M. Buckwell, L. Montesi, M. Bosman, A.L. Shluger, and A.J. Kenyon, Microelectronic Engineering 178, 98 (2017).
2 A. Many and G. Rakavy, Physical Review 126, 1980 (1962).
3 D.J. Mannion, A. Mehonic, W.H. Ng, and A.J. Kenyon, Frontiers in Neuroscience 13, 1386 (2020).
4 S. Zafar, R.E. Jones, B. Jiang, B. White, P. Chu, D. Taylor, and S. Gillespie, Applied Physics Letters 73, 175 (1998).
5 M.A. Lampert and P. Mark, (1970).




Improving the accuracy of defect mobilities and observing interface effects of resistive switching memories using the current transient phenomenon

Vanadium dioxide (VO2) has been widely studied for its prominent insulator-metal transition (IMT) near room temperature and potential applications in novel memory devices and brain-inspired neuromorphic computing. We report on the fabrication of in-plane VO2 metal-insulator-metal (MIM) structures and reproducible switching measurements in these two-terminal devices. The VO2 film grown on TiO2 (001) substrate by pulsed laser deposition (PLD) was etched into bridge structures with different sizes. Resistive switching can be achieved by applying current/voltage bias, which creates Joule heating in the device and triggers the IMT. We observe repeatable volatile switching and a clear correlation between the switching power and device size. Here, we also report that our memory element is capable of multi-level storage in a single cell. By adjusting the compliance and voltage bias, we are able to freely and reliably move between these intermediate levels. This approach provides a gateway to mimic neurons and synapses with hardware components, allowing for much denser and complex neural networks.

Multi-level operation in VO2 resistive switching devices

Magnetoelectric materials have very broad prospects in sensors, next-generation memory devices, etc. However, the practical application of magnetoelectric exchange films is still challenged by many factors, such as the substrate clamping effect, the leakage problem, and the large bias field. In response to the above challenges, we have taken the following three measures. First, we adopted a vertically aligned nanocomposite (VAN) structure instead of the traditional multilayer structure to overcome the substrate clamping effect and achieve an efficient strain coupling. Secondly, we chose the less leaky Na0.5Bi0.5TiO3 instead of BiFeO3 as the ferroelectric matrix. A p-n junction formed at the film-substrate interface, which further suppressed the vertical leakage current in the nanocomposite film. The low leakage enables the in-situ electric field control of magnetic properties in the ultra-thin multiferroic composite film in a large scale. In the Na0.5Bi0.5TiO3 -CoFe2O4 VAN, the obtained magnetoelectric coefficient is as high as 1.32x10-9 s m-1. Finally, we introduced the antiferromagnetic phase, i.e. NiO, into the traditional ferrimagnetic-ferroelectric two-phase multiferroic composite film to form a three-phase Na0.5Bi0.5TiO3-NiO-NiFe2O4 VAN film, where a self-biased magnetoelectric effect was achieved via the antiferromagnetic-ferromagnetic exchange coupling. These studies have paved the way to the practical application of composite multiferroic thin films in electronic devices, such as magnetoelectric random memory (MeRAM).

Approach to the practical magnetoelectrics with the vertically aligned nanocomposites

In this work we investigate the effect of annealing in different atmospheres (inert: Ar; and reducing: H₂/N₂) towards optimising the electrical operation of Pt/TiOx/Pt devices. Overall, annealed devices exhibit lower operating voltages and more prominent hysteretic behaviour. Additionally we are exploring the effect of the process in both the crystalline structure of said devices as well as on the top Pt/TiOx interface. By carefully tuning the annealing temperature and conditions we can transition from an amorphous film to a microcrystalline and subsequently to a fully crystalline one with pronounced characteristic anatase peaks.


Interface effects of annealing processes on TiO2-based memristive devices

A metal barrier layer (BL) is usually inserted between the top electrode and oxide layers to enhance the cycle-to-cycle uniformity in electrochemical metallization cell (ECM) devices.[1–3] Nevertheless, the oxidation of the metal layer at the BL/oxide interface cannot be avoided.[4] This newly formed oxide interfacial layer influences the switching characteristics of the devices, and, thus, the thickness of the BL should be optimized to achieve the desired uniformity.[5] However, these studies[1–5] do not conduct a comparative observation employing various metal layers that could elucidate the origin of such switching modification. In this work, we explore various metals as a barrier layer in the Ag/ZnO/Pt stack ECM cells. We found that the improvement of cycle-to-cycle uniformity found in the devices made with BL is always accompanied by the increase of set voltage variability and the decrease of the memory window. Materials analysis is conducted, and switching mechanisms are proposed to explain this trade-off phenomenon.

Reference
1 D. Panda, F.M. Simanjuntak, S. Chandrasekaran, B. Pattanayak, P. Singh, and T.-Y. Tseng, IEEE Trans. Nanotechnol. 19, 764 (2020).
2 S. Lim, S. Lee, J. Woo, D. Lee, A. Prakash, and H. Hwang, ECS Solid State Lett. 4, Q25 (2015).
3 C.-A. Lin, C.-J. Huang, and T.-Y. Tseng, Appl. Phys. Lett. 114, 093105 (2019).
4 S. Chandrasekaran, F.M. Simanjuntak, T.-L. Tsai, C.-A. Lin, and T.-Y. Tseng, Appl. Phys. Lett. 111, 113108 (2017).
5 S. Chandrasekaran, F.M. Simanjuntak, R. Aluguri, and T. Tseng, Thin Solid Films 660, 777 (2018).

Role of the metal barrier layer in switching characteristics of digitally switched ZnO-based electrochemical metallization cells

ULTRARAM™ is an emerging charge-based memory that is non-volatile whilst also having ultra-low-energy logic-state switching.1,2 These seemingly contradictory properties are achieved by a triple-barrier resonant tunnelling (TBRT) structure, which utilises the extremely large InAs/AlSb conduction band offset (2.1 eV). Much like flash memory, ULTRARAM™ uses a floating gate to store charge, with non-destructive read of the logic state by a proximate channel. However, due to the TBRT structure only 2.5 V is required to program/erase, which is an order of magnitude lower than flash. Switching times and endurance are predicted to be similar to DRAM. ULTRARAM™ has many potential applications including conventional computing (large-scale and personal), artificial intelligence and the internet-of-things. However, for these to be realised, low-cost mass production must be achieved, necessitating growth on 300-mm Si substrates. Growth of III-V’s on Si presents challenges related to differences in lattice constant, thermal expansion coefficients and the polar/non-polar interface. These degrade epilayer quality due to the formation of threading defects and anti-phase domains.3

Here we report on recent progress on the growth of the III-V ULTRARAM™ on Si substrates by molecular beam epitaxy (MBE). A high-quality GaSb surface is required prior to deposition of the In(Ga)As and AlSb memory epilayers. Several growth techniques, including migration-enhanced epitaxy, interface-misfit epitaxy and two-step temperature growth were used to form two different buffer structures on 4˚ offcut substrates: (A) GaSb/GaAs/Ge/Si, where the Ge layer was deposited by chemical vapour deposition, and (B) GaSb/AlSb/Si, where all layers were grown by MBE. A comparison of these buffer layers, as well as a GaSb/GaAs control sample, is shown in the table below. The GaSb/AlSb/Si buffer was found to have the highest quality surface, exceeding that of the control sample grown on GaAs, and was used for growth of the full memory structure (TEM images below). This material has been processed into the first ULTRARAM™ memories on Si, with testing currently underway.

III-V non-volatile ULTRARAM™ memory on Si

Recently, we have successfully employed the single-band tight-binding model to predict the noncollinear spin torque effect in insulator and spin-filter based magnetic tunnel junctions [1]. However, for real complex magnetic heterojunctions, the injected spin-polarized electrons from ferromagnetic electrode can be strongly influenced by the complicated interfacial spin-polarized charge transfer, which is normally ignored in the tight-binding model can causes discrepancy between computational results and experimental findings.

Our newly developed “JunPy” [2] package has successfully combined the self-consistent Hamiltonian by using the first-principles calculation with the non-equilibrium Green’s function (NEGF) method to obtain the noncollinear spin torque effect in nm-scale magnetic heterojunctions. The divide-and-conquer (DC) method was first applied to reveal the oscillatory decay of layer-resolved spin torques away from the MgO/Fe interface, and suggests a very thin Fe layer thickness below 2 nm to preserve the efficient current-driven magnetization switch [3]. We further developed the Landau-Lifshitz-Gilbert (LLG) equation implemented by our calculated spin transfer torque (STT) effect to simulate the magnetization switching in Fe/MgO/Fe MTJ in the presence of perpendicular magnetic anisotrpy (PMA), external magnetic field, and current-induced spin transfer torque (STT). The resistance as a function of magnetic field (R-H loop) and of bias (R-V loop) are thus obtained and well comparable with experimental results. On the other hand, our “JunPy” package is applied to predict the giant field-like spin torque (FLST) effect in the amine-ended single-molecule magnetic junction [4], which can efficiently assist the molecule scale magnetic proximity effect via interfacial spin filter effect and may open a new avenue for multifunctional manipulation in next-generation organic FLST-MRAMs with lower power consumption. We believe that this newly developed “JunPy” calculation process not only can efficiently resolve current self-consistent difficulties in first-principles calculation for magnetoelectric and magnetotransport properties, but also may inspire future experimental explorations in novel magnetic heterojunctions for spintronics applications. This work is supported by the Ministry of Science and Technology of Taiwan (MOST 107-2633-M-008-004 and 108-2628-M-008-004-MY3).

[1] Y. –H. Tang et al., Phys. Rev. Lett. 103, 057206 (2009); Sci. Rep. 5, 11341 (2015).
[2] https://labstt.phy.ncu.edu.tw/junpy
[3] B. -H. Huang et al., AIP Advacnes 11, 015036 (2021). This paper was selected as an Editor’s Pick.
[4] Y. –H. Tang and B. –H. Huang, J. Phys. Chem. C 122, 20500 (2018).


Magnetotransport Properties in Magnetic Heterojunctions: Combined First-Principles Calculation with NEGF Method and Spin Dynamics Simulation

Topological insulators (TI) possess topologically protected surface conducting states and enormous spin-orbit coupling (SOC) [1,2]. This makes TIs ideal candidates for Spin-Orbit Torque (SOT) based Non-volatile Memory. A TI adjacent to a ferromagnetic (FM) thin film generates SOT on the magnetization in FM [2-5] because of Spin Hall Effect (SHE). SOT in TI/FM (ferromagnet) films have been reported previously with TI films epitaxially grown with MBE [2-5], which is not ideal for industrial complementary metal oxide (CMOS) processes. Although, there have been reports of SOT from sputtered TIs [6-8], effects of crystalline disorder in SOT characteristics have not been extensively studied. We performed magnetic and Spin-Torque Ferromagnetic Resonance (ST-FMR) measurements to investigate the effect of sputtering growth temperature and hence crystalline ordering on SOT characteristics of Bi2Te3 coupled with NiFe (Permalloy) and CoFeB as FM layers. The Bi2Te3/FM heterostructures revealed a steady increase in out of plane (OOP) magnetic anisotropy with the increase in crystalline order of Bi2Te3. Further, STFMR measurements revealed a nonlinear trend in damping-like spin orbit torque with increase in sputtering growth temperature. We believe that at room temperature growth, smaller grain size in Bi2Te3 causes quantum-confinement governed enhancement in SOT [6]. However, a giant enhancement in SOT characteristics is observed for highly crystalline c-axis oriented Bi2Te3 heterostructure where Bi2Te3 was grown at 250 ºC. Our results provide a clear path towards integration of crystalline TI based spintronic devices in industrial CMOS compatible processes.

Crystalline Order Dependent Spin-Orbit Torque in Sputter Deposited Topological Insulator /Ferromagnet Heterostructures

With the rapidly growing interest in cryogenic electronics, which is driven by the recent progress in spintronics and quantum / superconducting computing, there is an urgent need to develop logic and memory devices that can operate efficiently at low temperatures. To underpin these new developments there is a need for magnetic semiconductors which are compatible with cryogenic temperatures. We will discuss our recent progress in fabricating exactly these materials.

The rare-earth nitride series offer many intrinsically ferromagnetic semiconductors. They have already been incorporated into prototype field-effect transistors, spin-filters and tunnelling structures. They can be doped by controlling the inclusion of nitrogen vacancies, which donate electrons into the conduction band. They have a finite, and tuneable, conductivity even as the temperature approaches 0 K. Furthermore, the electronic and magnetic properties are not derived from the same electrons, as they are in the dilute magnetic semiconductors, i.e. the saturation magnetization and electron concentration can be tuned independently.

We will show electrical transport and magnetic measurements on GdN and DyN displaying their facility to be doped, along with density functional theory based calculations showing that the dopant states do indeed lie in the conduction band at 0~K. These materials provide cryogenically compatible ferromagnetic semiconductors for application in magnetic memory or spintronics devices.
