Electrospinning can be used to produce nanofibers from magnetic materials, forming a magnetic network which may be applied in neuromorphic computing. Besides the influence of the bending radii on the magnetization reversal in such nanofibers [1], the often occurring beads along the fibers have not yet been investigated in detail. Such beads can be assumed to support domain wall formation due to a reduction of the relative impact of the shape anisotropy, in this way influencing magnetization reversal along the fiber.
Here, we show results of simulations of magnetization reversal processes in iron, nickel, cobalt and magnetite fibers with a bead in the middle, produced in three typical dimensions gained by electrospinning [2]. Mostly, magnetization reversal occurs via a vortex state, for all materials and dimensions. Only some angular orientations of the external magnetic field result in double-vortex or meander states, usually followed by a vortex state. The simulations emphasize the impact of beads along electrospun magnetic nanofibers, making magnetization reversal highly reliable and thus such structures useful for data storage and transport in neuromorphic computing and other applications.

References
[1] T. Blachowicz, A. Ehrmann, Magnetization reversal in bent nanofibers of different cross-sections, J. Appl. Phys. 124, 152112 (2018).
[2] F. Amini, T. Blachowicz, A. Ehrmann, Systematic study of magnetization reversal in beaded fibers from different magnetic materials, J. Magn. Magn. Mater. 529, 167855 (2021)

Materials Challenges for Memory

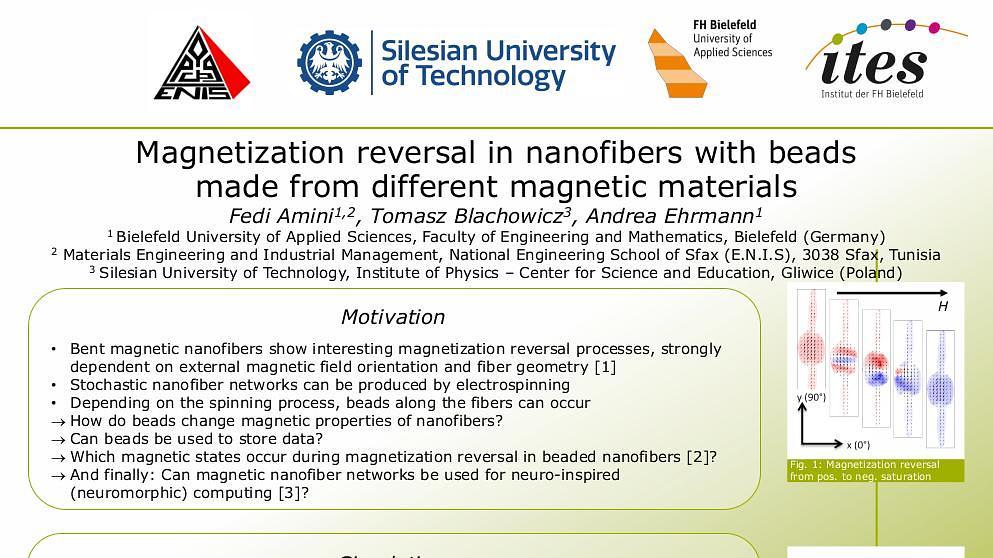

Magnetization reversal in nanofibers with beads from different magnetic materials

magnetization reversal

vortex state

electrospinning

magnetic nanofiber
