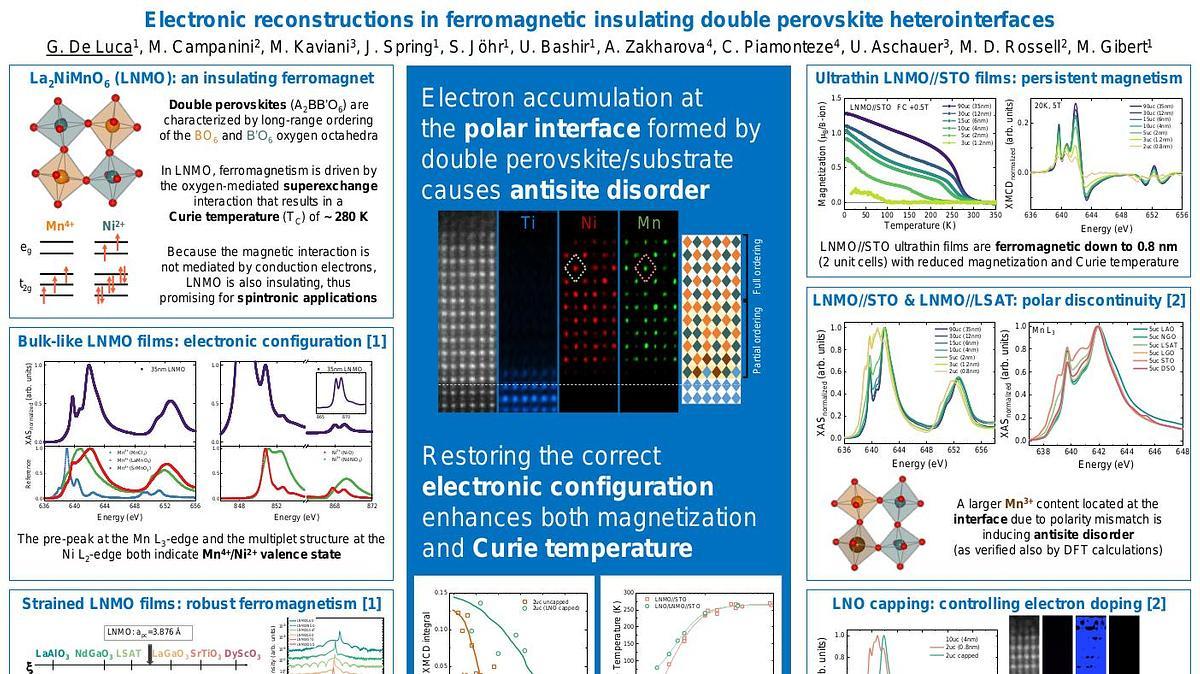

We grew La2NiMnO6 (LNMO) films by radiofrequency off-axis magnetron sputtering on a variety of oxide perovskite substrates. Structural characterization indicates high crystalline quality, absence of parasitic defects and rock-salt ordering of the NiO 6 and MnO 6 octahedra with only minimal degree of antisite disorder.
X-ray absorption spectroscopy (XAS) and confirms the stabilization of Ni 2+ and Mn 4+ valence states. When lowering the thickness of LNMO films grown on SrTiO 3 (STO) we observe a degradation of the ferromagnetic properties that is accompanied by an increase of antisite disorder at the interface between LNMO and STO. Moreover, the polarity mismatch between the film and the substrate triggers an electronic reconstruction that results in additional Mn 3+ states at the LNMO//STO interface.
Despite this occurrence, films as thin as 2 pseudocubic unit cells (0.8 nm) are still ferromagnetic, as verified by x-ray magnetic circular dichroism (XMCD). Capping the LNMO films with a LaNiO 3 layer results in the disappearing of the Mn 3+ content that is supplemented by a restoration of the Curie temperature.
Considering the scarcity of ferromagnetic insulators, LNMO shows great potential to become a significant element for both fundamental research and promising spintronic applications.
