A phenomenon of Y3Fe5O12 (YIG)-ferromagnetic-resonance (FMR) linewidth broadening in magnetically coupled YIG-Co films is reported. The broadened linewidth cannot be attributed to previous effects [1-3] which only depend on the crystalline quality of YIG. Through micromagnetic simulation, the origin of this broadened linewidth was found to be a new type of inhomogeneity effect induced by the inhomogeneous dipolar field of Co layer. Furthermore, it shows that the extent of the linewidth broadening depends on the magnetization state of Co. The broadening is remarkable when the Co domains are random. The influence of Co on YIG-FMR linewidth still exists when the spacer between YIG and Co is 315 nm, indicating it is a long-range effect due to the dipolar origin. Our experiment results reveal that the influence of the dipolar interaction on FMR is remarkable in magnetically coupled heterostructures. Researchers should pay more attention to the dipolar interaction while investigating these systems.

**References:**

[1] L. Chen and C. H. Back* et al., Nature Physics 14, 490–494 (2018). [2] Kh. Zakeri* and J. Lindner et al., Phys. Rev. B 76, 104416 (2007). [3] Hiroto Sakimura and Kazuya Ando* et al. Phys. Rev. Research 1, 013013 (2019).

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/8acabddae0340ae8430a23c27c3fe07a.jpg)
Figure 1 YIG-FMR properties of Sample 1 and Sample 2. The structures of Sample 1 and 2 are YIG (100 nm) and YIG(100)/MgO(15)/Co(3)/IrMn(10)/Ru(2 nm). (a)-(c) and (e)-(g) are H dependence of resonance frequency fr, intensity I and full width at half maximum (FWHM) Δf of Sample 1 and 2, respectively. (d) and (h) are fr dependence of ΔH converted from (c) and (g). Black (red) curves represent the sweep direction is decreasing (increasing) in (a)-(h). The left (right) black dashed lines in (e)-(g) represent the field where Mco=0 as H decreases (increases). In (b) and (f), all the intensity I has been normalized to IINC(100 Oe). In (f), the blue curves represent M/Ms-H loop of Sample 2.

poster

The anomalous Hall effect (AHE) reflects the immense diversity of mechanisms for intrinsic or extrinsic current generation that can be found in the world of magnets. This world offers numerous exciting classes of antiferromagnets, where the anomalous and recently discovered crystal Hall [1] effect as well as the topological Hall effect in non-coplanar antiferromagnets [2] have been studied in the past decades. In this work, we uncover a novel type of Hall effect emerging in generic canted spin systems. Identifying a clear fingerprint of this chiral Hall effect (CHE) in discrete tight-binding models as well as ab-initio calculations is central in establishing a solid understanding of this new phenomenon closely tied to real space topology of magnetic textures. In this study, we provide robust numerical evidence for the CHE in a honeycomb lattice of canted spins and present a material candidate, SrRuO3. We uncover contributions to the Hall conductivity sensitive to the canting angle between neighboring spins which can be directly related to the imprinted vector chirality. Exploring the symmetry properties of the CHE we demonstrate the complex interplay of symmetry, topology and chirality in canted spin systems.

**References:**

[1] L .Smejkal, R. Gonzalez-Hernandez, T. Jungwirth, J. Sinova, Science Advances 6 (2020) [2] L. Smejkal, Y. Mokrousov, B. Yan, A. H. MacDonald, Nature Physics 14, 242–251 (2018) [3] J. Kipp et al., arXiv:2007.01529 (2020)

**Images:**

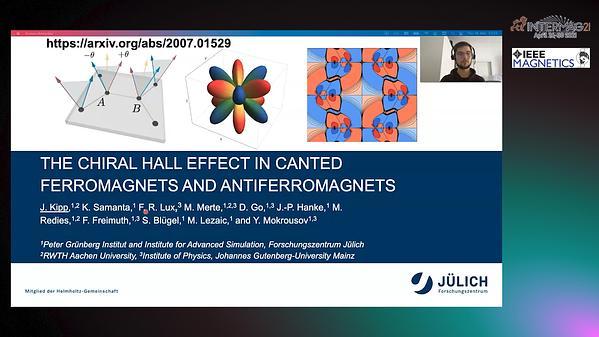

 The chiral Hall effect in canted ferromagnets and antiferromagnets
