In our information society, the importance of energy conservation is increasing year by year. To tackle this issue, the transition from volatile memory to non-volatile memory can be a solution. One of the candidates for non-volatile memories is a racetrack memory&lt;sup&gt;[1]&lt;/sup&gt;, driven by current-induced domain wall motion (CIDWM). For practical use, faster CIDWM and lower threshold current density are key factors. In order to reach this goal, we have been focusing on and investigating Mn&lt;sub&gt;4&lt;/sub&gt;N as a promising material. Mn&lt;sub&gt;4&lt;/sub&gt;N film is an antiperovskite ferrimagnet without rare-earth elements, which is advantageous in fast magnetization reversal due to its perpendicular magnetic anisotropy (&lt;i&gt;K&lt;/i&gt;&lt;sub&gt;u &lt;/sub&gt;~ 1.1×10&lt;sup&gt;5&lt;/sup&gt; J/m&lt;sup&gt;3&lt;/sup&gt;) and a small saturation magnetization (&lt;i&gt;M&lt;/i&gt;&lt;sub&gt;S &lt;/sub&gt;~ 80 kA/m)&lt;sup&gt;[2]&lt;/sup&gt;. Previous study on 1-2μm-wide Mn&lt;sub&gt;4&lt;/sub&gt;N strips showed the fastest spin-transfer-torque-driven domain wall motion (&lt;i&gt;v&lt;/i&gt;&lt;sub&gt;DW&lt;/sub&gt; ~ 900 m/s at 1.3×10&lt;sup&gt;12&lt;/sup&gt; A/m&lt;sup&gt;2&lt;/sup&gt;) at room temperature (RT)&lt;sup&gt;[2]&lt;/sup&gt;, comparable to those reported in the system including rare-earth 4&lt;i&gt;f&lt;/i&gt; magnets or heavy metals. To achieve faster &lt;i&gt;v&lt;/i&gt;&lt;sub&gt;DW&lt;/sub&gt;, Mn&lt;sub&gt;4&lt;/sub&gt;N based mixed crystals have been studied in pursuit of the use of magnetic and/or angular momentum compensation for more efficient CIDWM thanks to diverged damping constants. Recently, Mn&lt;sub&gt;4-&lt;i&gt;x&lt;/i&gt;&lt;/sub&gt;Ni&lt;i&gt;&lt;sub&gt;x&lt;/sub&gt;&lt;/i&gt;N films have been suggested to have a magnetic compensation (MC) point between &lt;i&gt;x &lt;/i&gt;= 0.1 and 0.25 at RT&lt;sup&gt;[3]&lt;/sup&gt;. We found that Mn&lt;sub&gt;4-&lt;i&gt;x&lt;/i&gt;&lt;/sub&gt;Co&lt;i&gt;&lt;sub&gt;x&lt;/sub&gt;&lt;/i&gt;N films have a compensation point between &lt;i&gt;x &lt;/i&gt;= 0 and 0.8 from x-ray magnetic circular dichroism (XMCD) measurements&lt;sup&gt;[4]&lt;/sup&gt;. However, there is a lack of information about the magnetic behavior of Mn&lt;sub&gt;4-&lt;i&gt;x&lt;/i&gt;&lt;/sub&gt;Co&lt;i&gt;&lt;sub&gt;x&lt;/sub&gt;&lt;/i&gt;N at values &lt;i&gt;x&lt;/i&gt; much smaller or larger than 0.8. Considering that the compensation in Mn&lt;sub&gt;4-&lt;i&gt;x&lt;/i&gt;&lt;/sub&gt;Ni&lt;i&gt;&lt;sub&gt;x&lt;/sub&gt;&lt;/i&gt;N takes place in a small range of composition &lt;i&gt;x&lt;/i&gt;, further compensation points can be found when&lt;i&gt; x&lt;/i&gt; is far from 0.8. In this work, we performed XMCD measurements on Mn&lt;sub&gt;4-&lt;i&gt;x&lt;/i&gt;&lt;/sub&gt;Co&lt;i&gt;&lt;sub&gt;x&lt;/sub&gt;&lt;/i&gt;N epitaxial films at &lt;i&gt;x&lt;/i&gt; = 0.2 and 1.3 and investigated the change in magnetic structures by composition ratio to verify MC at RT.&lt;br/&gt;20-30 nm-thick Mn&lt;sub&gt;4-&lt;i&gt;x&lt;/i&gt;&lt;/sub&gt;Co&lt;i&gt;&lt;sub&gt;x&lt;/sub&gt;&lt;/i&gt;N films with &lt;i&gt;x&lt;/i&gt; = 0-1.3 were epitaxially grown on SrTiO&lt;sub&gt;3&lt;/sub&gt;(001) substrates by molecular beam epitaxy. SiO&lt;sub&gt;2&lt;/sub&gt; or Ta capping layers were sputtered &lt;i&gt;in-situ&lt;/i&gt; on the surface to prevent oxidation. X-ray absorption spectroscopy (XAS) and XMCD measurements were performed at BL-16A of KEK-PF for &lt;i&gt;x &lt;/i&gt;= 0.2 and 1.3. In these measurements, we applied an external magnetic field of 5 T perpendicular to sample surfaces. The incidence angle of the circularly polarized x-ray was 54.7°(magic angle) to the plane in order to simplify the sum rule calculation. For &lt;i&gt;x&lt;/i&gt; = 0.8, the XMCD measurements were carried out at BL23SU of SPring-8&lt;sup&gt;[4]&lt;/sup&gt;.&lt;br/&gt;Figures 1(a)-1(c) show the XAS and XMCD spectra of Mn in Mn&lt;sub&gt;4-&lt;i&gt;x&lt;/i&gt;&lt;/sub&gt;Co&lt;i&gt;&lt;sub&gt;x&lt;/sub&gt;&lt;/i&gt;N at &lt;i&gt;x&lt;/i&gt; = 0.2, 0.8&lt;sup&gt;[4]&lt;/sup&gt;, and 1.3, respectively. In these figures, the sharp peak near 640 eV comes from Mn atoms at corner sites (I sites), and the broad peak near 643 eV originates from those at face-centered sites (II sites)&lt;sup&gt;[4]&lt;/sup&gt;. We observed the sign reversals of XMCD signals between &lt;i&gt;x&lt;/i&gt; = 0.2 and 0.8, and also between &lt;i&gt;x&lt;/i&gt; = 0.8 and 1.3. Similar sign reversals were also observed in the XMCD signals of Co atoms. These results indicate that MC occurs twice in the range of &lt;i&gt;x&lt;/i&gt; = 0-1.3 in Mn&lt;sub&gt;4-&lt;i&gt;x&lt;/i&gt;&lt;/sub&gt;Co&lt;i&gt;&lt;sub&gt;x&lt;/sub&gt;&lt;/i&gt;N. Besides, the XAS spectra of Co indicate that Co preferentially occupied the corner sites. We also calculated the mean magnetic moment of Co by using the sum rule analysis. Figure 2 shows the expected magnetic structures derived from the XMCD measurements. Around &lt;i&gt;x&lt;/i&gt; = 0.2, Co atoms preferentially replaced Mn(I) and thus the total magnetic moment of I site and that of face-centered site (II site) became closer. With further increasing &lt;i&gt;x&lt;/i&gt;, the total magnetic moment became zero. In this manner, the first MC occurred between &lt;i&gt;x&lt;/i&gt; = 0.2 and 0.8. After the first MC, the total magnetic moment of II sites became larger and this led to the reversal of magnetic moments of all atoms in order to minimize the Zeeman energy. Above &lt;i&gt;x&lt;/i&gt; = 0.8, Co atoms gradually got to occupy II sites and thus the second MC occurs. As far as we investigated, Mn&lt;sub&gt;4-&lt;i&gt;x&lt;/i&gt;&lt;/sub&gt;Co&lt;i&gt;&lt;sub&gt;x&lt;/sub&gt;&lt;/i&gt;N is the only material which has two MC points at RT. This property can be useful for spintronic devices, for example, the use of compensation in a wide range of composition.&lt;br/&gt;The XMCD experiment for &lt;i&gt;x&lt;/i&gt; = 0.2 and 1.3 was performed with the approval of the Photon Factory Program Advisory Committee (Proposal No. 2019G574).

**References:**

[1] S. Parkin and S. Yang, Nat. Nanotechnol., Vol.10, p.195 (2015)&lt;br/&gt;[2] T. Gushi &lt;i&gt;et al&lt;/i&gt;., Nano Lett., Vol.19, p.8716 (2019)&lt;br/&gt;[3] T. Komori &lt;i&gt;et al.&lt;/i&gt;, JAP, Vol.127, p.043903 (2020)&lt;br/&gt;[4] K. Ito &lt;i&gt;et al.&lt;/i&gt;, Phys. Rev. B, Vol.101, p104401 (2020)

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/afcad013ae3441a446c71d093ae63afb.jpg)
Fig. 1 XAS (blue) and XMCD (black) spectra in (a) Mn&lt;sub&gt;3.8&lt;/sub&gt;Co&lt;sub&gt;0.2&lt;/sub&gt;N, (b) Mn&lt;sub&gt;3.2&lt;/sub&gt;Co&lt;sub&gt;0.8&lt;/sub&gt;N&lt;sup&gt;[3]&lt;/sup&gt;, and (c) Mn&lt;sub&gt;2.7&lt;/sub&gt;Co&lt;sub&gt;1.3&lt;/sub&gt;N films at the Mn &lt;i&gt;L&lt;/i&gt;&lt;sub&gt;2,3&lt;/sub&gt; absorption edges.

![](https://assets.underline.io/uploads/markdown_image/1/image/3f59e17fa54814000208a461221f56c6.jpg)
Fig. 2 Schematic of the expected magnetic structures of Mn&lt;sub&gt;4-&lt;i&gt;x&lt;/i&gt;&lt;/sub&gt;Co&lt;i&gt;&lt;sub&gt;x&lt;/sub&gt;&lt;/i&gt;N.

INTERMAG 2021

 Two magnetic compensation compositions in Mn4-xCoxN epitaxial films at room temperature proved by X-ray magnetic circular dichroism

**Welcome to ACL-IJCNLP 2021!**

The great event is jointly organized by the Association for Computational Linguistics (ACL) and Asian Federation of Natural Language Processing (AFNLP).

As in previous years, the program of the conference includes a poster session, tutorials, workshops and demonstrations in addition to the main conference.


We were able to keep the registration fees similar to those charged for the virtual ACL 2020. The one fee allows attendance at the main conference and any/all tutorials and workshops. These fees would be $125 Regular Early and $175 Regular Late; $50 Student Early and $75 Student Late. Early registration closes at midnight July 11, 2021 (Eastern Daylight Time).

**Reminder:** It is ACL’s policy that at least one author of each accepted paper (including ACL Finding papers) must register for the conference.

**Reminder2:** Underline site will open closer to the event. If you already registered you will receive access detail

Registration is now open

IJCNLP-AACL 2021

The great event is jointly organized by the Association for Computational Linguistics (ACL) and Asian Federation of Natural Language Processing (AFNLP).

In our information society, the importance of energy conservation is increasing year by year. To tackle this issue, the transition from volatile memory to non-volatile memory can be a solution. One of the candidates for non-volatile memories is a racetrack memory[1], driven by current-induced domain wall motion (CIDWM). For practical use, faster CIDWM and lower threshold current density are key factors. In order to reach this goal, we have been focusing on and investigating Mn4N as a promising material. Mn4N film is an antiperovskite ferrimagnet without rare-earth elements, which is advantageous in fast magnetization reversal due to its perpendicular magnetic anisotropy (Ku ~ 1.1×105 J/m3) and a small saturation magnetization (MS ~ 80 kA/m)[2]. Previous study on 1-2μm-wide Mn4N strips showed the fastest spin-transfer-torque-driven domain wall motion (vDW ~ 900 m/s at 1.3×1012 A/m2) at room temperature (RT)[2], comparable to those reported in the system including rare-earth 4f magnets or heavy metals. To achieve faster vDW, Mn4N based mixed crystals have been studied in pursuit of the use of magnetic and/or angular momentum compensation for more efficient CIDWM thanks to diverged damping constants. Recently, Mn4-xNixN films have been suggested to have a magnetic compensation (MC) point between x = 0.1 and 0.25 at RT[3]. We found that Mn4-xCoxN films have a compensation point between x = 0 and 0.8 from x-ray magnetic circular dichroism (XMCD) measurements[4]. However, there is a lack of information about the magnetic behavior of Mn4-xCoxN at values x much smaller or larger than 0.8. Considering that the compensation in Mn4-xNixN takes place in a small range of composition x, further compensation points can be found when x is far from 0.8. In this work, we performed XMCD measurements on Mn4-xCoxN epitaxial films at x = 0.2 and 1.3 and investigated the change in magnetic structures by composition ratio to verify MC at RT. 20-30 nm-thick Mn4-xCoxN films with x = 0-1.3 were epitaxially grown on SrTiO3(001) substrates by molecular beam epitaxy. SiO2 or Ta capping layers were sputtered in-situ on the surface to prevent oxidation. X-ray absorption spectroscopy (XAS) and XMCD measurements were performed at BL-16A of KEK-PF for x = 0.2 and 1.3. In these measurements, we applied an external magnetic field of 5 T perpendicular to sample surfaces. The incidence angle of the circularly polarized x-ray was 54.7°(magic angle) to the plane in order to simplify the sum rule calculation. For x = 0.8, the XMCD measurements were carried out at BL23SU of SPring-8[4]. Figures 1(a)-1(c) show the XAS and XMCD spectra of Mn in Mn4-xCoxN at x = 0.2, 0.8[4], and 1.3, respectively. In these figures, the sharp peak near 640 eV comes from Mn atoms at corner sites (I sites), and the broad peak near 643 eV originates from those at face-centered sites (II sites)[4]. We observed the sign reversals of XMCD signals between x = 0.2 and 0.8, and also between x = 0.8 and 1.3. Similar sign reversals were also observed in the XMCD signals of Co atoms. These results indicate that MC occurs twice in the range of x = 0-1.3 in Mn4-xCoxN. Besides, the XAS spectra of Co indicate that Co preferentially occupied the corner sites. We also calculated the mean magnetic moment of Co by using the sum rule analysis. Figure 2 shows the expected magnetic structures derived from the XMCD measurements. Around x = 0.2, Co atoms preferentially replaced Mn(I) and thus the total magnetic moment of I site and that of face-centered site (II site) became closer. With further increasing x, the total magnetic moment became zero. In this manner, the first MC occurred between x = 0.2 and 0.8. After the first MC, the total magnetic moment of II sites became larger and this led to the reversal of magnetic moments of all atoms in order to minimize the Zeeman energy. Above x = 0.8, Co atoms gradually got to occupy II sites and thus the second MC occurs. As far as we investigated, Mn4-xCoxN is the only material which has two MC points at RT. This property can be useful for spintronic devices, for example, the use of compensation in a wide range of composition. The XMCD experiment for x = 0.2 and 1.3 was performed with the approval of the Photon Factory Program Advisory Committee (Proposal No. 2019G574).

**References:**

[1] S. Parkin and S. Yang, Nat. Nanotechnol., Vol.10, p.195 (2015) [2] T. Gushi et al., Nano Lett., Vol.19, p.8716 (2019) [3] T. Komori et al., JAP, Vol.127, p.043903 (2020) [4] K. Ito et al., Phys. Rev. B, Vol.101, p104401 (2020)

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/afcad013ae3441a446c71d093ae63afb.jpg)
Fig. 1 XAS (blue) and XMCD (black) spectra in (a) Mn3.8Co0.2N, (b) Mn3.2Co0.8N[3], and (c) Mn2.7Co1.3N films at the Mn L2,3 absorption edges.

![](https://assets.underline.io/uploads/markdown_image/1/image/3f59e17fa54814000208a461221f56c6.jpg)
Fig. 2 Schematic of the expected magnetic structures of Mn4-xCoxN.

technical paper

INTERMAG 2021 Welcome Video




<figure class="video_container">
 <iframe src="https://screencast-o-matic.com/player/crflqFVnUpZ?v=6&ff=1&title=0&controls=1" width=640 height=360 frameborder="0" allowfullscreen="true"> </iframe>
</figure>

Want to buy a ticket?

Register for INTERMAG 2021 here

[![](https://assets.underline.io/uploads/markdown_image/1/image/17ce76e7960db633258024eef8d6da7f.png)](https://intermag.org/register)

Got your ticket, but still can’t access the event?

Contact us and our team will look into it.

Multiferroics (MFs) are materials that can combine at least two primary ferroic properties: ferromagnetism, ferroelectricity and ferroelasticity.[1] In the case of magnetoelectric (ME) MFs, coupling between ferroelectricity and ferromagnetism occurs. Throughout the history of MFs, the static ME coupling has peaked the interest of the MF community. However, there is great significance in what happens away from the static regime in MF systems; hence the popular movement toward the exploration of the dynamical ME effect in recent years.[2] Both cases share the same quantum-level microscopic mechanisms, but in the latter case the magnetization and polarization order parameters are not static, but oscillatory. This oscillating behaviour of polarization and magnetization manifests in the hybrid elementary excitations known as electromagnons, which very often lie in the terahertz (THz) or far infrared (IR) region of the spectrum. As the very word indicates, the electromagnons are electro-active magnons,[3] namely collective spin and lattice excitations that couple the dielectric and magnetic properties. Therefore, both the electric and magnetic component of the electromagnetic radiation can be brought into play to excite and detect such dynamical behaviour. The polar antiferromagnet Ni3TeO6 transcends the ME performance of most single-phase MFs, exhibiting non-hysteretic colossal ME coupling.[4] A collinear antiferromagnetic (AFM) order appears below TN = 53 K, inducing a tremendous increase in the existing - but negligible - polarization of the R3 polar structure (up to 3,280 μC m-2 at 2 K). The highest ME coupling value occurs at the spin-flop transition at 8 T. The presence of dynamical ME coupling in Ni3TeO6 was reported in 2017 by Skiadopoulou et al..[5] Two spin excitations were observed simultaneously in Raman and time-domain THz spectra below the Néel temperature TN=53 K. These magnons showed high tunability in external magnetic field. Due to symmetry considerations, these excitations were assigned to electromagnons. Since Ni3TeO6 presents a collinear AFM spin structure, the symmetric exchange striction is most probably responsible for the emergent dynamical ME effect. The quest for compounds with enhanced ME coupling led to the investigation of a series of compounds of the form A3-xBxTeO6 (A, B = Ni, Mn, Co, x=1-2), inspired by the highly praised ME behaviour of Ni3TeO6. In Ni2MnTeO6, although the spin order and magnon spectra closely resemble Ni3TeO6,[6] partial substitution of Ni by Mn shows increased TN by 20 K, while preserving the non-centrosymmetric structure R3.[6],[7] In addition, the spin-flop transition takes place at an external magnetic field of 5 T, which is 3 T lower than in Ni3TeO6. The increase in Neel temperature and decrease of the critical magnetic field which may trigger a colossal ME effect are in favour of possible ME applications. More recently, Ni2CoTeO6 and NiCo2TeO6 compounds were synthesised for the first time, in the form of single crystals and ceramics.[8] The ME properties are preserved by Co-substitution. The non-centrosymmetric R3 space group is maintained at least up to RT for both Ni2CoTeO6 and NiCo2TeO6. The AFM ordering appears at TN = 54 and 49 K for Ni2CoTeO6 and NiCo2TeO6, respectively (Fig. 1). As anticipated, both compounds evidence an interplay of magnetic and dielectric properties, indicated by the dielectric anomaly seen at TN (Fig. 1). In contrast to the magnetic ordering in the previously studied Ni3TeO6 and Ni2MnTeO6, which are collinear along the c-axis, both Co-based compounds present a helical non-collinear structure with the spins in the ab-plane. The magnetic structures of both compounds are quite similar, with a small difference between the magnetic propagation vectors: k1=(0, 0, 1.299(4)) and k2=(0, 0, 1.2109(1)), for Ni2CoTeO6 and NiCo2TeO6, respectively. Hysteretic spin-flop transitions were observed near 8 T (Ni2CoTeO6) and 4 T (NiCo2TeO6), unlike Ni3TeO6 and Ni2MnTeO6, which did not show any hysteretic behavior. Below TN both compounds demonstrate numerous spin-excitations in the THz range, which are considerably influenced by external magnetic field, with clear modifications at the spin-flop transition of ∼4 T for the case of NiCo2TeO6 (Fig. 2). Six magnons strongly dependent on magnetic field are present in the THz spectra of the Co-richer compound NiCo2TeO6. Both compounds present at least one magnetic excitation simultaneously seen by Raman spectroscopy, possibly revealing the magnetoelectric character of the magnon.

**References:**

[1] H. Schmid, Ferroelectrics Vol. 162, p.317 (1994). [2] Y. Tokura, S. Shinichiro, and N. Naoto, Reports Prog. Phys., Vol. 77, p.76501 (2014). [3] M. Bibes, J.E. Villegas, and A. Barthélémy, Adv. Phys., Vol. 60, p.5 (2011). [4] Y.S. Oh, S. Artyukhin, J.J. Yang, et al., Nat Commun, Vol. 5, p.3201 (2014). [5] S. Skiadopoulou, F. Borodavka, C. Kadlec, et al., Phys. Rev. B, Vol. 95, p.184435 (2017). [6] M. Retuerto, S. Skiadopoulou, F. Borodavka, et al., Phys. Rev. B, Vol. 97, p.144418 (2018) [7] R. Mathieu, S.A. Ivanov, P. Nordblad, et al., Eur. Phys. J. B, Vol. 86, p.1 (2013). [8] S. Skiadopoulou, M. Retuerto, F. Borodavka, et al. Phys. Rev. B, Vol. 101, p.14429 (2020)

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/8dc50332dce6488ac503a54f3b083124.jpg)
Temperature dependences of magnetization (at 0.1 T) and permittivity (at 0.1 MHz) for Ni2CoTeO6 and NiCo2TeO6 ceramics, presenting AFM phase transition at 54 and 49 K, respectively. The dielectric anomalies also appear at the same temperatures for each compound.

![](https://assets.underline.io/uploads/markdown_image/1/image/22df1213d703c61618b95eaffb4cd2fa.jpg)
Magnetic field dependence of spin-wave frequencies in the THz range for NiCo2TeO6, at 5 K. The spin-flop transition is clearly seen at approximately 3 T (dotted line), by the steps on the magnon branches, as well as both the appearance of new modes and extinction of ones present in the low-field phase.

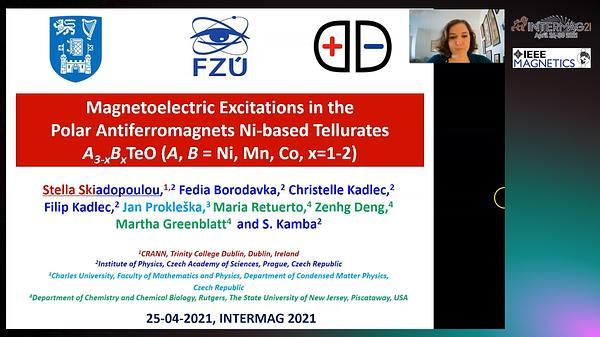

 Magnetoelectric Excitations in the Polar Antiferromagnets Ni-based Tellurates A3-xBxTeO6 (A, B = Ni, Mn, Co, x=1-2)
